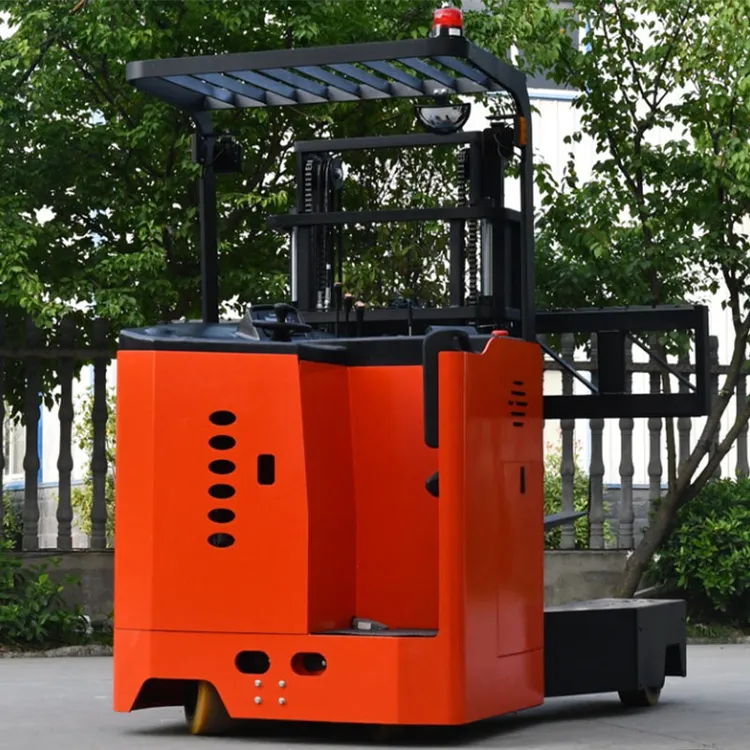

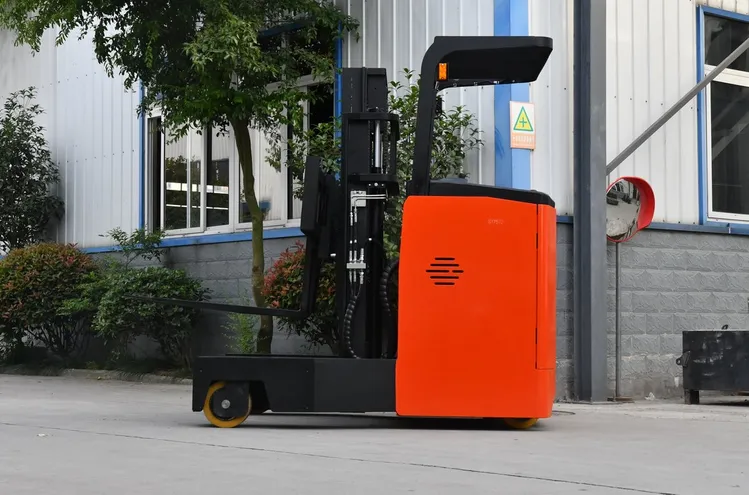

VMAX 4-directional electric reach truck forklift for sale
Four-directional forklift is special for long material handling and stacking in narrow aisle, such as metal profiles, pipes, wood and other long materials. With many driving modes, such as straight driving, side driving.
PRODUCT FEATURES
1. Four-way driving, suitable for narrow aisle stacking operation, especially for long material handling, greatly saving storage area, straight&side going can be fast switched, simple operation, rapid switching, high efficiency, fewer failures.
2.The intelligent high-definition display instrument, can display real-time information of vehicle operation, but also provide fault display, easy to troubleshoot and repair.
3. Full AC drive system, faster response, more accurate control, and thus improve the vehicle performance.
4. EPS electronic assistant steering system, more convenient and flexible operation, improve high-speed operation stability.
5. Driving Wheel Angle real-time display, easy to narrow aisle direction fine adjustment, safe and reasonable, accurate identification.
6. Large capacity special power battery, strong power, safe and reliable, convenient charging, long cycle life, low maintenance cost.
7. Side-pull type battery is suitable for multi-shift operation, with standard battery trolley for easy replacement.
8. The electromagnetic forklift truck has the characteristics of quick stopping and automatic braking.
9.Magnetic navigation/laser navigation AGV can be customized.
| 4 Direction Reach Forklift | ||||
| Model No. | CQDQ15 | CQDQ20 | CQDQ25 | |
| Capacity | kg | 1500 | 2000 | 2500 |
| Load Center | mm | 500 | 500 | 500 |
| Total Weight(with Battery) | kg | 3400 | 3500 | 3800 |
| Front Wheel | mm | 267*114 | 267*114 | 267*114 |
| Driving Wheel | mm | 382*142 | 382*142 | 382*142 |
| Balance Wheel | mm | 180*76 | 180*76 | 180*76 |
| Mast Lowered Height | mm | 2100 | 2110 | 2620 |
| Freel Lift Height | mm | / | 1500 | 1980 |
| Lifting Height | mm | 3000 | 4500 | 6000 |
| Max. Height when Ligting | mm | 3945 | 5465 | 6965 |
| Height of overhead Guards | mm | 2280 | 2280 | 2280 |
| Fork Height When Mast Closed | mm | 35 | 40 | 45 |
| Mast Tilt Angle Forward/Backward | ° | 3/5 | 3/5 | 3/5 |
| Overall Length(When Fork Back) | mm | 2505 | 2585 | 2615 |
| Vehicle Body Overall Length(Without Fork) | mm | 2046 | 2146 | 2246 |
| Overall Width | mm | 1680 | 1680 | 1680 |
| Fork Size | s/e/l(mm) | 35/100/1070 | 40/122/1070 | 45/125/1070 |
| Fork Spread(Customizable) | mm | 210-700 | 260-700 | 260-700 |
| Min. Groud Clearence | mm | 80 | 80 | 80 |
| Aisle Width for Pallet 1000*1200 Crossaway | Ast(mm) | 2700 | 2750 | 2855 |
| Min. Truning Radius | Wa(mm) | 1905 | 2000 | 2105 |
| Max. Travel Speed(Unload/Load) | km/h | 8/7 | 8/7 | 8/7 |
| Lifting Speed(Unload/Load) | m/s | 0.250/0.240 | 0.240/0.220 | 0.240/0.220 |
| Decnet Speed(Unload/Load) | m/s | 0.240/0.260 | 0.240/0.260 | 0.240/0.260 |
| Max. Climbing Ability (Unload/Load) | % | ≤10 | ≤10 | ≤10 |
| Battery Capacity | V/Ah | 48V300Ah | 48V400Ah | 48V400Ah |
Anhui Vmax Heavy lndustry Co, LTD. (hereinafter refered to as "the Company") is located in jin 'an Economic Development Zone, Lu 'anCity, Anhui Province. ln 2017, the Company was successfully isted in Bejing Stock Exchange with the stock code 871332. The Companyofers a complete product range of material handling equipment, 1.0-18.0t internal combustion forklift, 10-12.0t electric counterbalanceforkift, pallet truck,stacker, of-road forklift, etc. The Company also provides customers with intelligent ogistics overall solutions, as well asindustrial vehicle aftermarket business which includes spare parts sales, repairing, leasing, remanufacturing, and talent training. in responseto the national "Carbon Peak,Carbon Neutral" and carbon reduction 3060 target" and other major strategies, the (ompany has beeractively committed to the new energy strategy, focusing on the development of various types of lithium and hydrogen fuel cells and otheinew energy products, to achieve the strategic transformation and upgrading of products and high-guality development goals.
1. What Certificate do you have?
VMAX workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate and SGS.
2. Can you customize and design as the clients' requirement?
VMAX will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
Production Time: Within 30-45 days after order confirmed
