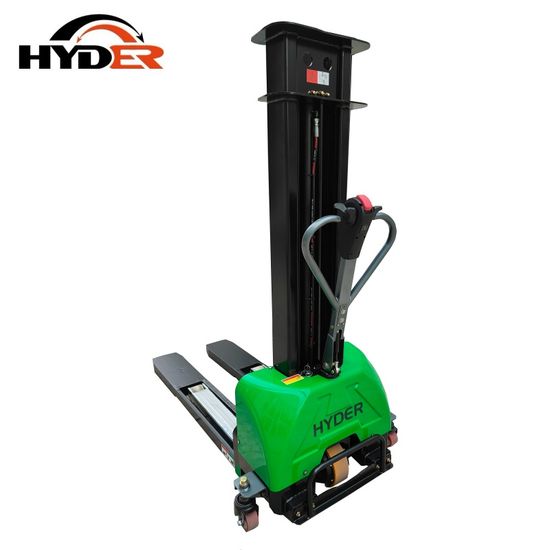

Full Electric 500kg 1300mm Lifting Height Self Loading Pallet Stacker
A self-lifting stacker is a type of material handling equipment designed for lifting, moving and stacking materials in a warehouse or manufacturing facility. It is an electric-powered industrial lift truck that has a lifting mechanism integrated into its mast, allowing it to raise and lower heavy loads with ease.
The self-lifting stacker has a compact design, which makes it ideal for use in confined areas with limited space. It is maneuverable, making it easy to navigate in and around equipment and obstacles.
The lifting mechanism on a self-lifting stacker can be either manual or electrically powered. The manual lift stackers are usually hydraulically operated, and the electric ones use a battery-operated lifting mechanism. The electric self-lifting stacker has an added advantage of being able to lift heavier loads to higher heights quickly and efficiently.
Self-lifting stackers are most commonly used in warehouses and factories to lift and move heavy loads of goods and materials. They are also useful in businesses that require routine maintenance tasks such as changing light bulbs, cleaning gutters, and replacing HVAC equipment.
In summary, the self-lifting stacker is an essential piece of equipment in material handling operations. It improves operational efficiency by reducing manual labor, speeds up loading and unloading processes, and enhances overall productivity.
| Full-Electric Pallet Stacker HSLF1000 | ||||||
| Characteristic | 1.1 | Model | No. | Unit | HSLF500 | HSLF1000 |
| 1.2 | Motor | Fully Electric | Fully Electric | |||
| 1.3 | Rated capacity | Q | kg | 500 | 1000 | |
| 1.4 | Load center | C | mm | 400 | 400 | |
| 1.5 | Fork distance | W3 | mm | 565 | 565 | |
| 1.6 | Fork length | L2 | mm | 1295 | 1295 | |
| 1.7 | Operate type | Self propelled | Self propelled | |||
| Wheels | 2.1 | Wheel(front/ back) | PU/ Nylon | PU/ Nylon | ||
| 2.2 | Drive wheel/ bearing wheel/Middle wheel No. | pcs | 1/4/2 | 1/4/2 | ||
| 2.3 | Drive wheel size | mm | Φ250×74 | Φ250×74 | ||
| 2.4 | Bearing wheel size | mm | Φ70×60 | Φ70×60 | ||
| 2.5 | Middle wheel size | mm | Φ65×30 | Φ65×30 | ||
| Size | 3.1 | Fork lift height | H | mm | 800/1000/1300 | 800/1000/1300 |
| 3.2 | Total cost when fork lowered | H1 | mm | 1166/1366/1666 | 1166/1366/1666 | |
| 3.3 | Total cost when fork lifted | H2 | mm | 2344/2544/2844 | 2344/2544/2844 | |
| 3.4 | Fork initial height | H3 | mm | 81 | 81 | |
| 1.5 | Wheel base | L0 | mm | 974 | 974 | |
| 3.6 | Total length | L1 | mm | 1650 | 1750/1650 | |
| 3.7 | Support leg length | L3 | mm | 771 | 771 | |
| 3.8 | Middle wheel position | L4 | mm | 177 | 177 | |
| 3.9 | Safety position when loading on forklift | L5 | mm | ≤130 | ≤130 | |
| 3.1 | Truck height | L6 | mm | 409 | 409 | |
| 3.11 | Truck width | W | mm | 658 | 658 | |
| 3.12 | Front wheel base | W1 | mm | 518 | 398/518 | |
| 3.13 | Fork width | B | mm | 253 | 193/253 | |
| 3.14 | Min. turning radius | Wa | mm | 1173 | 1173 | |
| Feature | 4.1 | Max driving wheel(turtle/ full load) | km/h | 0.5/3.0 | 0.5/3.0 | |
| 4.2 | Gradeability(full load/ unload) | % | 5/20 | 5/20 | ||
| Electric | 5.1 | Drive motor | kW | DC 0.6 | DC 0.6 | |
| 5.2 | Lifting motor | kW | DC 1.6 | DC 1.6 | ||
| 5.3 | Battery voltage | V | 48(Lithium) | 48(Lithium) | ||
| 5.4 | Battery capacity | Ah | 15 | 15 | ||
| Weight | 6.1 | Battery weight | kg | 5 | 5 | |
| 6.2 | Truck(Battery included) | kg | 290/300/320 | 368/382 | ||
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q 1 .what the lifting height ?
A: The lifting height usually takes 800mm/1000mm/1300mm , max to 1600mm
Q2.Do you have the capacity at 2 ton, lifting height at 2 .8 M ?
A: No, the reasonable lifting height is below 1.6m, If over that , there some problems :
1. Overloading: If the stacker is overloaded with excessive weight, it will lead to operational inefficiencies and potentially damage the equipment.
2.Excessive lifting height and the need for additional counterweights: Increasing the lifting height should adding more counterweights to maintain stability, which, in turn, increases the overall weight of the equipment. This can make the operation cumbersome and less convenient.
3.Safety risks during loading: If the lifting height is too high, the center of gravity of the cargo can rise during the loading process, making it more prone to accidents. Particularly, when there's a manual pushing process during loading, the likelihood of the stacker tipping over may increase.
4.Unsuitable for specific working conditions: If the stacker's extension height is too high, it might not fit inside the cargo compartment of box-type trucks.
5.The design principle of self lifting stacker is focused on ease of operation, portability, compactness, and efficiency.
If additional weight or excessive lifting height is added, it would contradict the original design intent and result in counterproductive consequences, including wasted functionality, inconvenient operation, and misalignment with the intended purpose.
6.Costs have increased across the board, resulting in a twofold increase in expenses. The cost-effectiveness is low, and from a product marketing perspective, it does not meet the company's profit requirements."
