Introduction of Isolated Chemical Oxygen self rescuer
Isolated Chemical Oxygen Self-rescuer is individual breathing protection equipment which is made based on the principle of oxygen generation by chemicals. Miners use them to self-rescue when it is oxygen-poor or toxic gas threats their life in coal mine. It can be also applied by first aiders or workers from other enterprises
or public institutions who works under the condition of oxygen deficit or toxic gas.

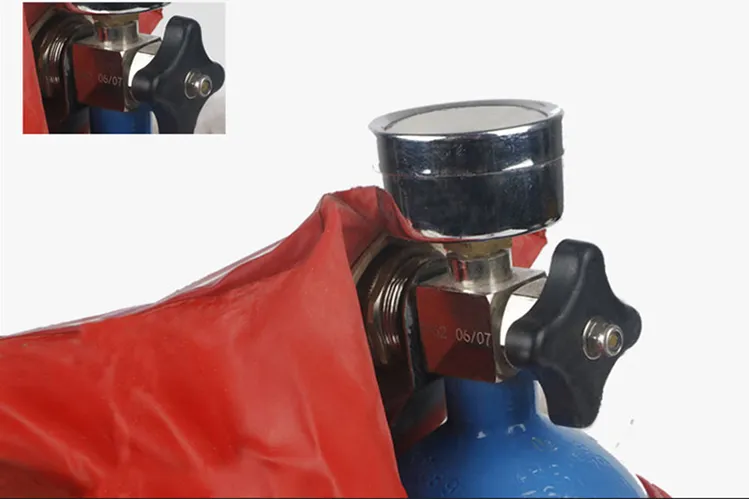

Introduction of ZYX60 Mining Self Contained compressed oxygen Self Rescuer
ZYX60 Mining Self Contained Self Rescuer is in line with national standards of the miners and the ambulance crew carry reusable ambulance products, reasonable structure, reliable performance, easy to use.
Used for person in CO, CH4, and other toxic and harmful gases and anoxic environment escape or be rescued use.which is a kind of isolation type self-rescuer and used recycle.
zmwm21
| Model | ZYX30 | ZYX45 | ZYX60 | ZYX120 |
| Protect time | ≥30min | ≥40min | ≥60min | ≥120min |
| Capacity of oxygen bottle | 0.3L | 0.38L | 0.4L | 1.0L |
| Oxygen storage capacity | 56L | 80L | 140L | 240L |
| Inspiratory oxygen concentration | 25% | 25% | 25% | 25% |
| Inhaled carbon dioxide concentration | 2% | 2% | 2% | 2% |
| Quantitative supply of oxygen | 1.2L/min | 1.2L/min | 1.2L/min | 1.2L/min |
| Manual supply of oxygen supply | 60L/min | 60L/min | 60L/min | 60L/min |
| Cylinder filling pressure | 20Mpa | 20Mpa | 20Mpa | 20Mpa |
| Period of validity | 3-5 years | 3-5 years | 3-5 years | 3-5 years |
| Outline dimensions | 210*167*80mm | 225*177*90mm | 235*180*92mm | 285*205*100mm |
