ZDY1250S Hydraulic Mine Drilling Rig Machine
Online
1 Year
CE, ISO 9001:2000
New
DC Motor
<100mm
250-300m
Diamond Bit
Rotary
Zdy1250s
1250n.M
300/200/100m
42/50/63.5mm
0~+-90
50-250r/Min
36kN
52kN
600mm
1000mm
2100mm
22kw
1350kg
800kg
ZHONGMEI
Wooden
1350kg
Shandong China
Product Description
Introduction of Hydraulic Mine Drilling Rig Machine
Hydraulic mine drilling rig machines are mainly used for water exploration, gas drainage, dust-proof water injection, various engineering holes and geological structure holes at different angles in the mine, and can also be used for mine exploration and core taking. Also for carbide (diamond) drill bit rotary drilling, and be matched with different drill pipe and drill bit to adapt to different drilling requirements.

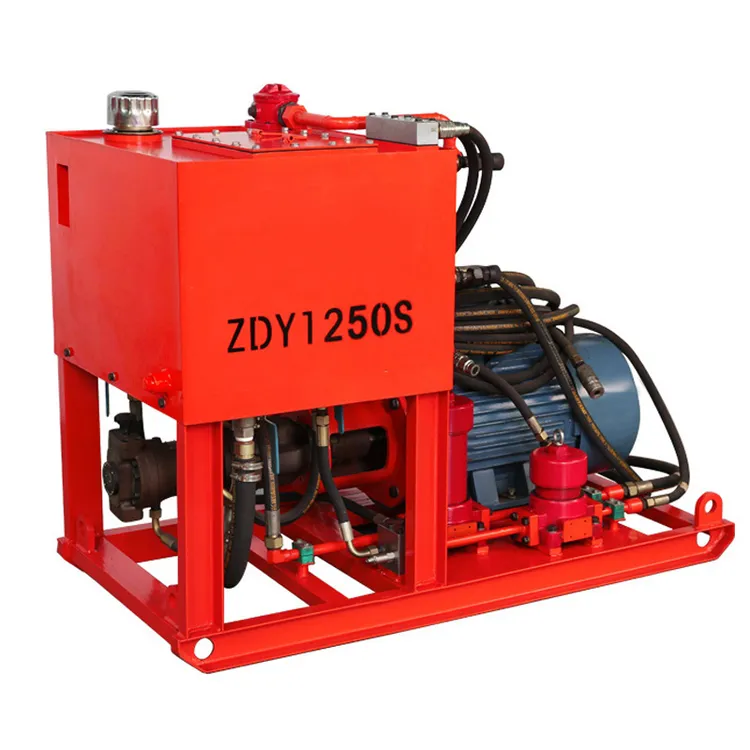

The whole machine is composed of four parts: main engine , pump station, control console and crawler body. It adopts double pump system.
ZDY1250S Mining Full Hydraulic Tunnel Drilling Rig Machine Technical Characteristics
1. Power head full hydraulic combined drilling rig, split structure, convenient for underground transportation, displacement and installation.2. The drilling rig is composed of hydraulic pump station, power head, frame, control console, column support and other components. It is connected with high-pressure oil pipe during operation, and is safe to operate away from the orifice.
3, the hydraulic system design is mature, simple, reliable, easy to master, easy to analyze and solve when a fault occurs.
4, double column or four column support, one anchor can be drilled porous, light weight, high efficiency, strong applicability
zmwm21
| Item | unit | ZDY660 | ZDY1250S | ZDY1900S | ZDY3200S | ZDY4000S |
| Rated torque | N.m | 660 | 1250N.m | 1900N.m | 3200N.m | 4000N.m |
| Drilling depth | m | 150/100 | 300/200/100M | 300/200/100M | 300/200/100M | 350/200/100 |
| Drill pipe diameter | mm | 42/50 | 42/50/63.5 | 63.5/73 | 63.5/73 | 63.5/73 |
| Drilling angle | ° | ±90° | 0~±90° | 0~±90° | 0~±90° | 0~±90° |
| Rated Rotating speed | r/min | 50-300 | 50-250r/min | 50~270r/min | 50~210r/min | 50~280r/min |
| Pushing ability | KN | 27 | 36KN | 77KN | 77KN | 100KN |
| Pulling ability | KN | 40 | 52KN | 112KN | 112KN | 150KN |
| Push/Pull stroke | mm | 650 | 600 | 600 | 800 | 800 |
| Min. working height | mm | 1000 | 1000 | 1000 | 1000 | 1100 |
| Max. working height | mm | 2100 | 2100 | 2100 | 2100 | 2100 |
| Power | KW | 15 | 22KW | 37KW | 37KW|45KW | 55KW |
| Whole machinery weight | kg | 1100kg | 1350kg | 2100kg | 2200KG | 2500kg |
| Drill machine weight | kg | 600kg | 800kg | 1250kg | 1200KG | 1500kg |
