XR130E
Video Technical Support, Local After-Sale Service
1 Year
CE, RoHS, ISO 9001:2000, ISO 9001:2008
Used
>300mm
Multi-Function
Rotary
Crawler
150 Kw
7-33r/Min
150kN.M
2.1km/H
XCMG
Comply with Export Packaging Requirements
13150*2960*3140 mm
Jiangsu, China
84295100
Product Description

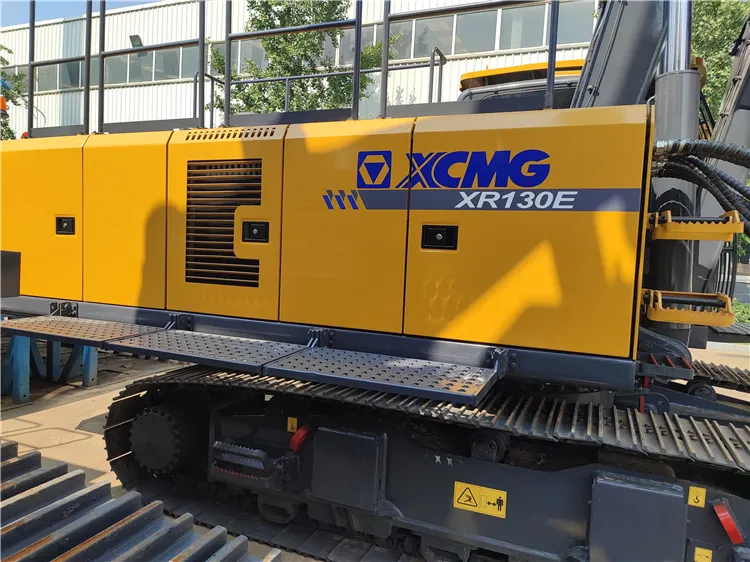

XCMG Official XR130E 2022 Year Used Crawler Rotary Drilling Rig
As a multi-functional machine, XR130E can realize the quick switching of functions such as crowd cylinder, crowd winch to meet more different construction needs.
It adopts Isuzu electronically controlled turbocharged engine with lower fuel consumption and convenient service.
The rotary drive and main winch performance is increased by 20%, so the work efficiency is much higher.
The main and auxiliary winches both adopt the single-row rope technology, the service life of wire rope is 2~4 times longer than that of multi-layer rope, which makes the cost lower.
The double jib parallelogram luffing mechanism has a large support angle and al6% increase in support range, which makes the operation more stable.
The hydraulic system adopts negative flow control technology which has a fast response and good handling performance.
High-power temperature-controlled independent hydraulic oil cooler can meet the construction requirements of high temperature areas and adjust the fan speed according to temperature changes to achieve energy saving.
It adopts Isuzu electronically controlled turbocharged engine with lower fuel consumption and convenient service.
The rotary drive and main winch performance is increased by 20%, so the work efficiency is much higher.
The main and auxiliary winches both adopt the single-row rope technology, the service life of wire rope is 2~4 times longer than that of multi-layer rope, which makes the cost lower.
The double jib parallelogram luffing mechanism has a large support angle and al6% increase in support range, which makes the operation more stable.
The hydraulic system adopts negative flow control technology which has a fast response and good handling performance.
High-power temperature-controlled independent hydraulic oil cooler can meet the construction requirements of high temperature areas and adjust the fan speed according to temperature changes to achieve energy saving.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Description | Unit | Parameter value | |
Max. drilling diameter | mm | 1500 | |
Max. drilling depth | m | 56 | |
Allowable luffing scope (from center of drill rod to slewing center) | mm | 3250~3650 | |
Drilling rig dimension in working condition (L × W × H) | mm | 7550×4200×19040 | |
Drilling rig dimension in transport condition (L × W × H) | mm | 13150×2960×3140 | |
Weight of overall unit (standard configuration, excluding drilling tool) | t | 49 | |
Engine | Model | CUMMINS QSB7 | |
Rated power/speed | kW | 150/(2050r/min) | |
Max. working pressure of hydraulic system | MPa | 35 | |
Rotary drive | Max. torque | kN •m | 150 |
Rotational speed | r/min | 7~33 | |
Crowd cylinder | Max. Pushing force | kN | 120 |
Max. Pulling force | kN | 160 | |
Max.stroke | mm | 3500 | |
Main winch | Max.pulling force | kN | 160 |
Max. single-rope speed | m/min | 72 | |
Diameter of the steel wire rope | mm | 26 | |
Auxiliary winch | Max.pulling force | kN | 50 |
Max. single-rope speed | m/min | 60 | |
Diameter of the steel wire rope | mm | 16 | |
Rotary table slewing angle | ° | 360 | |
Traveling | Max. traveling speed of the overall unit | km/h | 2.1 |
Max. climbable gradient of the overall unit | % | 40 | |
Crawler | Width of crawler plate | mm | 700 |
External width of crawler (min.-max.) | mm | 2960~4200 | |
Center distance between two longitudinal wheels of crawler | mm | 4310 | |
Average ground pressure | kPa | 83 | |
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
