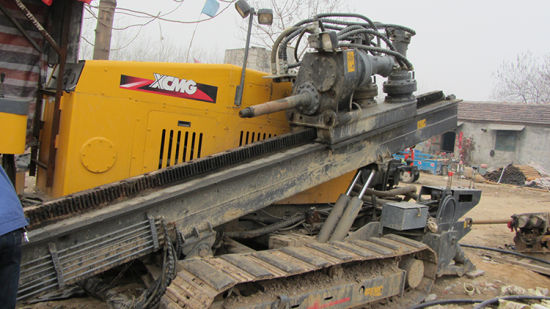

XCMG XZ400 Used HDD Machine Mini Horizontal Directional Drilling Rig for sale
XZ Series Horizontal Directional Drills are mainly used in the trenchless piping construction and replacement of the underground pipe. The XZ Series Horizontal Directional Drills have the advantages of advanced performance, high efficiency and comfortable operation. Many key components adopt international famous products to guarantee the quality. They are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry.
* Pluralities of advanced control technologies are adopted, including the PLC control, electro-hydraulic proportion control, load sensitive control, etc.
* The pipe automatic disassembly and assembly device can improve the working efficiency, relieves the labor intensity and manual error operation of the operators, and reduces the construction personnel and the construction cost.
* Automatic anchor: The down and the up of the anchor is driven by hydraulics. The anchor is great in force and is easy and convenient to operate.
* The dual-speed spindle drive is operated with low speed when drilling and dragging back to ensure smooth construction, and can speed up to slide with 2 times of speed to reduce the auxiliary time and improve the working efficiency when returning and disassembling the drilling rod with empty loads.
* The engine has the turbine torque increment characteristic, which can instantly increase the power to ensure the drilling power when coming across the complex geology.
| Engine | Engine Brand | CUMMINS | |
| Engine Type | QSC8.3-C240 | ||
| Rate Power | kW | 179 | |
Thrust-Pull | Max Thrust-Pull Force | kN | 400 |
| Max Thrust-Pull Speed | m/min | 28 | |
Rotation | Torque | N.m | 14000 |
| Max Spindle Speed | r/min | 104 | |
Mud Pump | Max Flow Rate | L/min | 450 |
| Max Pressure | Mpa | 8 | |
| Pipe | mm x m | 83x3 | |
| Max Inclination Angle | 0 | 23 | |
| Max backreamer diameter | mm | 900 | |
| Weight | t | 11.5 | |
| Dimention | mm | 7080x2450x2450 | |
| Optional | 1. Single automatic anchor 2. Dual automatic anchor | ||
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
