BZC-200
CE, RoHS, ISO 9001:2000, ISO 9001:2008
New
DC Motor
200-250mm
150-200m
Drag Bit
Rotary

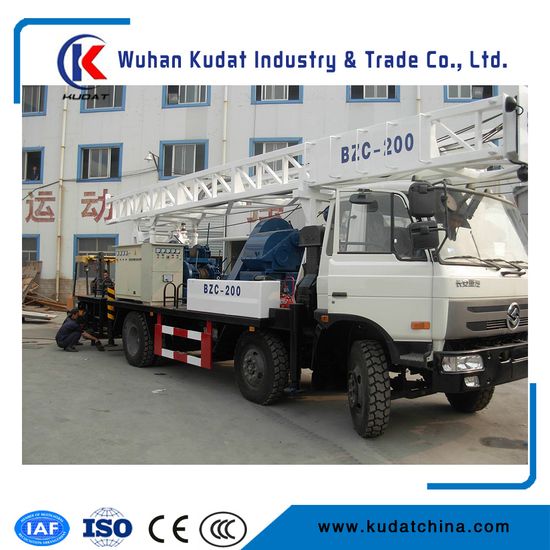

Truck Mounted Water Well Drilling Machine
Petroleum Drilling and Production Equipment
Water Well
Diesel
200
500
6.7; 10; 17; 43; 63; 108
14.5; 9.7; 5.7; 2.3; 1.5; 0.9
180
10200
KUDAT
Naked Packing
CE
China
8430412900
Product Description
Technical parameter
Drilling depth(M) 200
Drilling diameter(mm) 500
Speed of turntable(r/min) 6.7; 10; 17; 43; 63; 108(reverse)
Torque of turntable(KN. M) 14.5; 9.7; 5.7; 2.3; 1.5; 0.9(reverse)
Single rope lifting capacity of mian windlass(KN) 30
The capacity of main windlass(KN) 180
Single rope lifting capacity of hydraulic windlass(KN) 30
The capacity of hydraulic windlass(KN) 120
The lifting capacity of hook(KN) 180
Bearing capacity of mast (KN) 180
The height of mast (mm) 10200
Bearing capacity (t) 25
Pipe Kelly bar(mm) 108× 108× 6000
Assistant pipe (mm) diameter89× 10× 4500
BW850/2A
Plunger pump
Diameter of cylinder (mm) 150
Stroke of piston (mm) 180
Theory of flow (L / min) 600 850
Rated pressure (MPA) 3 2
Pounding times (min-1) 58 82
Diameter of suction tube (mm) 127
Diameter of drain pipe (mm) 64
Input speed (r / min) 470
Input power (kw) 40
Overall dimensions (mm) 2000*1030*1400
Weight (t) 1.5
Truck chassis Drive form 6× 4
Engine Model YC6J180-33 (Europe II emission standard)
Rated power(KW) 132
Speed (r/min) 2500
Size (L*W*H)(mm) 100320× 2400× 3200
Electric generator Rated power (kw) 100
Rated voltage(v) 400
Speed (r/min) 1500
Frequency(Hz) 50
The highest speed(Km/h) 75
Weight (kg) 17340
Transport size(L*W*H)(mm) 10252*2400*3726
Working size(L*W*H)(mm) 10032*3570*11459
Drilling depth(M) 200
Drilling diameter(mm) 500
Speed of turntable(r/min) 6.7; 10; 17; 43; 63; 108(reverse)
Torque of turntable(KN. M) 14.5; 9.7; 5.7; 2.3; 1.5; 0.9(reverse)
Single rope lifting capacity of mian windlass(KN) 30
The capacity of main windlass(KN) 180
Single rope lifting capacity of hydraulic windlass(KN) 30
The capacity of hydraulic windlass(KN) 120
The lifting capacity of hook(KN) 180
Bearing capacity of mast (KN) 180
The height of mast (mm) 10200
Bearing capacity (t) 25
Pipe Kelly bar(mm) 108× 108× 6000
Assistant pipe (mm) diameter89× 10× 4500
BW850/2A
Plunger pump
Diameter of cylinder (mm) 150
Stroke of piston (mm) 180
Theory of flow (L / min) 600 850
Rated pressure (MPA) 3 2
Pounding times (min-1) 58 82
Diameter of suction tube (mm) 127
Diameter of drain pipe (mm) 64
Input speed (r / min) 470
Input power (kw) 40
Overall dimensions (mm) 2000*1030*1400
Weight (t) 1.5
Truck chassis Drive form 6× 4
Engine Model YC6J180-33 (Europe II emission standard)
Rated power(KW) 132
Speed (r/min) 2500
Size (L*W*H)(mm) 100320× 2400× 3200
Electric generator Rated power (kw) 100
Rated voltage(v) 400
Speed (r/min) 1500
Frequency(Hz) 50
The highest speed(Km/h) 75
Weight (kg) 17340
Transport size(L*W*H)(mm) 10252*2400*3726
Working size(L*W*H)(mm) 10032*3570*11459
| Technical parameter | |||
| Drilling depth(M) | 200 | ||
| Drilling diameter(mm) | 500 | ||
| Speed of turntable(r/min) | 6.7;10;17;43;63;108(reverse) | ||
| Torque of turntable(KN.m) | 14.5;9.7;5.7;2.3;1.5;0.9(reverse) | ||
| Single rope lifting capacity of mian windlass(KN) | 30 | ||
| The capacity of main windlass(KN) | 180 | ||
| Single rope lifting capacity of hydraulic windlass(KN) | 30 | ||
| The capacity of hydraulic windlass(KN) | 120 | ||
| The lifting capacity of hook(KN) | 180 | ||
| Bearing capacity of mast (KN) | 180 | ||
| The height of mast (mm) | 10200 | ||
| Bearing capacity (t) | 25 | ||
| Pipe | Kelly bar(mm) | 108×108×6000 | |
| Assistant pipe (mm) | 89×10×4500 | ||
| BW850/2A plunger pump | Diameter of cylinder (mm) | 150 | |
| Stroke of piston (mm) | 180 | ||
| Theory of flow (L / min) | 600 850 | ||
| Rated pressure (Mpa) | 3 2 | ||
| Pounding times (min -1 ) | 58 82 | ||
| Diameter of suction tube (mm) | 127 | ||
| Diameter of drain pipe (mm) | 64 | ||
| Input speed (r / min) | 470 | ||
| Input power (kw) | 40 | ||
| Overall dimensions (mm) | 2000*1030*1400 | ||
| Weight (t) | 1.5 | ||
| Truck chassis | Drive form | 6×4 | |
| Engine | Model | YC6J180-33 (Europe II emission standard) | |
| Rated power(KW) | 132 | ||
| Speed (r/min) | 2500 | ||
| Size (L*W*H)(mm) | 100320×2400×3200 | ||
| Electric generator | Rated power (kw) | 100 | |
| Rated voltage(v) | 400 | ||
| Speed (r/min) | 1500 | ||
| Frequency(Hz) | 50 | ||
| The highest speed (Km/h) | 75 | ||
| Weight (kg) | 17340 | ||
| Transport size(L*W*H)(mm) | 10252*2400*3726 | ||
| Working size(L*W*H)(mm) | 10032*3570*11459 | ||
