HNFC160-1000
After-Sale Support
1year
Adjustable
Powered Pallet Truck
Diesel Engine
10T - 18T
Diesel
>500mm
>5000mm
New
Customized
16000kg
25000kg
7m Mast Stage Optional
28300kg
KUDAT
Bulk
CE
China
Product Description
Main specification:

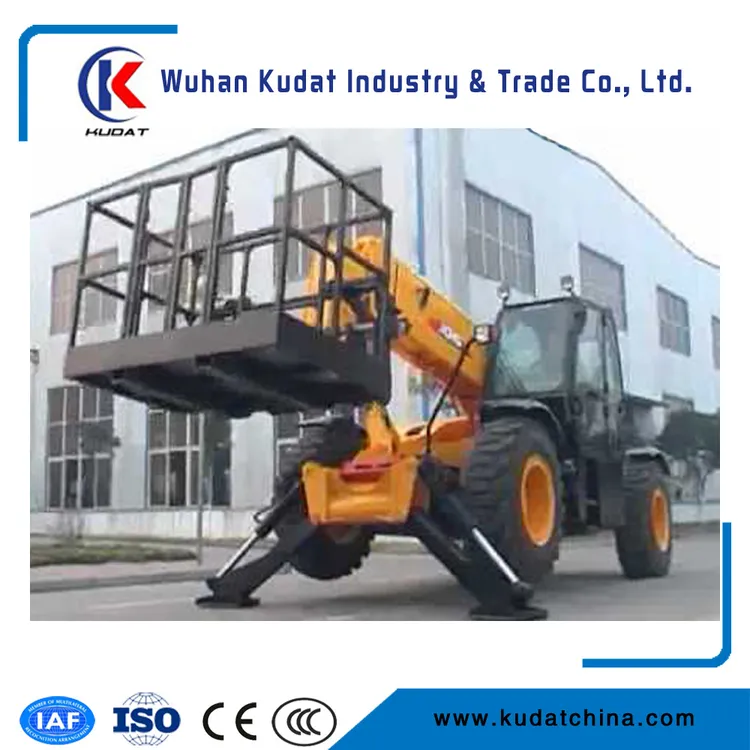

Telescopic Forklift is a kind of Multi-functional engineering machinery .It can be used for lift and carry, with good stability and efficiency. It has compact frame, flexible operation , sensitive lift, automatic adjustment ,high carrying capacity.
Adopting the Cummins engine which is powerful and with low maintenance. Reach Europe III(EPA Tier3) exhaustion standard, big torque force.
Equipped with power transmission, compact structure, high rigidity.
With articulated frame, small turning radius.
wheel drive, steering by front wheel, and so on.
The drivers cabin is furnished with the system of the air conditioner, It is safe and comfortable, and the visual field is broad. It adopts shock attenuation, which improved the comfortableness of the operating
Fully sealed wet multi-disc brakes in the wheel heads are protected from environmental influences.
Multi-function instrument can be chosen It is a kind of machinery which is suitable for lifting and carrying in narrow ground.
Adopting the Cummins engine which is powerful and with low maintenance. Reach Europe III(EPA Tier3) exhaustion standard, big torque force.
Equipped with power transmission, compact structure, high rigidity.
With articulated frame, small turning radius.
wheel drive, steering by front wheel, and so on.
The drivers cabin is furnished with the system of the air conditioner, It is safe and comfortable, and the visual field is broad. It adopts shock attenuation, which improved the comfortableness of the operating
Fully sealed wet multi-disc brakes in the wheel heads are protected from environmental influences.
Multi-function instrument can be chosen It is a kind of machinery which is suitable for lifting and carrying in narrow ground.
| POS | ITEM DESCRIPTION | UNIT | HNFC160-1000 | |
| Characteristics | 1.1 | Lifting Weight/Rated Capacity | Q(t) | 16 |
| 1.2 | Load Center | c(mm) | 900 | |
| 1.4 | Wheelbase | y(mm) | 3900 | |
| Weight | 2.1 | Operating Weight | kg | 28300 |
| Chassis | 3.1 | Tire Type Front | 12.00x24/18PR | |
| 3.2 | Tire Type Rear | 12.00x20/18PR | ||
| 3.3 | Quantity of Wheels | 4×/2 | ||
| 3.4 | Tread(Front) | b10(mm) | 2060 | |
| 3.5 | Tread(Rear) | b11(mm) | 2330 | |
| Dimension | 4.1 | Tilting Angles | ° | 6°/12° |
| 4.2 | Front-wheel Overhead | mm | 3625 | |
| 4.3 | Standard Lifting Height | h3(mm) | 3500 | |
| 4.4 | Max. Working Lifting Height | h4(mm) | 5375 | |
| 4.5 | Overall Length (with 1800mmfork) | l1(mm) | 8370 | |
| 4.6 | Overall Length(without fork) | l2(mm) | 6570 | |
| 4.7 | Overall Width | b1/b2(mm) | 2750 | |
| 4.8 | Fork Size | s/e/l(mm) | 110x220x1800 | |
| 4.9 | Load-backrest Width | b3(mm) | 2750 | |
| 4.10 | Min.Ground Clearance (mast full load) | m1(mm) | 265 | |
| 4.11 | Min.Ground Clearance(Supporting Leg) | m2(mm) | 450 | |
| 4.12 | Min. Turn Radius | Wa(mm) | 7300 | |
| Performance | 5.1 | Driving Speed(with/without load) | km/h | 23/26 |
| 5.2 | Max.Lifting Speed (with/without load) | m/s | 270/300 | |
| 5.3 | Grade ability(with/without load) | % | 15/20 | |
| 5.4 | Drive Brake | Caliper Disc Brake | ||
| Engine | 7.1 | Model | YC6J175-T302 | |
| 7.2 | Power | KW | 129 | |
| 7.3 | Rotation Speed | rpm | 2200 | |
| 7.4 | Cylinder Capacity | cm3 | 6 | |
| Other | 8.1 | Driving Control Style | Hydraulic Torque Converter | |
| Jib | 9.1 | Weight | Kg | 17700 |
| 9.2 | Control Style | Wireless Remote Control | ||
| 9.3 | Supporting Leg Control Style | Manual Valve | ||
| 9.4 | Main Outrigger Longitudinal span | mm | 6276 | |
| 9.5 | Back Outrigger Rotary Center | mm | 1538 | |
| 9.6 | Distance from Additional Outrigger to Rotary Center | mm | 4178 | |
| 9.7 | Max. Lifting Height | mm | 17300 | |
| 9.8 | Additional Outrigger Extension/Retraction Time | S | 31/18 | |
| 9.9 | Main Outrigger Extension/Retraction Time) | S | 45/24 | |
| 9.10 | Back Outrigger Extension/Retraction Time) | S | 16/8 | |
| 9.11 | Additional Outrigger Supporting/Retraction Time | S | 216/112 | |
| 9.12 | Main Outrigger Supporting/Retraction Time | S | 237/128 | |
| 9.13 | Back Outrigger Supporting/Retraction Time | S | 38/20 | |
| 9.14 | Hook Up/Down(low speed) | S | Hook Fixed | |
| 9.15 | Hook Up/Down(High speed)) | S | Hook Fixed | |
| 9.16 | Hook Amplitude Up/Down(low speed) | S | 87/45 | |
| 9.17 | Hook Amplitude Up/Down(high speed) | S | 63/37 | |
| 9.18 | Left /Right Turning(low speed) | S | 132/132 | |
| 9.19 | Left /Right Turning(high speed) | S | 108/108 | |
| 9.20 | Boom Extension/Retraction (low speed) | S | 235/126 | |
| 9.21 | Boom Extension/Retraction (high speed) | S | 278/145 | |
