RCD-350
1-Year
ISO 9001:2000
New
Diesel Engine
800-4000mm
350m
RC Drill Bit
Rotary
Vehicle-Mounted Type
Diesel
Water Well and Coal Drilling
Overseas Engineer Available
Bohwa
Nude Packing
9000x2400x3300mm
China
Product Description
Truck Chassis Hydraulic Reverse Circulation Drill Machine RC Drilling Rig
SPECIFICATIONS FOR RCD-350 REVERSE CIRCULATION DRILLING RIG | |||
Main performance parameters | Drill Hole depth | m | 350 |
The Hole diameter | mm | 800-4000 | |
Spindle speed | r/min | 5-7.5-15-22 | |
Main performance parameters | Spindle power | Kw | 11*2 |
The Spindle Torque | N.m | 42000 | |
Hoist Lifting force | T | 36 | |
Mud Pump | Traffic | m³/h | 960 |
Power | Kw | 45 | |
Generating Set | Rated Voltage | V | 380 |
Rated Current | A | 180 | |
Rated Speed | r/min | 1500 | |
Rated Power | Kw | 120 | |

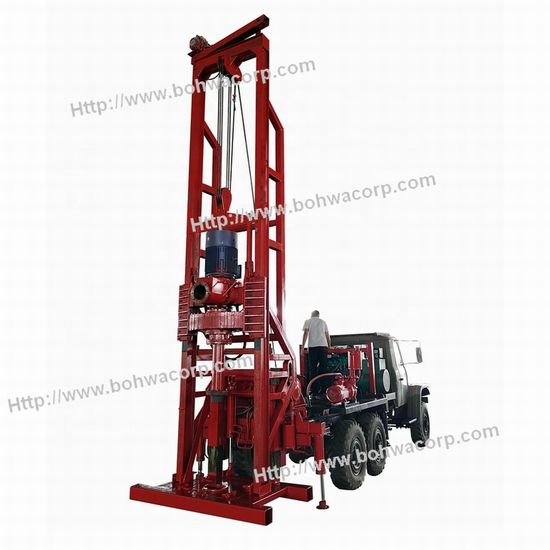

. Main Photos
Packing & Delivery
Packaging | |
Size | 900 (L) * 240 (W) * 330 (D) |
Weight | 13 T |
Packaging Details | Nude Packing |
