RT802, RT1002, RT12802
1 Year
1 Year
Crawler Tractor
Farm Tractor, Garden Tractor, Lawn Tractor
CE, CCC
4WD
Euro III
Gas / Diesel
6-10 Years
Small
Red
New
500
2960
Inline, Water-Cooled, Four Stroke, Turbocharged in
2300
Planetary Differential Steering
Single-Action Clutch
12/12
Mechanical Meshing Sleeve
1300
400*90*62
24.1
Split Type (Strong Lift and Strong Drop)
II Suspension
8
1000/720
EUROSTAR. OEM
SKD/CBU
4075*1820*2450 (Top of safety rack)
China
8701300010
Product Description
Made in China, Sold to the world
Versatile, Easy, Affordable, Powerful, Reliable
Distinguish Eurostar from other Chinese Brands.
Versatile, Easy, Affordable, Powerful, Reliable
Distinguish Eurostar from other Chinese Brands.
80-120hp Crawler tractor mini tractor from tractor manufacture
Crawler Tractor Product Description
Crawler tractor is a kind of easy-to-use and widely-used agricultural machinery. 3 + 3 walking gearbox. Only one main machine is needed to realize the functions of rotary ploughing, furrowing, weeding,backfilling, ridge, bulldozer and transportation platform by changing different attachments, greatly improving the use of the field machine Rate, if farmers want to complete a variety of operations, they don not need to buy new machines, so their cost input has been reduced.
Main sales territory: South America, Africa, southeast Asia and Australia.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, spraying machine and rotary cultivator.
Crawler Tractor Product Selling Points
1. Use high quality engine, energy conservation and environmental protection;
2. The single-action clutch, flexible manipulation of light;
3. A three-stage automatic gearbox, realize without soil under the condition of operation, reasonable matching gear, economical, convenient and reliable control;
4. Welding the main frame and the vehicle frame, high strength, suitable for light load plough homework;
5. High driving wheel, triangle arrangement to gap is high, suitable for paddy field;
6. Type of luggage frame, balance the pallet, roller life is long, the machine good riding comfort, small vibration;
7. Rubber crawler walking system, suitable for all the surface road;
8. Class II suspension system,can be equipped with rotary tiller and other implements;
9. The optional plow, can undertake light load bulldozing homework;
10. Elegant appearance, quality first-class
Crawler tractor product technical parameters
| Item | RT802 | RT1002 | RT1202 |
| Engine power(HP) | 80 | 100 | 120 |
| Complete machine type | Full track type | ||
| Machine frame type | Full frame | ||
| Whole machine drive type | 2WD | ||
| Purpose of the whole machine | General purpose | ||
| Overall dimensions of the entire machine (L x W x H and parts)(mm) | 4100×1850×2980 (Top of safety rack) | ||
| Wheelbase or track grounding length (mm) | 1570 | ||
| Common wheel gauge (front/rear) or track gauge(mm) | 1300 | ||
| Wheelbase (front/rear) or track gauge(mm) | 1300 | ||
| Minimum ground clearance and location(mm) | 495 (bottom of crossbeam) | ||
| Horizontal distance from the front end face of the clutch housing to the centerline of the rear drive shaft (mm) | 1120 | ||
| Center distance of gearbox gear secondary shaft hole(mm) | 105 | ||
| Horizontal distance from the centerline of the drive wheel to the centerline of the guide wheel of a full track tractor(mm) | 450 | ||
| Minimum usage quality(kg) | 3120 | ||
| Standard Counterweight (front/rear) (kg) | 180/0 | ||
| Track to ground pressure ratio(kPa) | 24.34 | ||
| Min usage specific mass (kg/kW) | 42.39 | ||
| Number of gears (forward/reverse) | 12/12 | ||
| Number of main transmission gears | 4 | ||
| Number of gears for auxiliary transmission | 3×(1+1) | ||
| Max Design Theoretical Speed(km/h) | 16.52 | ||
| ★ Theoretical speed of each forward gear (km/h) | LOW:1.48,2.08,3.38,4.44 | ||
| MID:3.75,5.51,8.95,11.76 | |||
| High:5.27,7.74,12.58,16.52 | |||
| Connection method between engine and main clutch | Direct connection | ||
| Model of tipping protection device (cab or safety frame) | 1002.46.1 | ||
| Type of tipping protection device (cab or safety frame) | Security Framework | ||
| Engine model | YTO National Emission II | ||
| Engine structural type | Inline, four stroke | ||
| Engine intake method | Supercharged intercooling | ||
| Number of engine cylinders | 4 | ||
| Engine calibration speed(r/min) | 2300 | ||
| Engine cooling method | water-cooling | ||
| ★ Maximum allowable intake pressure drop (resistance) of the engine(kPa) | 0 | ||
| ★ Maximum allowable exhaust backpressure of the engine(kPa) | 25 | ||
| Air filter type | Dry | ||
| External dimensions of exhaust pipe sound-absorbing chamber (Diameter x L)(mm) | Φ250×650(DPF+DOC) | ||
| Mass of exhaust pipe silencing chamber(kg) | 28 | ||
| Steering system type | hydraulic pressure | ||
| Steering system steering control mechanism | Steering wheel | ||
| Steering system steering mechanism type | Differential steering | ||
| Number of transmission cases and transmission type | Mechanical plane composition formula | ||
| Main gear position and shifting method | Mechanical graded gears | ||
| Secondary transmission shifting method | Mechanical graded gear | ||
| Track material | rubber | ||
| Track shoe width(mm) | 400 | ||
| Hydraulic suspension system type | Split type | ||
| Suspension device type | Rear three-point suspension | ||
| Suspension device category | Category 2 | ||
| Number of hydraulic output groups | 2 groups | ||
| Working device safety valve fully open pressure | 17.5±0.5 MPa | ||
| Number of power output shaft splines | 8 | ||
| Standard speed of power output shaft | 720/1000 r/min | ||
| ★ Power output shaft transmission ratio | 3.055/2.173 | ||
Full range of tractor products display
Tractor SKD packaging and CBU packaging display
Tractor Container Display
Tractor supporting farm implements display
Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional agricultural machinery manufacturer integrating R&D, design, manufacturing, sales and service. The company products cover road transport machinery, harvest machinery, equipment for plant protection, agricultural implements and agricultural unmanned machinery.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has worked out comprehensive quality manual and quality control procedure files at all levels based on ISO9001:2000, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 50 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end
machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

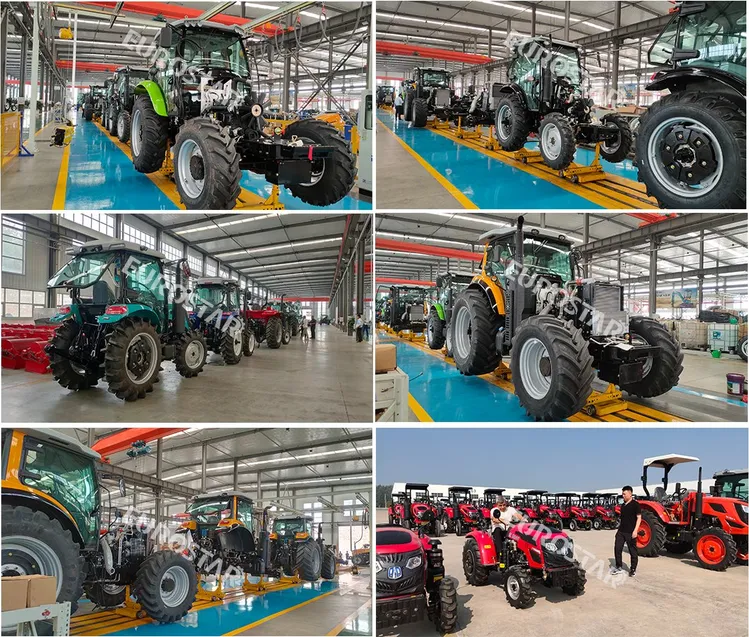

Tractor production workshop display
