LKJ200 LKJ300 LKJ400 LKJ500 LKJ600 LKJ800 LKJ1000
1-3 Years
Chain Trencher
Agriculture
500-2200mm
Chain Ditching Machine
Tractor
1-3
Wheel
High-speed Repeatedly Into a Ditch
100-500m/h
CE
1-3 Years
Red, Black
EUROSTAR OEM
Iron Frame, Wooden Case, Spare Parts
2200x1600x1400mm
China
8432809000
Product Description
Made in China, Sold to the world
Versatile, Easy, Affordable, Powerful, Reliable
Versatile, Easy, Affordable, Powerful, Reliable
trencher product description
Chain trencher Product Description
LKJ series chain ditch digger operates flexibly and is suitable for narrow working width road surface. Ditching width and depth can be adjusted according to work requirements. The trench width is the narrowest 120mm, and the trench depth can reach 1500mm, which can replace manual and excavator operations and meet the needs of different working environments. The cutting chain is manufactured with special materials and technology, and the product has long service life. For narrow work width of the road work efficiency is very obvious (installation of pipes or cables and other operating environment), more efficient than the excavator.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Chain trencher Product Selling Points
The machine is of easy structure, easy-operating, easy maintenance. Note: the equipped tractor shall be with creeper gear and high speed hydraulic joint.
1. Remarkable economical benefit
One ditcher can equal to the work of dozens of persons, several small type excavators. It is the best choice of low investment and high efficiency. After departed, the tractor can do other farm work independently.
2. Good performance
The ditch was vertical and even, a lot better than human labor and excavators.
3. Good quality, long-life span
The blades and chain adopts special materials and good technique to assure long-life span.
4. High efficiency
The ditcher has high work efficiency (3-5 times to the excavator). It is specially suitable for digging deep and narrow ditch (for bury pipe or cable).
Chain trencher product technical parameters
Chain trencher details picture display
| Model | LKJ200 | LKJ250 | LKJ300 | LKJ350 | LKJ400 | LKJ500 | |||
| Supporting power | 50-80HP | 50-80HP | 50-80HP | 50-80HP | 50-80HP | 50-80HP | |||
| PTO speed(r/min) | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 | |||
| Power speed | Low speed | Low speed | Low speed | Low speed | Low speed | Low speed | |||
| structure type | Chain ditch, single chain, multi-chain | ||||||||
| knife dish speed(r/min) | 300-550 | 300-550 | 300-550 | 300-550 | 300-550 | 300-550 | |||
| Number of Trenching knives | custom | custom | custom | custom | custom | custom | |||
| Trenching width(mm) | ⩽150-200 | ⩽250 | ⩽300 | ⩽350 | ⩽400 | ⩽500 | |||
| Trenching depth(mm) | ⩽1500 | ⩽1200 | ⩽100 | ⩽800 | ⩽700 | ⩽500 | |||
| work efficiency | 120-500M/h | 120-500M/h | 120-500M/h | 120-500M/h | 120-500M/h | 120-500M/h | |||
| Model | LKJ200K | LKJ250K | LKJ300K | LKJ350K | LKJ400K | LKJ500K | LKJ600K | ||
| Supporting power | 90-110HP | 90-110HP | 90-110HP | 90-110HP | 90-110HP | 90-110HP | 90-110HP | ||
| PTO speed(r/min) | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 | ||
| Power speed | Low speed | Low speed | Low speed | Low speed | Low speed | Low speed | Low speed | ||
| structure type | Chain ditch, single chain, multi-chain | Chain ditch, single chain, multi-chain | |||||||
| knife dish speed(r/min) | 300-550 | 300-550 | 300-550 | 300-550 | 300-550 | 300-550 | 300-550 | ||
| Number of Trenching knives | custom | custom | custom | custom | custom | custom | custom | ||
| Trenching width(mm) | ⩽150-200 | ⩽250 | ⩽300 | ⩽350 | ⩽400 | ⩽500 | ⩽600 | ||
| Trenching depth(mm) | ⩽1800 | ⩽1500 | ⩽1300 | ⩽1200 | ⩽1200 | ⩽1000 | ⩽800 | ||
| work efficiency | 120-500M/h | 120-500M/h | 120-500M/h | 120-500M/h | 120-500M/h | 120-500M/h | 120-500M/h | ||
| Model | LKJ200KD | LKJ250KD | LKJ300KD | LKJ350KD | LKJ400KD | LKJ500KD | LKJ600KD | LKJ800KD | LKJ1000KD |
| Supporting power | 120-220HP | 120-220HP | 120-220HP | 120-220HP | 120-220HP | 120-220HP | 120-220HP | 120-220HP | 120-220HP |
| PTO speed(r/min) | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 |
| Power speed | Low speed | Low speed | Low speed | Low speed | Low speed | Low speed | Low speed | Low speed | Low speed |
| structure type | Chain ditch, single chain, multi-chain | Chain ditch, single chain, multi-chain | |||||||
| knife dish speed(r/min) | 300-550 | 300-550 | 300-550 | 300-550 | 300-550 | 300-550 | 300-550 | 300-550 | 300-550 |
| Number of Trenching knives | custom | custom | custom | custom | custom | custom | custom | custom | custom |
| Trenching width(mm) | ⩽150-200 | ⩽250 | ⩽300 | ⩽350 | ⩽400 | ⩽500 | ⩽600 | ⩽800 | ⩽1000 |
| Trenching depth(mm) | ⩽2200 | ⩽2100 | ⩽2100 | ⩽2000 | ⩽2000 | ⩽2000 | ⩽1500 | ⩽1000 | ⩽1000 |
| work efficiency | 120-500M/h | 120-500M/h | 120-500M/h | 120-500M/h | 120-500M/h | 120-500M/h | 120-500M/h | 120-500M/h | 120-500M/h |
| parameter | PKJ500 | PKJ600 | PKJ700 | PKJ800 | PKJ700K | PKJ800K | PKJ1000 | PKJ1100 | PKJ1200 |
| Supporting power | 50-90HP | 50-90HP | 50-90HP | 50-90HP | 100-220HP | 100-220HP | 100-220HP | 100-220HP | 100-220HP |
| PTO speed(r/min) | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 | 500-1000 |
| Power speed | Low speed | Low speed | Low speed | Low speed | Low speed | Low speed | Low speed | Low speed | Low speed |
| structure type | Disc type | Disc type | Disc type | Disc type | Disc type | Disc type | Disc type | Disc type | Disc type |
| knife dish speed(r/min) | 100~200 | 100~200 | 100~200 | 100~200 | 100~200 | 100~200 | 100~200 | 100~200 | 100~200 |
| Number of Trenching knives | 30-180 According to the size of the knife plate | 30-180 According to the size of the knife plate | |||||||
| Trenching width(mm) | 250-300 | 200-250 | 150-200 | 80-150 | 300-400 | 250-300 | 200-250 | 150-200 | 80-150 |
| Trenching depth(mm) | ⩽500 | ⩽600 | ⩽700 | ⩽800 | ⩽700 | ⩽800 | ⩽1000 | ⩽1100 | ⩽1200 |
| Cement road work efficiency | 50-100M/h | 50-100M/h | 50-100M/h | 50-100M/h | 50-150M/h | 50-150M/h | 50-150M/h | 50-150M/h | 50-150M/h |
| Asphalt work efficiency | 120-200M/h | 120-200M/h | 120-200M/h | 120-200M/h | 120-200M/h | 120-200M/h | 120-200M/h | 120-200M/h | 120-200M/h |
| Brick pavement work efficiency | 150-230M/h | 150-230M/h | 150-230M/h | 150-230M/h | 150-230M/h | 150-230M/h | 150-230M/h | 150-230M/h | 150-230M/h |
| Land work efficiency | 180-300M/h | 180-300M/h | 180-300M/h | 180-300M/h | 180-300M/h | 180-300M/h | 180-300M/h | 180-300M/h | 180-300M/h |
Disc trencher details picture display
Road cutting machine details picture display
Trencher working effect display
Trencher packing and shipping link display

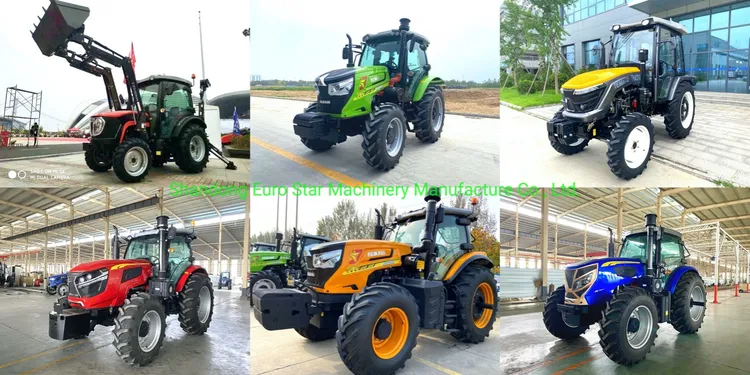

Full range of tractor products display
Our company produces other agricultural machinery display
Factory introductionShandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
Tractor production workshop display
Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
