SH7552
12 Months
12 Months
Sweep and Suck Type
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Manual
Euro 2
Diesel
5t-8t
Burnishing
Cold Water Cleaning
New
>95%
Video Technical Support, Field Installation
3 M
115 L/Min
12 MPa
3~20 Km/H
shenghui
Nude Packing, Roro Ship, Bulk Ship, Container
9350*2480*3160
Suizhou China
8705909990
Product Description
Hubei Shenghui Special Automobile Co.,Ltd.

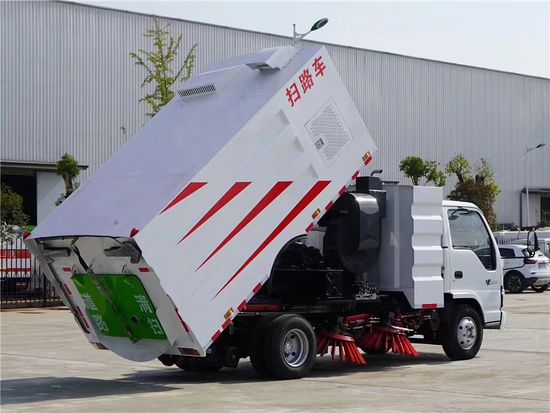

I suzu 4x2 Road Sweeper Truck
Description:I suzu 4x2 Road Sweeper Truck
1. We can supply all brands of special trucks, such as Dongfeng, I SUZU, Sinotruck, Foton, Faw, north Benz(beiben), JAC, JMC, etc.
2. The drive type could be 4X2, 4X4, 6X4, 6X6, 8X4.
3. Certification: ASM, ISO, BV, SGS, CCC etc.
Advantage:
1. Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
2. The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
3. With efficient filtration system
4. Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
5. Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
PRODUCTS SHOW
PARAMETER CONFIGURATION
| Truck name | I suzu 9m3 Road Sweeper Truck | |
| Wheelbase | 3815mm | |
| Front/rear suspension | 1015/2330 mm | |
| Engine model | Chassis engine | 4KH1CN6LB |
| Spare engine | ISB140 33 | |
| Engine rate | Chassis engine | 88kw, 2999cc, 120hp |
| Spare engine | 103 kW | |
| Max upgrade angle | 30% | |
| Emission standard | Eur 6 | |
| Accelerating outside noise | ≤84dB(A) | |
| Max speed | 95 km/h | |
| Approach angle | 24° | |
| Departure angle | 12° | |
| Weight specifications | Kurb weight | 6400 kg |
| Whole weight | 7300kg | |
| Dimension specifications | Whole dimension | Aboat 7000×2200×2750mm |
| Minimum height above ground | 250 mm | |
| High pressure clean | Clean speed | 3~20 Km/h |
| Clean width | 3 m | |
| Water pressure | 12 MPa | |
| Water pump flow | 115 L/min | |
| Clean and suction performance | Cleaning efficiency | ≥95% |
| Maximum suction particle size | 110 mm | |
| Clean and suction width | 3 m | |
| Max clean capacity | 60000 m2/h | |
| Disc brush size | ≥400 mm | |
| Clean and suction speed | 3-20 km/h | |
| Water Tank | Water tank volume | 4 m³ |
| Dust tank | Dust tank volume | 5 m³ |
| Dump bin tilting angle | ≥46° | |
| Discharge door opening angle | ≥85° | |
| Hydraulic system | Model | Open, electrical control |
| Major parts | Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve | |
| System pressure | 16 MPa | |
| Oil tank | 60 L | |
| Oil temperature | 60 ˚C | |
| Electrical system | Model | DC24 V |
| Voltage | 24 V | |
| Battery | 24 V | |
| Water spray system | Major parts | Electric diaphragm pumps, water filters, nozzles, etc. |
| Sweeping devise | Modle | Center two swabs, driven by a hydraulic motor, and the front right can be controlled independently, with a evasive reply function. |
| Brush diameter | 850 mm | |
| Brush angle | Tilt forward: 4-6 degrees Tilt: 4-7 degrees | |
| Sucking plate | Model | Double suction, hydraulic control, spring suspension. |
| Suction plate diameter | 180 mm | |
| Suction plate width | 1800mm | |
| High pressure water system | Model | post pump |
| No:. | Germany PT36 | |
| System pressure | 10 MPa | |
| Speed | 1150 r/min | |
| Water valve model | Hydraulic pressure ball valve. | |
| Water valve pressure | 7 MPa | |
| Spray nozzles model | High pressure washing type | |
| Water filter | Mesh type | |
FAQ
1. Q: How about the quality of trucks of your factory?
A: Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.
2. Q: How many years of your company's service, especially after-sale service?
A:Hubei Shenghui is a long-term business partner of CLW group and our group has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 15 working days. We offer 1 year after-sale service.
3. Q: Is there any advantages of your price?
A: CLW Group is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.
4. Price term: FOB, CIF.
5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
6. Delivery time: 25 working days after payment is received.
7. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, will make special order for you.
