LTQD1012
1 Year
1 Year
Workshop Crane, Warehouse Crane
Scissor Lift
Weight Level
Moving
Hydraulic
Moving
CE, ISO 9001
200kg
1
16.2m
8m
1400*790*1820mm
Pneumatic
1340X760mm
500m
1.7km/H
790kg
LTMG
Nude Package, Fixed in Container
1400*790*1820mm
China
8427109000

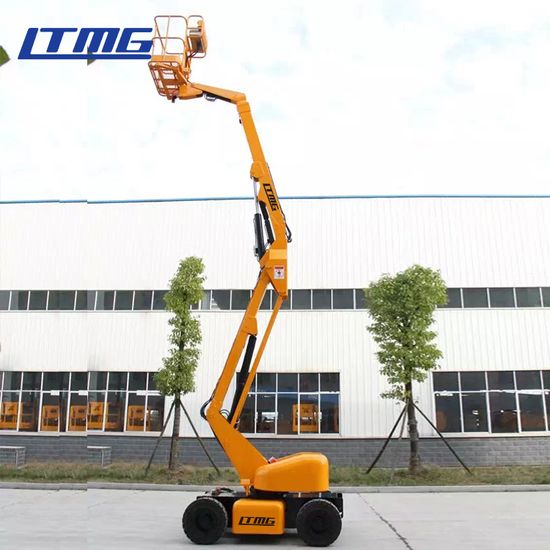

Product Description
Model | LTQD1416 |
Maximum Working Height | 16.2m |
Maximum Platform Height | 14.2m |
Maximum Horizontal Reach | 8m |
Platform Capacity | 230kg |
Maximum Up and Over Clearance | 7.75m |
Machine Length( stowed) | 6.2m |
Machine Width (stowed) | 2.29m |
Machine Height(stowed) | 2.38m |
Wheel Base | 2.2m |
Ground Clearance | 430mm |
Platform Dimension* | 1.83*0.76m |
Tail Swing | 3.0m |
Turning Radius | 5.2m |
Drive Speed(stowed) | 6.3km/h(2WD); |
4.2km/h(4WD) | |
Drive Speed(raised or extended) | 1.1km/h |
Gradeablity | 45%(4WD);30%(2WD) |
Solid Tire | 33*12-20 |
Swing Speed | 0-0.8rpm |
Turntable Swing | 360° Continuous |
Platform Leveling | Automatic leveling |
Platform Rotation | ±80° |
Hydraulic Tank Volume | 100L |
Machine Weight | 7577kg(2WD) |
7757kg(4WD) | |
Control Voltage | 12V |
Drive & Steering | 4*2*2 or 4*4*2 |
Engine | Cummins(B2.8-C58) |
Yamar(4TNV94L-BXPHZ) |
