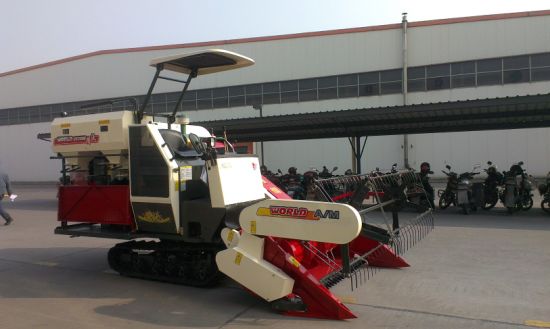

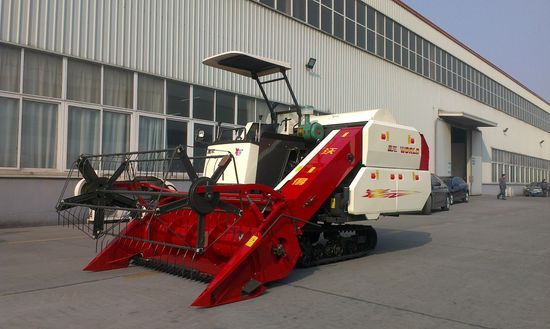

4LZ-4.0D
Horizontal Cut Harvester
Rice, Corn, Wheat, Soybean
Diesel
Picking
Vee belt
Hard Shaft
Side Hanging Type
ISO9001:2008, CE
Red
New
Agriculture
WORLD
Nude Packing
22CBM
China
84335100
Product Description
1. Designed for small field or mountain fields.
2. 70Hp engine, ZKB40 Gear Box and 30cc Imported HST are used for making sure of work efficiency.
3. Structure is compact, working is more flexible.
Parameters as below,
2. 70Hp engine, ZKB40 Gear Box and 30cc Imported HST are used for making sure of work efficiency.
3. Structure is compact, working is more flexible.
Parameters as below,
| Model | 4LZ-4.0D | |
| Type | Self-propelled Whole-feeding | |
| Dimension (Operation) | Length(mm) | 4660 |
| Width(mm) | 2465 | |
| Height(mm) | 3000 | |
| Weight(kg) | 2300 | |
| Engine | Type | In-line, Water cool, Four-stroke, Direct Injection |
| Power(HP) | 70 | |
| RPM(r/min) | 2650 | |
| Fuel tank(L) | 72 | |
| Gear Box Model | Hydraulic Type with HST | |
| Chassis | Track(mm) | 400*90*46 |
| Track Center(mm) | 1030 | |
| Ground Clearance(mm) | 320 | |
| Harvesting | Cutting Width(mm) | 2000 |
| Feeding Capacity (kg/s) | 3.0 | |
| Cutting Bar Lift | Hydraulic Control | |
| Threshing | Type | Axial Flow Type with Beat Bars |
| Threshing Cylinder (mm) | 550*1295 | |
| Filtrate Type | Vibrating Sieves+ Centrifugal Fan | |
| Discharging | Side Grain Tank(0.4m³) | Manual Type |
| Work efficiency(ha./h) | 0.25-0.47 | |
| Crops | Rice, Wheat, Rapessed | |
