4LZ-5.5A
Rice, Corn, Wheat, Soybean
Diesel
Cut, Pickup Thresh, Discharge
Vee belt
Hard Shaft
Self-Propelled Rubber Track Full Feed
ISO9001:2008, CE
Red and White
New
Agriculture
WORLD
Nude Packing
45CBM
China
84335100
Product Description

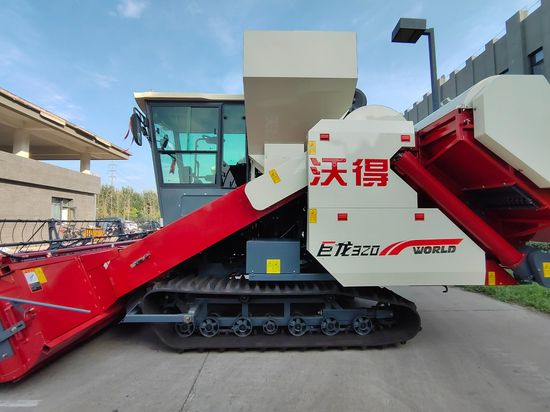

Double Threshing Cylinder Combine Harvester.
Euiqpped with 125Hp engine, 150hp engine optional. Fuel Tank 140L meet the whole day's work.
Big Gear Box ZKB85 and large HST workflow 45CC.
Rubber Track 550/600*90*56 enure machine work smoothly in deep mud field.
Cutting Width reaches 3.9m, which is mainly used for big farmland.
Grain Tank capacity is 2.3m3
Euiqpped with 125Hp engine, 150hp engine optional. Fuel Tank 140L meet the whole day's work.
Big Gear Box ZKB85 and large HST workflow 45CC.
Rubber Track 550/600*90*56 enure machine work smoothly in deep mud field.
Cutting Width reaches 3.9m, which is mainly used for big farmland.
Grain Tank capacity is 2.3m3
| Model | 4LZ-5.5A | 4LZ-6.0A | |
| Type | Self-propelled Whole-feeding | Self-propelled Whole-feeding | |
| Dimension (Operation) | Length(mm) | 5400 | 5630 |
| Width(mm) | 4760 | 5050 | |
| Height(mm) | 2960 | 3300 | |
| Weight(kg) | 3700 | 4250 | |
| Engine | Type | In-line, inter-cool, turbo charged diesel engine | |
| Power(HP) | 125 | 150 | |
| RPM(r/min) | 2600 | 2300 | |
| Fuel tank(L) | 150 | ||
| Gear Box Model | WORLD 65 | WORLD 80 | |
| Chassis | Track(mm) | 550/600*90*56 | |
| Track Center(mm) | 1450 | ||
| Min.Ground Clearance(mm) | 290 | 290 | |
| Harvesting | Cutting Width(mm) | 3200 | 3900 |
| Feeding volume (kg/s) | 5.5 | 6.0 | |
| Header Lifting | Hydraulic | ||
| Threshing | Type | Two threshing cylinder | |
| Cylinder size 1st | ∮650*1155 | ∮700*1355 | |
| Cylinder size 2nd | ∮430*1435 | ∮548*1665 | |
| Separating Type | Centrifugal blower+vibrating sieves | ||
| Grain tank | Size(m³) | 2.2 | 2.3 |
| Grain unloading type | Automatic horizontal unloading pipe | ||
| Operation efficiency(ha./h) | 0.6-1.0 | 0.7-1.5 | |
| Crops | Rice, Wheat, barley, Rapessed | ||
