4LYZ-5
Corn
Diesel
Cut, Pickup Thresh, Discharge
Vee belt
Hard Shaft
Self-Propelled Rubber Track Full Feed
ISO9001:2008, CE
Red and White
New
Agriculture
WORLD
Nude Packing
45CBM
China
Product Description

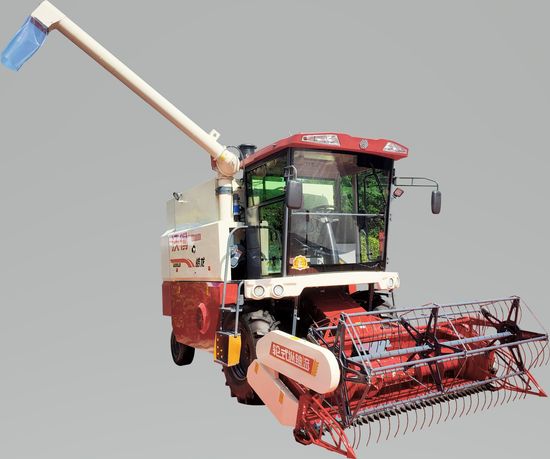

New Technology Rice and Wheat Combine Harvester-Wheel Type Made in China (4LYZ-5)
Double Threshing Cylinder Combine Harvester.Euiqpped with 125Hp engine, 150hp engine optional. Fuel Tank 140L meet the whole day's work.
Big Gear Box ZKB85 and large HST workflow 45CC.
Rubber Track 550/600*90*56 enure machine work smoothly in deep mud field.
Cutting Width reaches 3.9m, which is mainly used for big farmland.
Grain Tank capacity is 2.3m3
| type | 4LYZ-5 | |
| structural style | Picking/threshing type self-propelled | |
| DIMENSION(MM) | 7110*3200*3350 | |
| engine | brand | yuchaiYC4D150-T301 |
| type | YC4DK150-T301 | |
| power(kw) | 110 | |
| rated speed(r/m) | 2600 | |
| rows | 5 | |
| minimum ground clearance | 350 | |
| cutting width(mm) | 3200 | |
| working efficiency(h/h) | 0.2-1.1 | |
| working speed(km/h) | 1.0-9.0 | |
| Fuel consumption per unit area(kg/h) | 15-40 | |
| thresher | type | Scraper chain type |
| Conveyor belt width(mm) | 510 | |
| header type | Pull stem and pick ear type+Auger type | |
| Transfer tank type | Transfer tank type | |
| pick institutions | Pick roll/plate type | Knife type stem drawing roll |
| Pick roll/Plate size (mm) | φ104*420 | |
| crops | rice,wheat ,corn | |
