EST10 EST15
Parts
18 Months or 3000 Working Warranty
Adjustable
Stacker
AC Motor
1500kg
Electric
450mm
3000~5000mm
New
Stma Forklift China
Curtis
1600-3500mm
PU Material
CE & EPA
Customer Demanded
High Efficiency
Electric Power
STMA
by Bulk or Container
1600mm*760mm*2077mm
China
8427209000
Product Description

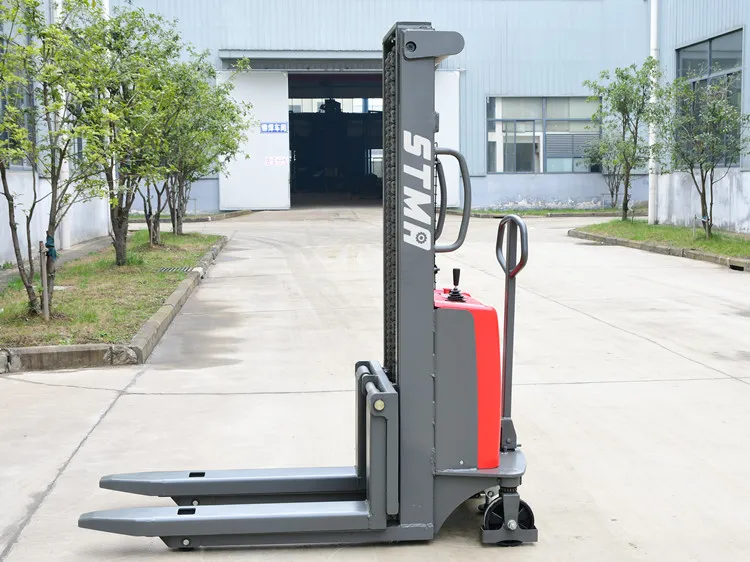

STMA 1000kg 1500kg pallet stacker semi electric with 1600mm lifting height
pallet stacker
Specifications of stacker
Shipping & delivery:
Company info:
pallet stacker
Specifications of stacker
Model | MS1016 | MS1024 | MS1029 | MS1031 | MS1033 | |
Capacity | (kg) | 1000 | ||||
Max.Fork Height | h3(mm) | 1600 | 2000 | 2500 | 3000 | 3300 |
Min.Fork Height | (mm) | 90 | ||||
Load Centre | C(mm) | 400 | ||||
Wheel Base | Y(mm) | 1132 | ||||
Load Distance | X(mm) | 450 | ||||
Truck Length incl. Fork Face | L2(mm) | 670 | ||||
Lifting Speed(with/without load ) | (mm/s) | 95/127 | ||||
Lowering speed (with/without load ) | (mm/s) | 106/74 | ||||
Fork Length | I(mm) | 1150 | ||||
Fork Overall Width | M(mm) | 540 | ||||
Single Fork Width | (mm) | 160 | ||||
Fork Wheel | (mm) | 82x70 | ||||
Rear Wheel | (mm) | 180x50 | ||||
Turning Radius | Wa(mm) | 1500 | ||||
Power Pack | (KW/V) | 1.6/12 | ||||
Battery | (Ah/V ) | 120 /12 | ||||
Charger | (A/V ) | 12/12 | ||||
Overall Length | L(mm) | 1820 | ||||
Overall Width | B(mm) | 800 | 800 | 800 | 1000 | 1000 |
Overall Height | h1(mm) | 2090 | 1800 | 2025 | 2125 | 2225 |
Net Weight | (kg) | 480 | 540 | 580 | 595 | 610 |
