2t 3.5m Transport Heavy Duty Electric Stacker Lift Fork with CE 1150mm



This Full electric pedestrian truck will provide you idea storage aid for variety of transport tasks in stores, warehouses and factory plants.

Features

-Full electric pedestrian truck with movable pedal and safeguard, which ensure convenient travel and safety at the same time.

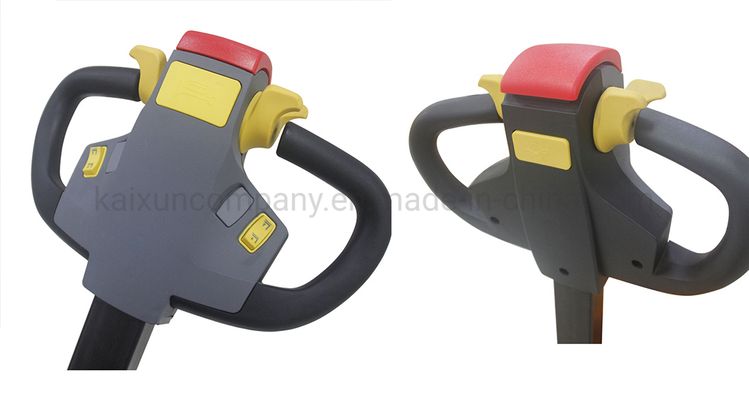

-Excellent ergonomic designed handle compacts travel, lift, lower, and horn functions. The hand grip fit the operator's hand comfortably, and it can be used with either hand to reduce fatigue.

-When working in tight places and low speed is needed, the creep speed control can be used for easier maneuvering.

-All pivots are greased for effortless steering.

-The durable large capacity traction battery can be conveninetly and repiddly recharged .

-Superpower driving and lifting DC motor has good performance of speed
  regulation. It can efficiently realize starting and braking toque functions.




Technical Parameters


Articles		Unit	KX-CDD-A15	KX-CDD-A20
Main Characteristics	Drive mode	QD	Electric
	Driving mode	JS	Stand/Step
	Rated load capacity	kg	1500	2000
	Load center distance	mm	500
	Wheel material	PU	Polyurethane
	Carrying wheel	mm	Φ85×80
	Driving wheel	mm	Φ210×70	Φ230×75
Size	Lifting height	mm	1600/2000/2500/3000
	Door frame max. working height	mm	2068/2568/3068/3568
	Fork length	mm	1150
	Fork outside width	mm	550/685
	Overall width	mm	850
	Overall length	mm	2440
	Turning radius	mm	1588
Performance Parameter	Driving speed (Full-load)	km/h	3.5
	Lifting speed (Full-load)	mm/s	45	100
	Brake mode	Z	Electromagnatic brake
	Battery voltage/rated capacity	V/Ah	2×12/80
	Driving motor	kw	0.75	1.0
	Lifting motor	kw	2.2	2.2
Weight	N.W.	kg	675	725

Q&A

Question: Is charger included?
Answer: Yes.

Question: How long it take to recharge the battery?
Answer: About 6 hours.

Question: How long it can work continuously?
Answer: About 6 hours.

Question: What is Max. gradeability (unload/load)?
Answer: 6/4.5%
