Parameter
| Model | SDJA500 | SDJA1000 | SDJA1500 | |
| Load capacity/rate load | Q(kg) | 500 | 1000 | 1500 |
| Load center distance | C(mm) | 500 | 500 | 500 |
| Fork height,lowered | h13(mm) | 90 | 90 | 90 |
| Height,mast lowered | h1(mm) | 2000 | 2085/1840 | 2090 |
| Max.lift height | h3(mm) | 1600 | 1600/2500 | 1600 |
| Height,mast extended | h4(mm) | 2010 | 2165/2925 | 2150 |
| Overall length | l1(mm) | 1380/1640 | 1380/1640 | 1380/1640 |
| Overall width | b1(mm) | 805 | 1000/750 | 1000 |
| Fork dimensions | s/e/l(mm) | 48/100/800(1060) | 30/100/800(1060) | 30/100/800(1060) |
| Width overall forks | b5(mm) | 200-745 | 200-950/700 | 200-950 |
| Ground clearance,laden,below mast | m1(mm) | 20 | 25 | 25 |
| Aisle width for pallets 1000x1200 crossways | Ast(mm) | 1915 | 1915 | 1915 |
| Aisle width for pallets 800x1200 lengthways | Ast(mm) | 1910 | - | - |
| Turning radius | Wa(mm) | 1235 | 1235 | 1235 |
| Lift speed,laden/unladen | mm/time | 25 | 25 | 21 |
| Lowering speed.laden/unladen | mm/s | Manual control | Manual control | Manual control |
| Service weight | kg | 161 | 250/316 | 280 |
Design Drawing
MOVMES has the professional design team.While reducing costs, we are committed to every small features to improve work efficiency, reduction of safety risks for employee and improve customer utilization.

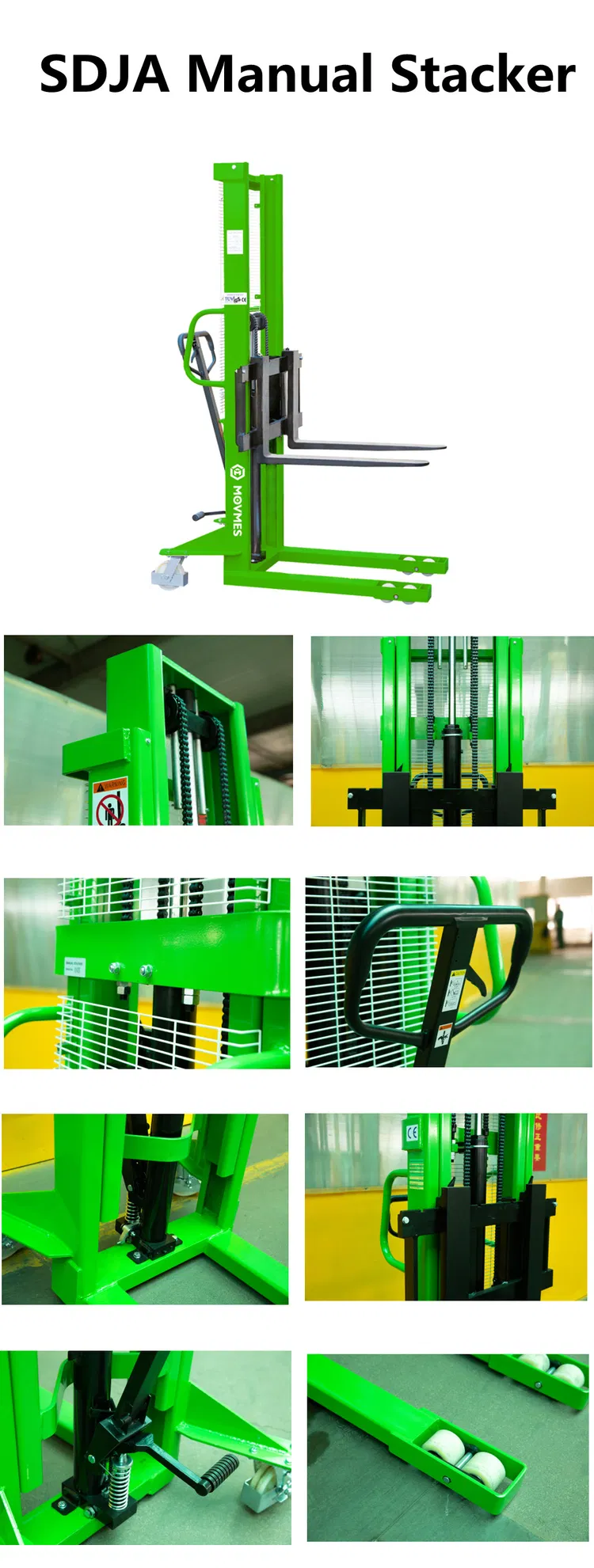

Advantages:
1).Forged forks
2).With adjustable fork between 200-950mm
3).Lifting height from 1600 to 2500mm
4).High quality steel mast ensures rigidity and durability.
5).Adjustable forged forks.
6).High efficient pumps makes the control easier to operator to work without having to perform extreme body movements.
7).Metal grid protects user from lift chains.
8).With safety wheel guard and brake system to ensure safety during operation.
 | SDJAS 1000 1000kg Manual Stacker With 1600MM Lift height |
 | CDDR10-E 1000KG Electric Stacker with 2500/3000/3500mm Lift Height |
 | CDDR10/15 1000/1500KG Electric Stacker With 1600/2500/3000mm Lift Height |
Customer Feedback
Certification:
ISO9002:1995
ISO9001:2008(Quality management system)
ISO14001:2004(Environmental management system)
OHSAS18001:2007(Occupational Health and Safety management system)
We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of EN3691-5:2014 and EN3691-1:2012
Factory Information
Tesing System
Product test before delivery:
Total five test items:
1.Strengthening test detection
2.Stability detection
3.Detection of climbing performance and current
4.Debugging and testing of braking performance
5.Testing of technical parameters
Strong Packing
MOVMES according to the delivery requirements of each customer, we carefully package each TRUCK. Before delivery, we will take photos and videos, and only after getting the customer's approval will we send them away.
Usually MOVMES producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?
A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.
Q2: What's the specification of the chargers?
A2: Our chargers voltage could be 24V /48V ,Side-way battery with roll-out system is very convenient replacement. Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.
Q3: Can MOVMES provide customized products? OEM or ODM products?
A3: Yes, Since 1985,MOVMES is always professionally in developing and producing warehouse logistic equipment ,such as manual/electric pallet trucks&slackers, reach trucks, forklifts and so on.We do OEM for Toyota/ Jungheinrich/ Clark / Hyster / Yale etc.
Q4: How long is the Warranty for MOVMES product?
A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.
