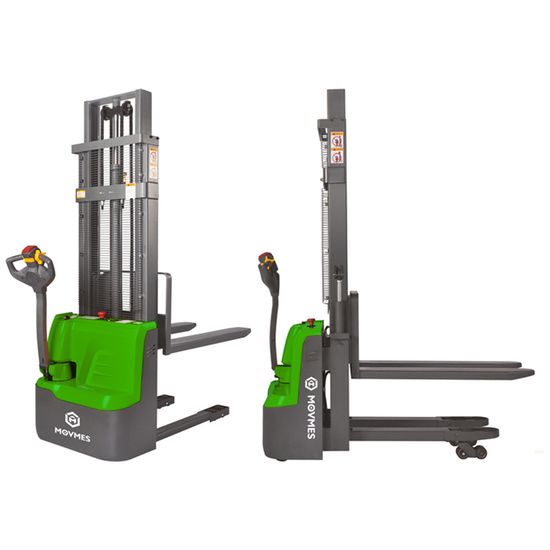

1.5 ton Hydraulic/Semi-electric stacker/pallet stacker with adjustable forks
Advantages:
* Explosion-proof valve applied in the cylinder reventsinjuries in case of hydraulicpump failure.
* Brand-new configuration: adopted 1.5kw hydraulic pump (manual descending with controllable speed)
* With large storage battery.
* Steering mechanism driven by chains requires small steering force to convenient operations.
* Foot brake is more prompt, convenient and labor saving.
* Adopted plate chains with high strength. Ensure safety and stability.
Size Information
| Model | CDD15B-E | |
| Load capacity | Q(kg) | 1500 |
| Load center distance | c(mm) | 400 |
| Front overhang | x(mm) | 650 |
| Tread | y(mm) | 1235 |
| Axle load,front /rear,laden | kg | 375/1540 |
| Axle load,front /rear,unladen | kg | 280/135 |
| Wheel | NYLON | |
| Wheel dimension,front | mm | Φ180x50 |
| Wheel dimension,rear | mm | Φ80x78 |
| Wheel number,front/rear | 2/2 | |
| Tread,front | b10(mm) | 700 |
| Tread,rear | b11(mm) | 420 |
| Height of mast,lowered | h1(mm) | 2100/1850/2100/2250/2350 |
| Lift height | h3(mm) | 1600/2500/3000/3300/3500 |
| Max.height of mast,extended | h4(mm) | 2100/3060/3560/3860/4060 |
| Height,lowered | h13mm) | 90 |
| Overall length | I1(mm) | 1745 |
| Length to fork face | I2(mm) | 1070 |
| Overall width of truck body | b1(mm) | 960 |
| Fork dimension | s/e/l(mm) | 60x142x1070 |
| Overall width of fork | b5(mm) | 300-930 |
| Wheelbase ground distance | m2(mm) | 15 |
| Aisle width for pallets 1000x1200 crossways | Ast(mm) | 2288 |
| Aisle width for pallets 800x1200 crossways | Ast(mm) | 2267 |
| Turning radius | Wa(mm) | 1425 |
| Lifting speed,laden/unladen | m/s | 0.05/0.08 |
| Descendin speed,laden/unladen | m/s | 0.1/0.09 |
| Traveling brake | Mechanical brake | |
| Lifitng motor power | KW | 1.5 |
| Battery voltage/rated capacity | V/Ah | 12/120 |
| Battery weight | kg | 45 |
| Battery dimension(LxWxH) | mm | 360x170x250 |
| Service weight(with battery) | kg | 335/395/415/425/435 |
Related Production
 | CDD10/15B-III SEMI-ELECTRIC 1.0/1.5ton with 1600-3500mm lifting height, overall adjustable forks. |
 | CTD10/15B-III SEMI-ELECTRIC 1.0/1.5ton with 1600-3500mm lifting height , Straddle-leg overall adjustable forks |
 | CDD10R-E FULL-ELECTRIC 1.0ton with 1600-3500mm lifting height. |
CE Certification
ISO9002:1995
ISO9001:2008(Quality management system)
ISO14001:2004(Environmental management system)
OHSAS18001:2007(Occupational Health and Safety management system)
We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of ISO3691-1 EN1175-1 EN16307-1
Packing and Delivery
MOVMES according to the delivery requirements of each customer, we carefully package each TRUCK. Before delivery, we will take photos and videos, and only after getting the customer's approval will we send them away.
Usually MOVMES producing time is 30-45 days after we receive the advanced 30% payment.
36 year's experience
FAQQ1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?
A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.
Q2: What's the specification of the chargers of CDD15B-E?
A2: Our chargers 12V120Ah lead-acid battery. Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.
Q3: Can MOVMES provide customized products? OEM or ODM products?
A3: Yes, Since 1985,Our factory is always professionally in developing and producing warehouse logistic equipment ,such as hand/electric pallet trucks,manual /electric slackers, reach trucks, forklifts and so on.We do OEM for Toyota/ Jungheinrich/ Clark / Hyster / Yale etc.
Q4: How long is the Warranty for MOVMES product?
A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.
