3M3H-600000B
Aluminum Alloy
Baking Paint
Non-Customized
Standard
Tilt Cylinder Forklift
3m3h-600000b
Hangcha 20-30h Forklift
Cost-Effective Forklift Aftermarket Parts
Leading forklift parts
Corrugated Carton with Plywood Case
60*16*16cm
China
8431390000
Product Description

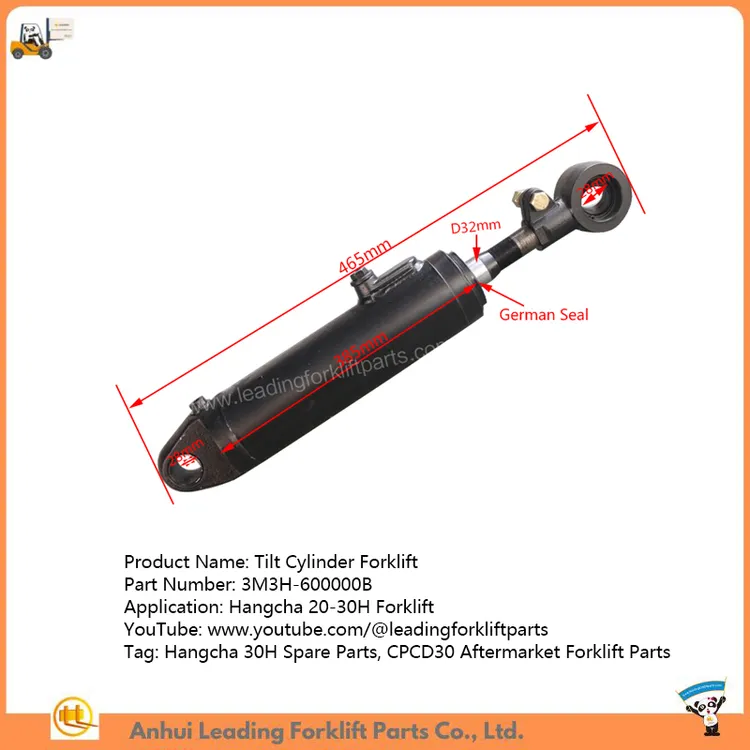

Product Title: Tilt Cylinder Forklift
Product Model: 3M3H-600000B
Here are other forklift cylinders below for your choice:
Function of Tilting Cylinder of Forklift
In order to quickly and easily pick up the goods, the forklift mast must be tilted forward. When handling goods, in order to prevent the goods from falling, it is necessary to tilt the forklift mast backward to ensure the stability of the goods. The forward and backward tilting of the forklift mast is done by the forklift tilting cylinder.
The forklift tilting cylinder has two oil holes that can be used as inlet and outlet oil ports. The forklift tilting cylinder has two cavities as front cavity and rear cavity separated by a piston.
Specifications Tilting Cylinder of Forklift
Product Model: 3M3H-600000B
| Item | Description |
| P/N | 3M3H-600000B |
| Product Name | Tilt Cylinder Forklift |
| Applied Model | Hangcha 20-30H Forklift |
| Net Weight (kg) | 11.4 0.05 |
| Gross Weight (kg) | 12 |
| Qty per Carton | 1 |
| Carton Size (cm) | 60*16*16 |

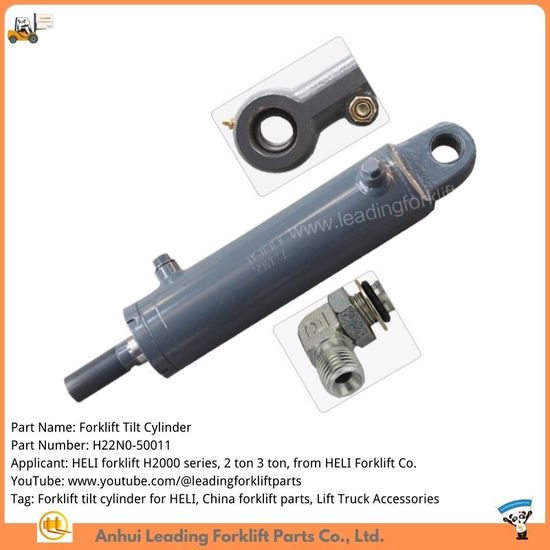

Here are other forklift cylinders below for your choice:
Function of Tilting Cylinder of Forklift
In order to quickly and easily pick up the goods, the forklift mast must be tilted forward. When handling goods, in order to prevent the goods from falling, it is necessary to tilt the forklift mast backward to ensure the stability of the goods. The forward and backward tilting of the forklift mast is done by the forklift tilting cylinder.
The forklift tilting cylinder has two oil holes that can be used as inlet and outlet oil ports. The forklift tilting cylinder has two cavities as front cavity and rear cavity separated by a piston.
Specifications Tilting Cylinder of Forklift
| Forklift cylinder | Series | Matched tonnage | Lift height | Bore mm | Dia of rod | Pressure Mpa |
| Lift cylinder | 0.5-10T | 2-7.5 | 40-100 | 40-100 | 16-5 | |
| Full free lift cylinder | 1-10T | 2-12.5 | 40-160 | 40-160 | 16-25 | |
| Tilt cylinder | 1-10T | 63-115 | 30-50 | 16-25 | ||
| Steering cylinder | 4-10T | 40-85 | 50-115 | 9-16 |
