FP-1.5TH-B680
Best
12months
Q345 Steel
Polishing
Customized
Standard
II
1.5t
225-645mm
Riggerte
Wooden Case for Export
China
84312090

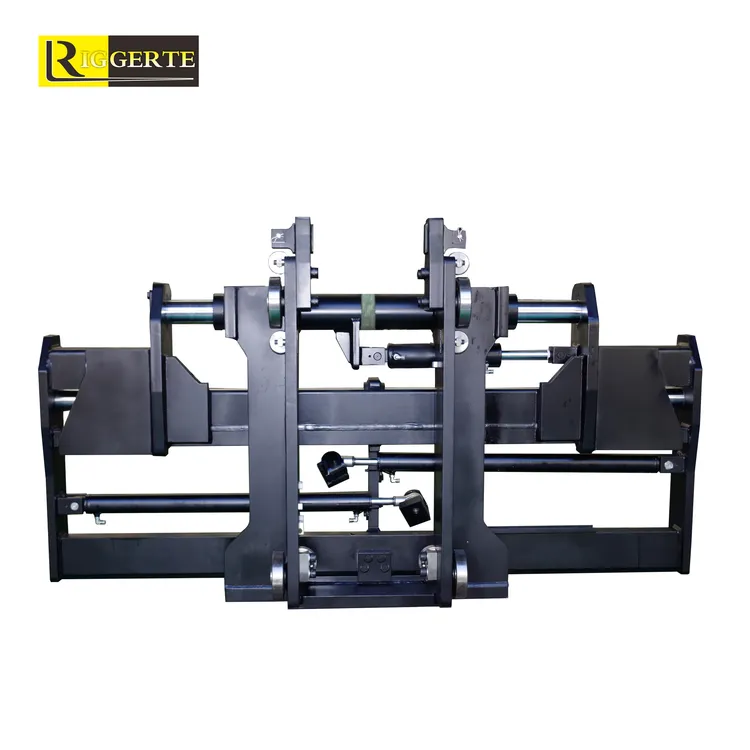

Product Description
Fork positioners are one of the most important forklift attachments for diesel and electric forklift trucks.Fork positioner attachment allow forklift operators to adjust forks quickly and accurately to handle different width materials.Forklift operators are able to operate forklift control levers to adjust forks distances without getting off forklift truck and leaving their seats. Side shifting function is optional.Riggerte fork positioners can be installed on all brands forklifts.
| Catalog Order No. | Capacity (kg@mm) | Mounting Class | Opening Range (mm) | Min. Carriage Width (mm) | Fork Pocket Width (mm) | VCG (mm) | Weight (kg) | ET (mm) | HCG (mm) |
| FP-4.6TF-S900 | 4600@600 | III | 50-900 | 940 | 150 | 350 | 140 | 75 | 35 |
| FP-4.6TF-S1090 | 4600@600 | III | 50-1090 | 1040 | 150 | 350 | 160 | 75 | 35 |
| FP-5.5TF-S1090 | 5500@600 | IV | 100-1090 | 1040 | 150 | 370 | 190 | 75 | 45 |
| FP-5.5TF-S1400 | 5500@600 | IV | 100-1400 | 1200 | 150 | 370 | 230 | 75 | 45 |
| FP-7TH-S1090 | 7000@600 | IV | 100-1090 | 1170 | 150 | 370 | 200 | 75 | 40 |
| FP-7TH-S1400 | 7000@600 | IV | 100-1400 | 1200 | 150 | 370 | 200 | 80 | 45 |
| FP-7.5TH-S1090 | 7500@600 | IV | 100-1090 | 1400 | 150 | 420 | 220 | 80 | 45 |
| FP-7.5TH-S1400 | 7500@600 | IV | 100-1400 | 1400 | 150 | 420 | 260 | 80 | 40 |
Customized requirements please contact us!
| Catalog Order No. | Capacity (kg@mm) | Mounting Class | Opening Range (mm) | Min. Carriage Width (mm) | Fork Pocket Width (mm) | VCG (mm) | Weight (kg) | ET (mm) | HCG (mm) |
| FP-2.5TK-S900 | 2500@600 | II | 50-900 | 890 | 100 | 220 | 65 | 60 | 30 |
| FP-2.5TK-S880 | 2500@600 | II | 50-880 | 890 | 100 | 220 | 60 | 60 | 30 |
| FP-3TK-S1030 | 3000@600 | III | 50-1030 | 1040 | 125 | 25 | 85 | 65 | 30 |
| FP-3TK-S980 | 3000@600 | III | 50-980 | 940 | 125 | 250 | 85 | 65 | 30 |
| FP-3TK-S950 | 3000@600 | III | 50-950 | 940 | 125 | 250 | 80 | 65 | 30 |
