SQ10SU3
Long-Term Local After-Sales Service
1 Year
CE, ISO9001
New
16m
10ton
Three-Arm
Straight Arm
Mini Truck Mounted Crane
4 Sections
14.05m
75 Degree
Hydraulic System
Jib, Top Seat, Wireless Remote Control, Cabin,...
Construction,Agriculture,Forestry,Railway,Ports...
Safe and Reliable
Selected
BOB-LIFT, Accept OEM
Wooden Packing
2500*1300*2500(mm)
Xuzhou, Jiangsu
84269100
Product Description
[Product Parameter]
| SQ10SU3 Truck Mounted Crane | ||
| Max Lifting Capacity | Ton | 10 |
| Max Lifting Moment | Ton.m | 25 |
| Recommend Power | KW | 30 |
| Hydraulic System Flow | L/min | 63 |
| Hydraulic System Pressure | MPa | 25 |
| Oil Tank Capacity | L | 160 |
| Installation Space | mm | 1200 |
| Self Weight | kg | 3900 |
| Rotation Angle | ° | 360 |

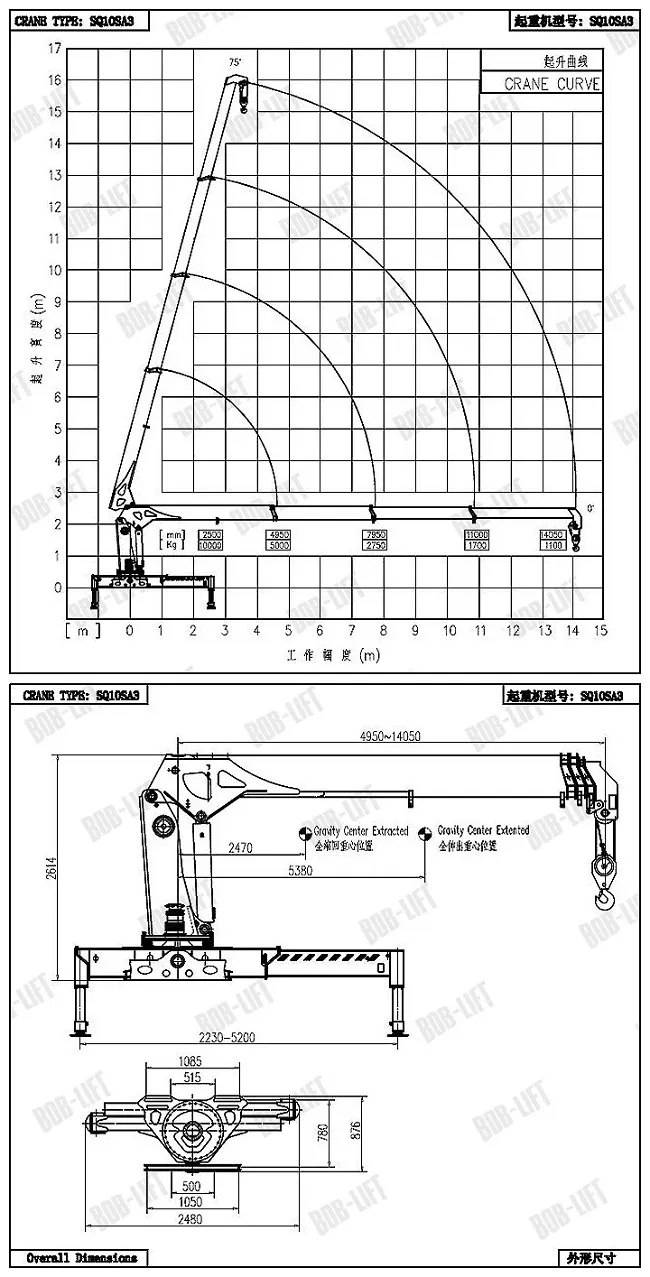

[Product Lifting Curve]
[Packing and Shipping]
[Overseas Successful Projects]
[Company Information]

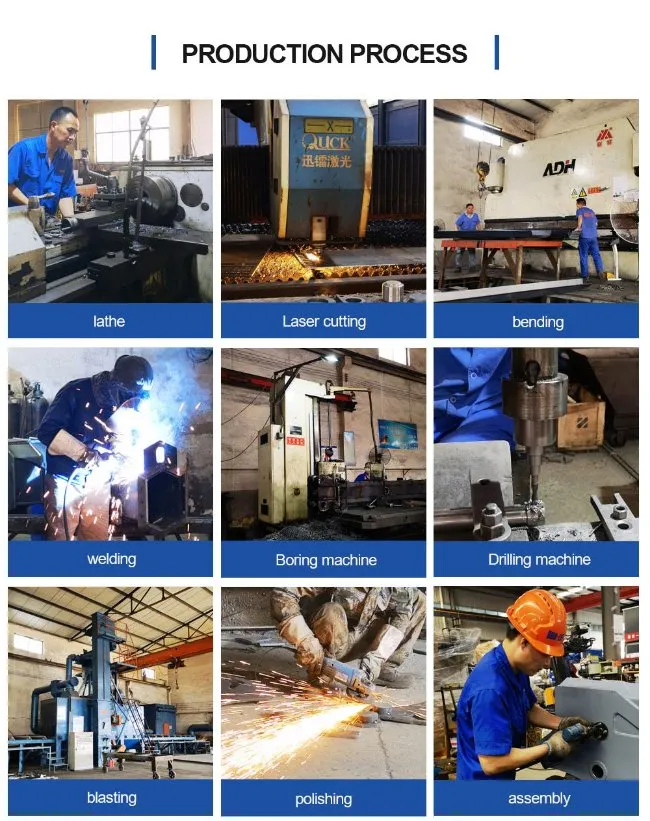

[Production Process]
[Certificate]
[Customer Visiting]
[FAQ]1) How many years of your factory?
We have 18 years production and nearly 10 years experience, we exported to more than
50 countries & regions.
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.
3) How about the delivery time?
In General, 20-40 working days after received 30% T/T or L/C.
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
Yes for sure my friend.
7) Optional Attachment?
Wireless Remote Control, Non-insulated Basket, Auger Drill, Grab Bucket, Top Seat,
Rear Outriggers, Moment Limited Valve, Over-Winding Protection
8) Package
If FCL, the plastic film package is Ok.
If LCL, suggest wooden case package for good protection.
