Double Girder Gantry Crane with Electric Hoist
A gantry crane is a type of overhead crane with a single or double girder configuration supported by freestanding legs that move on wheels or along a track or rail system. Gantry cranes are usually considered when there is a reason not to incorporate an overhead runway system.
These are typically used for an outdoor application or below an existing overhead bridge crane system. Unlike a bridge crane, a gantry crane does not need to be tied into a building's support structure-eliminating the need for permanent runway beams and support columns. In some cases, this can result in a significant reduction in material costs and can be a more cost-effective solution compared to a similarly specified bridge crane.
Larger gantry systems may run on a rail or track embedded in the ground, typically in a straight line in a dedicated work area. Smaller portable gantry systems run on castors or wheels and can be moved about a facility for maintenance or light fabrication work.

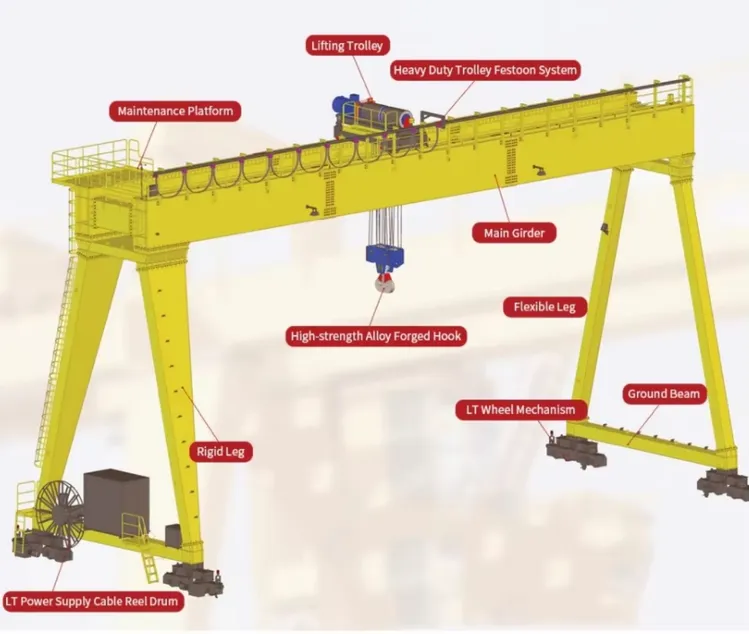

Components of Double Girder Gantry Crane:
Double girder gantry crane is mainly consisted of gantry frame, i.e. main double girder, legs, bottom end beams, lifting mechanism, travelling mechanism, and electrical control. It can be designed with two hanging arms, one hanging arm or no-hanging arm according to client's lifting requirements and application environment.
Application:
Double girder gantry crane is regular crane, designed for general material handling , which is frequently used at open ground, warehouse, ports, granite industry, cement pipe industry, open yard, container depots and shipyards, etc. However, it is forbidden to handle melt metal, inflammable or explosive objects.
| Condition | New |
| Type | double Girder Gantry Crane |
| Load Capacity | 0.5T-50T |
| Lifting Height | 3-30m or customized |
| Traveling Speed | 0-30m/min |
| Working Class | A3-A8 |
| Origin | China |
| Working Temperature | -20-45ºC |
| Way to Control | Pendant Push Control/Wireless Remote Control |
| Specification | CE,ISO |
| HS Code | 8426112000 |
| Safety Device | Buffer,Current Overload Protection,Overload Device,Power Failure Protection |
| Application Area | production and manufacturing, logistics and warehousing, construction sites, ship repair and marine engineering,etc. |
Product Configuration
Factory Workshop
Main Girder
Leg
End truck
Electric Hoist
We provide quality, safe and stable products to meet the highest industrial standards.We are ISO9001: 2008 and TUV certified manufacturer, our products are CE, GS, SGS certified, serving all spheres of industry in the world.
Gantry cranes are mainly used in the fields of production and manufacturing, logistics and warehousing, construction sites, ship repair and marine engineering, and special environmental operations.
