SSDHL0.5t+0.5t
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane, All Situations
Electric Hoist
Chain
6.6m/Min
3-130m
2
CE, ISO9001:2000, GS, SGS
New
Standard Orange or Be Customized.
-25 to 45 Degree
Wireless
81dB
Japan NSK Brand
IP55 for Hoist Body,IP65 for Push Button Control
Made in Taiwan
2 Years for Mechanical Parts, 1 Year for Electric
200~690V,50/60Hz,3 Phase
ISO:M5,Fem:2m
Heat Forging+Heat Treatment
TXK
Plywood Case
CE, SGS, ISO9001, GS
China
8425110000
Product Description
Double hook hoist 1 ton with 8 point button switch
Technical Parameters:
| Model | Capacity(t) | Lifting speed (m/min) | Motor power (Kw) | Rotation speed (r/min) | No.of chain | Spec.of load chain |
| SSDHL0.25t+0.25t | 0.5t | 7.2 | 0.8 | 1400 | 2*1 | 6.3 |
| SSDHL0.5t+0.5t | 1t | 6.6 | 1.5 | 7.1 | ||
| SSDHL1t+1t | 2t | 6.6 | 3.0 | 10.0 | ||
| SSDHL1.5t+1.5t | 3t | 5.4 | 3.0 | 10.0 | ||
| SSDHL2.5t+2.5t | 5t | 2.7 | 3.0 | 11.2 |
Product Details:
- Shell: Aluminum alloy
- Gear: High Precision Level 7

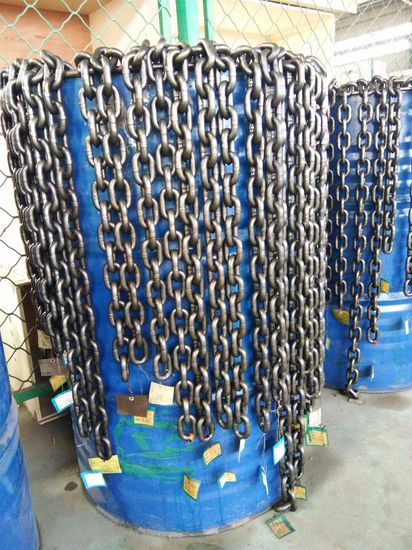

- Chain: Japan FEC G80
- Hooks: heat forging+heat treatment
- Bearing: Japan NSK Brand
- Gearbox: CNC Machining
- Contactor: Eaton from USA / Schneider from Germany
- Steel Parts: Q345
- Hoist Panels: Processed by grinding machine
- Chain Wheel: QT600
- Button Switch: 4/6/8 buttons option ,made in Taiwan.Protection class: IP65
- Chain Container: Canvas / Sheet iron
- Aluminum Parts(material): Casting Aluminum NO.ADC12Chain Wheel
- Warranty: 2 years for mechanical parts, 1 year for electric parts
- Usage: Gantry Crane,Bridge Crane,Lifting Platform,Workshop,Construction Buliding .
The Package:
The Practical Application:
They are widely used in double beam crane,gantry crane,bridge crane,single grinder crane ,lifting platform ,workshop,construction buliding,etc.
The Certificate:
Our company obtained the approval of ISO9001 and CE certification from Europe,and our products have been exported to Europe,America,the Middle East,Africa and Southeast Asia.We become both domestic and foreign clients to select TXK hoisting equipment and establish long-term business relationship with us.
Other Presentation:
FQA:
Q: What's MOQ?
A: MOQ can be 1 set.
Q: How about your payment terms?
A: 30% deposit, the balance after B/L copy, we accept T/T and L/C at sight.
Q: What information should I provide if I want to order the products?
A: The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, lift height, power source or other specials you give us will be more appreciated.Inquiry now!
Q: What is your lead time for your goods?
A: Normally 20 days after confirmed order, 15 days could be available for some items in sufficient stock and standard requirements.
