SSDHL03-01/SSDHL03-02/SSDHL03-03
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane, Electric Chain Hoist
Electric Hoist
Chain
2~8m/min
120m
2
CE, ISO9001:2000
New
Orange
3 Ton
M4
IP54
6.9/2.3 M/Min
1440r/Min
F
3p 220V-690V
24V/36V/48V
1
Orange,Blue,Red,Yellow
TXK
Non Fumigation Wooden Case
3ton
Jiangsu, China
8425110000
Product Description
Wholesale Low Price High Quality Professional 0.5Ton to 50Ton Electric Chain Hoist
Technical parameters| Model | SSDHL | ||||||||||
| 0.25-01S | 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | 03-03S | 05-02S | |
| Capacity(t) | 0.25t | 0.5t | 1t | 1.5t | 2t | 2.5t | 3t | 5t | |||
| Lifting Speed(m/min) | 7.2 | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 |
| Motor Power(Kw) | 0.8 | 0.8 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 1.5 | 3.0 |
| Rotation Speed (r/min) | 1440 | ||||||||||
| Insulation Grade | F | ||||||||||
| Power Supply | 3P 220V ~ 690V | ||||||||||
| Control Voltage | 24V/36V/48V | ||||||||||
| No. of Chain | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec. of Load Chain | ø6.3 | ø6.3 | ø7.1 | ø10.0 | ø10.0 | ø7.1 | ø11.2 | ø11.2 | ø10.0 | ø7.1 | ø11.2 |
| Net Weight(Kg) | 68 | 47 | 61 | 108 | 115 | 73 | 115 | 122 | 131 | 85 | 151 |
Packaging Details: Plywood Cases (Fumigation-free packing)
Shipping Details: 7 Days Rapid Delivery
Product Description
TXK Electric Chain Hoist
1. Aluminum alloy shell , light but hard .
2. G80 Load chain or Japan FEC 80 load chain, can be used in poor invironment .
3. Hook: be hot forged with perfect strength , hard to break .

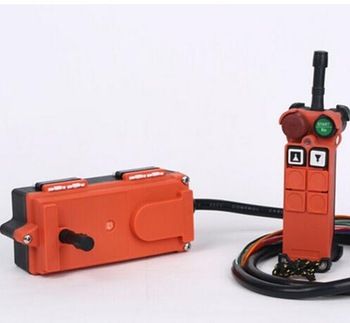

4. Push button, remote control : imported from Taiwan .
5. 3 phase electric chain hoist & Single phase electric chain hoist is optional
