SSDHL03-03MS
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane, All Situations
Electric Hoist
Chain
2.2m/Min
3-130m
3
CE, ISO9001:2000, GS, SGS
New
Standard Orange or Be Customized.
-25 to 45 Degree
Wireless
81dB
Japan NSK Brand
IP55 for Hoist Body,IP65 for Push Button Control
Made in Taiwan
2 Years for Mechanical Parts, 1 Year for Electric
200~690V,50/60Hz,3 Phase
ISO:M5,Fem:2m
Heat Forging+Heat Treatment
TXK
Plywood Case
CE, SGS, ISO9001, GS
China
8425110000
Product Description

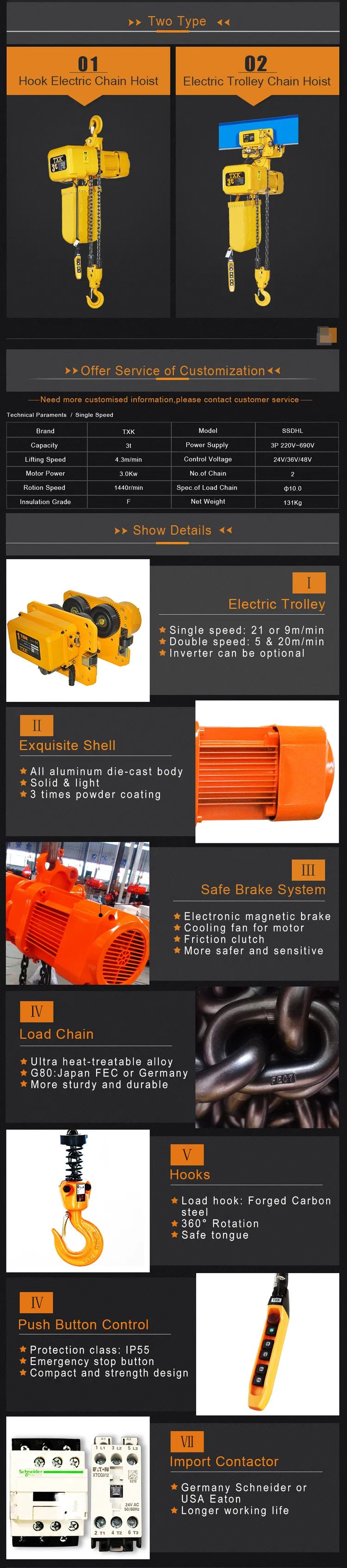

TXK 3 ton electric crane hoist with 2.2m/min low speed
| Single Speed | Technical Parameters | |||||||
| Model | 0.25-01M | 0.5-01M | 01-01M | 02-01M | 02-02M | 03-01M | 03-02M | 05-02M |
| Capacity(T) | 0.25 | 0.5 | 1 | 2 | 2 | 3 | 3 | 5 |
| Lifting Model | Inverter | Inverter | Inverter | Inverter | Inverter | Inverter | Inverter | Inverter |
| Lifting Speed(M/Min) | 0.91-9.1 | 0.83-8.3 | 0.63-6.3 | 0.69-6.9 | 0.32-3.2 | 0.66-6.6 | 0.43-4.3 | 0.33-3.3 |
| Motor Power(Kw) | 0.56 | 0.9 | 1.5 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 |
| Rotation Speed(R/Min) | 1440 | |||||||
| Insulation Grade | F | |||||||
| Working Grade | M5 | |||||||
| Protection Grade | IP55 | |||||||
| Power Supply | 3P 220V-690V | |||||||
| Control Voltage | 24V/36V/48V | |||||||
| No. Of Chain | 1 | 1 | 1 | 1 | 2 | 1 | 2 | 2 |
| Spec. Of Load Chain | φ4.0 | φ6.3 | φ7.1 | φ10.0 | φ7.1 | 11.2 | φ10.0 | φ11.2 |
