CB-B 5.0Tx3.0M
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane, Warehouse,Workshop,Plant,Construction,Logistics
Chain Hoist
Chain
<2m/min
>20m
2
CE, ISO9001:2000, GS,TUV,SGS
New
Standard Orange or Be Customized.
500 Kg to 30 Ton
1.25 Times
Hook Suspension
3meters as Standard
Manual
6.25 Ton
40X21X35 Cm
41 Kg
5.6 Kg
10.0 mm
TXK
Carton, Plywood Case, Pallet
500kg to 10ton
China
8425190000
Product Description
Factory Supply 5 Ton Cheap Portable Stage Manual Chain Hoist
Techinical Parameters:
| Model | CB-B | |||||||||
| Capacity(ton) | 0.25 | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 7.5 | 10 | |
| Standard lifting height(m) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | |
| Running Test Load(ton) | 0.3125 | 0.625 | 1.25 | 1.875 | 2.5 | 3.75 | 6.25 | 9.375 | 12.5 | |
| Headroom H(mm) | 280 | 345 | 376 | 442 | 470 | 548 | 688 | 765 | 765 | |
| Effort to required to lift max. load(N) | 226 | 235 | 245 | 255 | 324 | 363 | 353 | 373 | 380 | |
| Load Chain Dia. (mm) | Columns | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 | 4 |
| Dia+Pitch | 4×12 | 5×15 | 6×18 | 7×21 | 8×24 | 10×28 | 9×27 | 9×27 | 9×27 | |
| Dimension(mm) | A | 121 | 148 | 172 | 196 | 210 | 255 | 280 | 433 | 463 |
| B | 114 | 132 | 151 | 173 | 175 | 205 | 189 | 189 | 189 | |
| C | 24 | 25 | 30 | 33 | 35 | 40 | 42 | 56 | 56 | |
| D | 31 | 31.5 | 37.5 | 42.5 | 45 | 50 | 53 | 85 | 85 | |
| Net Weight(kg) | 6.5 | 9.3 | 12.2 | 16.5 | 19.5 | 32 | 41.1 | 61.6 | 75.7 | |
| Extra Weight per meter of extra lift(kg) | 0.81 | 1 | 1.29 | 1.61 | 1.92 | 2.68 | 4.1 | 5.86 | 7.73 | |
Company Profile:
TXK was founded in 1997 with 1.5 million USD registered fund in the very beginning and grow up as a leading manufacturer of electric chain hoist, manual chain hoist, electric wire rope hoist and various lifting and material handling equipment with more than 15 years experience and hard work.Our factory cover an area of 66000 square meters, the biggest workshop in the electric hoist industry in China.
Spare Parts:

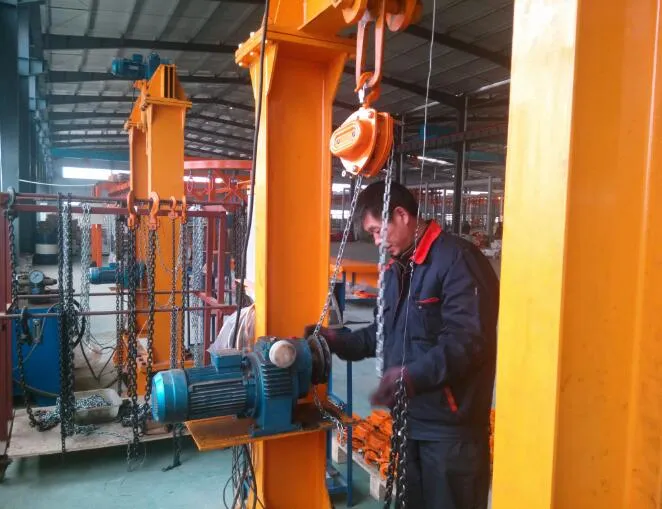

Testing Work:
Package Details:
Carton boxes are neatly placed in the workshop, and each plywood case comes with operating instruction, inspection report, packing order.
When the capacity reaches 3 ton,we use plywood case.
When you order 3 sets or more quantity,we usually use a pallet to prevent the goods from damage.This will be easy to arrange shipment.
International Fair:
We establish a global marketing network with exportation to Germany,Norway,Poland,United States,Canada,Mexico,Peru,Brazil,Argentina,Egypt,Saudi Arabia,South Africa,India,Indonesia, Malaysia and total more than 50 countries and regions.We become both domestic and foreign clients to select TXK hoisting equipment and establish long-term business relationship with us.
Why Choose Us ?
We have:
1.Almost 20 years' experiences.
2.More than 10 years experience in international trade business.
3.More than 56,000 square meters territory.
4.Most efficient producing line which handle by skillful workers.
5.Full Certificates such as CE,GS,TUV,ISO,SGS,etc.
6.High reputation in Europe,America,the Middle East,Africa and Southeast Asia.
We are:
The NO.1 sale in domestic for 5 consecutive years.
The No.1 export sales in the same industry for 5 con consecutive years.
