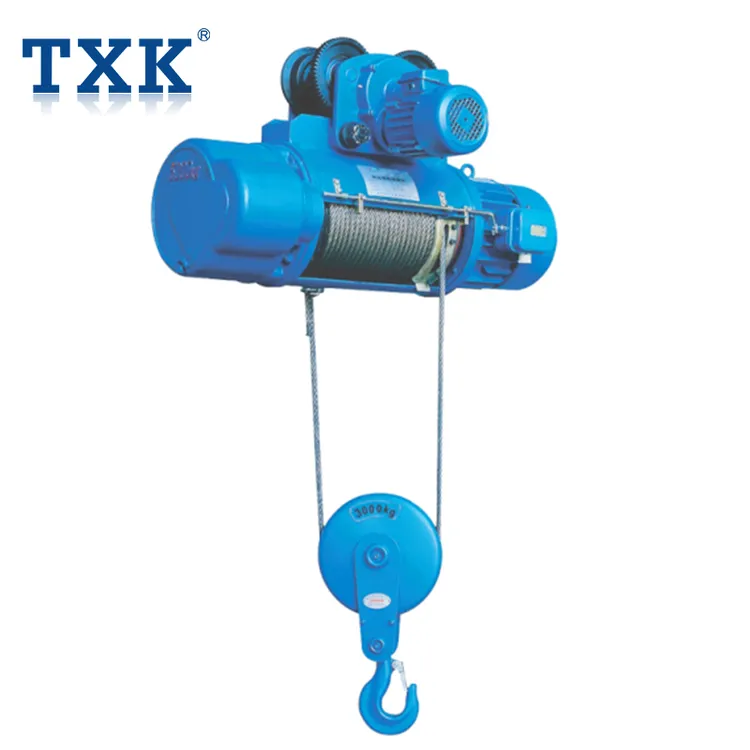

Features:
Motor: Motors with limiter in both up and down directions. And the motor is Conic rotor brake motor,
in order to adapt to the frequent direct start in the intermittent work.
Reducers: Its reducers with hard gear surface and adopt 3 level helical gears to slow down the speed, so it will have long life
and high mechanical efficiency.
Main electric parts: adopts top quality and famous brand: Siemens brand.
Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on
ball or roller bearings, to ensure smooth, low-friction operation.
Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may
not uncoil even when the Hoist is in unloaded condition.
Hook: The hook is closed type with high safety; it wrought with special high quality steel.
Rope drum: It made of cast iron and seamless steel tube, its shell is welded with steel plate. The drum device is the central part of hoist.
Technical Parameters
| Model | 0.25TON | 0.5TON | 1TON | 2TON | 3TON | 5TON | 10TON | |
| Lifting capacity(t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | |
| Lifting height(m) | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | |
| Lifting speed m/min | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 7(7/0.7) | |
| Running speed(m/min) | 20(30) | |||||||
| Rope size | 6×19-3.6 | 6×37-4.8-180 | 6×37-7.4-180 | 6×37-11-155 | 6×37-13-170 | 6×37-15-200 | 6×37-15-200 | |
| Rail beam | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c | |
| Min.radius of ring rail (m) | 0.8 | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 3.5-9 | |
| Voltage (v) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | |
| Frequency (hz) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Phase | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |

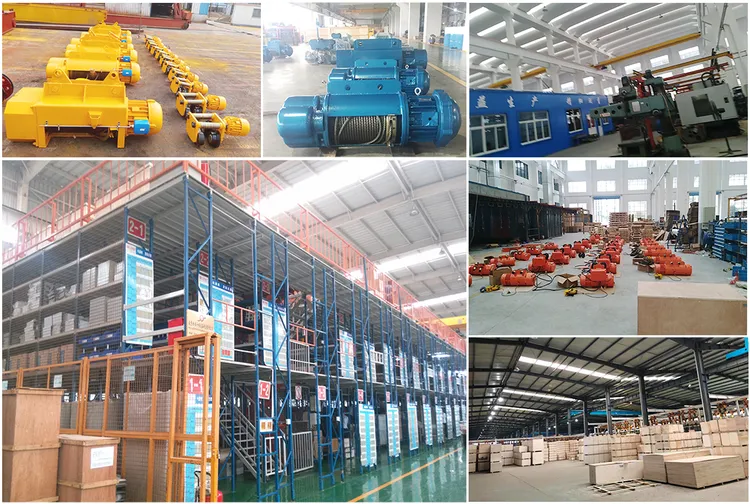

Company Profile
TXK was founded in 1997 and is a leading manufacturer of lifting and material handling equipments with almost 20 years experience. We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001:2008 certified company, our products are GS, CE certified, serving all spheres of industry in the world.
Our brand TXK is well sold in more than 50 countries worldwide and has earned an enviable reputation for high quality products. With our professional R&D team, we are able to provide customization services with the most professional quality and never stop meeting the highest standard of safety.
TXK will never stop being as an innovation manufacturer. We will continue to develop and extend our products range with high quality, safety standard and long life usage.
