YF-TDN10Z
251-350W
36V
Lithium Battery
20"
Brushless
Aluminum
CE, EN15194
Folded
20-40km/h
31-60km
En15194, Sii
Jinhua yifei
Carton
TUV EN15194, sii
Jinhua
8711901010

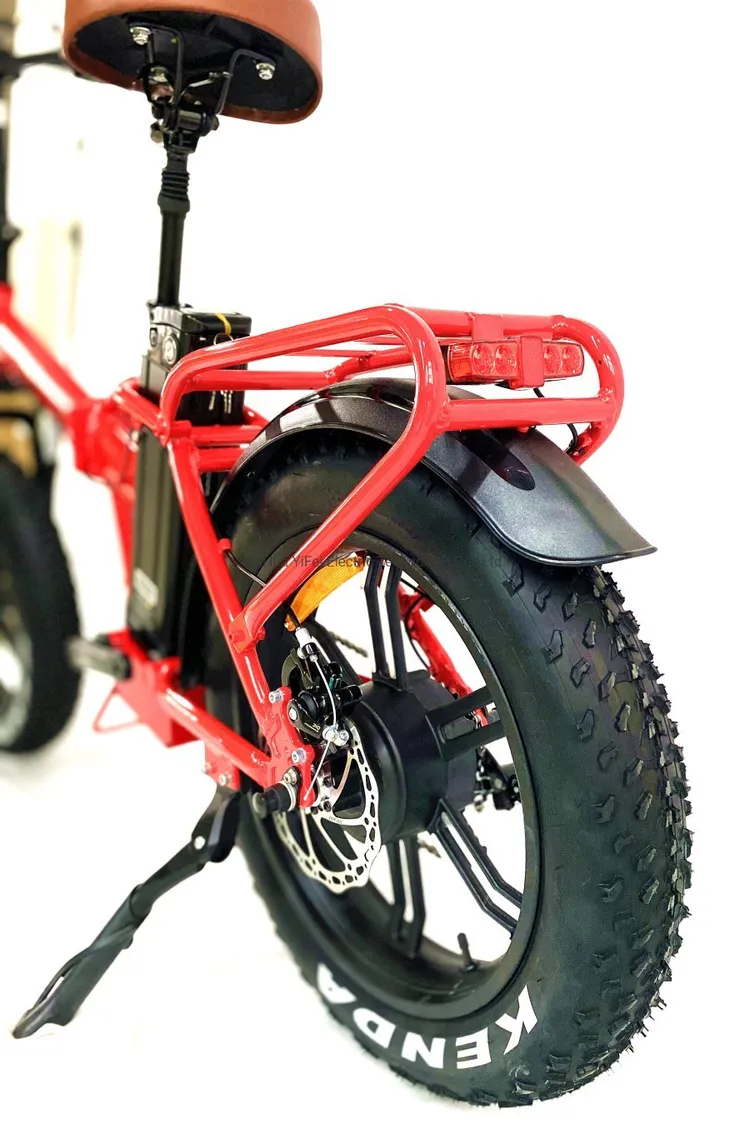

Product Description
| Model | TDN01Z | |
| Electric parts | ||
| Battery | Lithium-ion 36V/10Ah | |
| Charger | AC 110V-240V, intelligent charger with automatic disconnection when the battery full charged | |
| Motor | Rear brushless hub motor 36V/250W | |
| Display | Multi-function LCD display, for a complete management of your electric bike | |
| PAS | Intelligent pas assistant system 1:1 (Throttle on request) | |
| Brake lever | Tektro brand,power cut-off automatically when braking | |
| Lights | Spanninga LED lights, managed by display or with inner batteries | |
| Mechanical parts | ||
| Frame | 6061#Aluminum alloy | |
| Brakes | Front and Rear disc brake | |
| Fork | TGS/RST brand suspension | |
| Rim | Aluminum double wall | |
| Wheel | Kenda 20 inch X 2.125 | |
| Spokes | Nipples and spokes in stainless steel | |
| Seat | VELO Ergonomic and soft | |
| Seat post | Aluminum foldable | |
| Gear set | SHIMANO 6 gears; derailleur protector included | |
| Pedals | Wellgo foldable | |
| Mudguards | PVC in black | |
| Colors | All the series of matt, pearlised and metallic colors; double colors on request available | |
| Parameters | ||
| Max Speed | 25km/h(EU),32km/h(US & CA) | |
| Mileage per charge | >50km/charge | |
| Charge time | 4-6H | |
| Charge life | >=500times | |
| Carton size | 145*26*65cm | |
| N. W/G.W | 25kg/29 kg, battery included | |
| Container loading | 20"FCL 110pcs / 40"FCL 270pcs | |
| Extra parts | Front basket,Helmet,Alarm,Mitten,Rear-view mirror,LCD display,Pedals,Saddles,Tool bag, etc | |
Electric parts:
Battery : Lithium-ion 36V/10Ah
Charger : AC 110V-240V, intelligent charger with automatic disconnection when the battery full charged
Motor : Rear brushless hub motor 36V/250W
Display : Multi-function LCD display, for a complete management of your electric bike
PAS : Intelligent pas assistant system 1:1 (Throttle on request)
Brake lever : Tektro brand,power cut-off automatically when braking
Lights : Spanninga LED lights, managed by display or with inner batteries
Merchanical parts:
Frame : 6061#Aluminum alloy
Brakes : Front and Rear disc brake
Fork : TGS brand suspension
Rim : Aluminum double wall
Wheel : Kenda 20 inch X 2.125
Spokes : Nipples and spokes in stainless steel
Seat : Ergonomic and soft
Seat post : Aluminum foldable
Gear set : SHIMANO 6 gears; derailleur protector included
Pedals : Wellgo foldable
Mudguards : PVC in black
Colors : All the series of matt, pearlised and metallic colors; double colors on request available
Parameters:
Max Speed : 25km/h(EU),32km/h(US & CA)
Mileage per charge : >50km/charge
Charge time : 4-6H
Charge life : >=500times
Carton size: 145*26*65cm
N. W/G.W : 25kg/29 kg, battery included
Container loading: 20"FCL 110pcs / 40"FCL 270pcs
Extras: Front basket,Helmet,Alarm,Mitten,Rear-view mirror,LCD display,Pedals,Saddles,Tool bag, etc
Our advantages:
- Light-weight aluminum alloy frame
- Low noise,smooth operation brushless motor
- Long life lithium battery
- Quick response within 12Hours
- OEM service available (Customer's logo,design,manual,colors,components)
- Rich experience in exporting
