TF3000, TF3000, F5000
7*24
1 Year
Wellhole
5000kg-20000kg
0.25m/S-1.5m/S
AC
Automatic
Hydraulic/ Traction
With Deceleration Device
T Guide
Center Opening Door
Single
Without Attendant
ISO/ CE/ Eac
Hydraulic Elevator, Electrical Traction
Vvvf
Support
MACRO
Wooden Box
China
8428101090
Product Description
The optimized designed car of the cargo elevator is spacious and bright, economical and practical, making cargo transportation convenient and fast, safe and reliable, with balanced operation, large load capacity and other excellent qualities. It can meet the needs of customers in different uses and environments such as factories, warehouses, shopping malls, shopping malls, libraries, etc. It is the best freight transport tool.

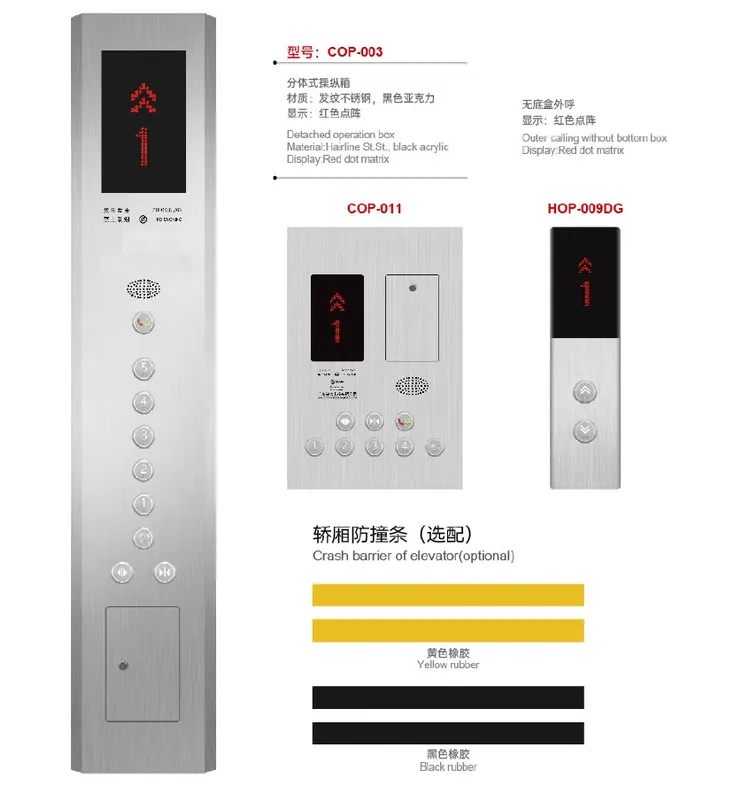

COP/ LOP
Landing Door
Technical Advantages Traction system
The traction host of the TF1000 series freight elevator is designed according to vertical logistics requirements and can fully meet various load requirements. Vector closed-loop control technology can fully meet the dynamic adjustment requirements, and the elevator runs smoothly and accurately, significantly improving the elevator's response speed and comprehensive performance.
Energy saving and comfort
The use of VVVF speed regulation technology greatly reduces the power supply capacity, saves nearly 40% energy than traditional AC two-speed technology, and minimizes elevator power consumption. This technology can not only adjust the elevator speed, but also has constant torque characteristics, regardless of the load, which can greatly improve the comfort of elevator operation, leveling accuracy and reduce operating noise.
Sturdy structure, large door spacing
The multi-folding hall car door is adopted to achieve the maximum door opening width, which facilitates the entry and exit of large goods; the stronger car bottom can reliably bear all kinds of goods, and the accurate weighing device controls the load to prevent overloading.
Application Environment
Factories, museums, exhibition halls, auto shops, warehouses, parking garages
Maximum capacity 30000kg
| Model | Capacity (kg) | Speed (m/s) | Car Size CW*CD*CH (mm) | Door Opening Size OP*OPH (mm) | Shaft Size HW*HD (mm) | OH (mm) | PT (mm) | Rated Power (kw) |
| F3000 | 1000 | 0.5-1.0 | 1400*1600*2200 | 1200*2100 | 2300*2200 | 4500 | 1500 | 7.5-11 |
| 2000 | 0.5-2.0 | 1900*2100*2200 | 1600*2100 | 2900*2700 | 4500-4800 | 1500-1800 | 11-18.5 | |
| 3000 | 0.5-2.0 | 2200*2500*2200 | 1700*2100 | 3300*3200 | 4500-4800 | 1500-1800 | 15-22 | |
| 4000 | 0.5-2.0 | 2500*2800*2200 | 2000*2100 | 4000*3500 | 4500-4800 | 1500-1800 | 18-35 | |
| TF3000 | 2000 | 0.5-1.0 | 1900*2100*2200 | 1600*2100 | 2900*2700 | 4500 | 1500 | 11-18.5 |
| 3000 | 0.5-1.0 | 2200*2500*2200 | 1700*2100 | 3300*3200 | 4500 | 1600 | 15-22 | |
| 5000 | 0.5-1.0 | 2800*3100*2200 | 2400*2100 | 4200*3800 | 4500 | 1800 | 18-35 | |
| F5000 | 8000 | 0.25-0.5 | 2800*4500*2200 | 2600*2100 | 4400*5200 | 4800 | 1800 | 30-45 |
| 10000 | 0.25-0.5 | 3000*5300*2200 | 2700*2100 | 4600*6000 | 4800 | 1800 | 30-45 |
