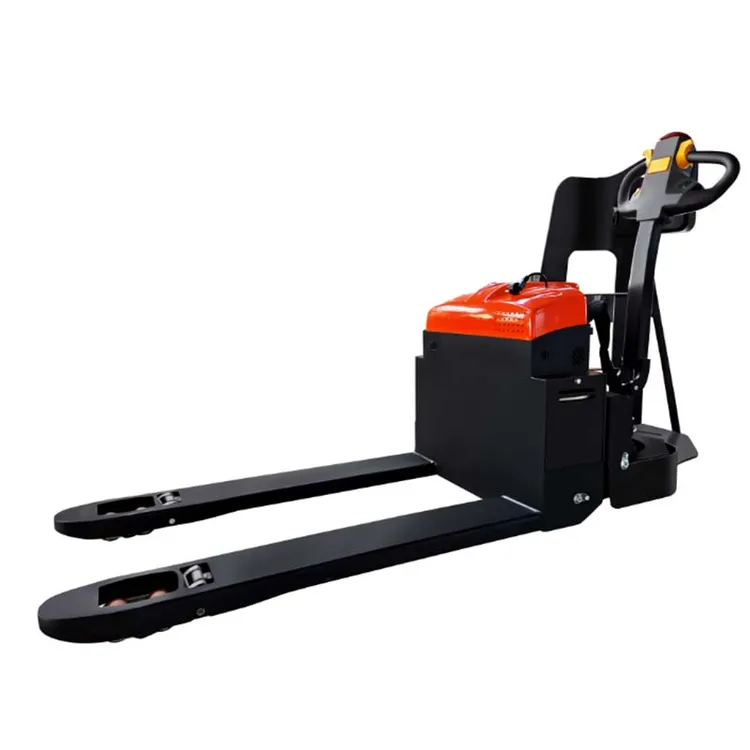

MINGYU Semi Electric Hand Jack Battery Hydraulic Power Pallet Truck for Forklift
| Tramp type | |||
| Model | CBD15 | max. lifting height | 200MM |
| Power source | Electric | fork lowing height | 80MM |
| Load capacity | 1500KG | fork length | 1160MM |
| Outline dimension | 1750x690x1130mm | single fork width | 165MM |
| Steering type | Mechanical | fork outside width | 680MM |
| Battery type | Lead-acid maintenance-free battery | min. ground clearance | 30MM |
| Operation type | Mechanical | turning radius | 1475MM |
| Weight unladen | 232KG | driving speed | 4/4.5km/h |
| Load capacity | 1500KG | lifting speed | 50/60km/h |
| Load centre distance | 600MM | declining speed | 45/40km/h |
| wheel base | 1360MM | max. grade ability | 6/15% |
| drive wheel size | 210*70MM | drive motor power | 0.75 |
| bearing wheel size | 80*60MM | lifting motor power | 0.8 |
| balance wheel size | 70*40MM | battery voltage | 2*12*70v/Ah |
Electric drive and electric lift, increase productivity.
It also combines the compact size of a Hand Truck with ease of movement to make it well suited for small spaces. It is easy to use and requires virtually no maintenance.
This truck will eliminate the strain from pulling and pushing a Hand Truck. This 1500kg capacity machine is another step towards an ergonomic
Suitable for indoor applications such as stores, back of store, supermarkets, light industry, hospitals, pharmacies, libraries etc.
Equipped with maintenance-free Lithium battery 25AH for easy replacement. 2 hours quick charge as option.
Equipped with electromagnetic brake, it can stop on the slope.
Tandem fork rollers as standard configration, and with additional supporting wheels.
1. Safety: Auto Curve Speed-reduced function;
2. Anti-roll back prevents uncontrolled traveled speed or roll-back on ramps when loading and unloading;
3. The small ground clearance, to protect the operator;
4. High-strength frame design, suitable for tough workplaces, ensures longer service life;
5. Vertical motor ensures convenience inspection and maintenance of motor and brake, provide much better maintainability than horizontal motor.
Advantages:
Capacity :1500kg
Excallent quality and performance come from advanced design and strick quality control
Optional of PU/Rubber wheels ,also single /tandem wheels can be chosen
Stable galvanized casting hydraulic pump, robust and durable ,with good control of loweing speed / over load vale
Ergonnomically designed handle with com fortable rubber grip make operatiob safe and comfortable
Wheels:
Diffrent coating material for both steering wheel and loading wheel
PU(polyurethane)wheel :ldeal for delicate floors with hard wearing and non -marking property ,quiet and durable.
Nylon wheel :low drag effort, high resistance to chemicals ,nono-marking ,preferred in food ,fishing and chemical industries with smonth level floors
Rubber :best choice for quiet and durable demand ,ideal for smooth and rough floors
After sales service
MYZG always treat after-sale service important as the same as product quality.
MYZG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
MYZG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
1. What's the Certificate do you have?
MYZG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
MYZG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the MYZG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.
6. What logistics waysd we can work for shipment ?
We can ship construction machinery by various transportation tools.
1. For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2. For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3. For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7. Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is 7-15 days.
