| Power Type: 80V100Ah battery; | |||
| With 80V35A charger; | |||
| Control type:AC; | |||
| Rated Capacity: 3000kg; | |||
| Lift Height: 2 stage 3m wide view mast; | |||
| Fork Size (L×W×T) :45×125×1070mm; | |||
| With ZAPI Controller; | |||
| With battery warming system; | |||
| Warranty:1 year or 2000 hours |
| 1.1 | Manufacturer | VLIFT | |
| 1.2 | Model designation | EFX302 | |
| 1.3 | Drive unit | Lithium Battery | |
| 1.4 | Operator type | Rider seated | |
| 1.5 | Load capacity | Q (kg) | 3000 |
| 1.6 | Load center | c (mm) | 500 |
| 1.7 | Load distance | x (mm) | 481 |
| 1.8 | Wheelbase | y (mm) | 1650 |
| Weights | |||
| 2.1 | Service weight | kg | 3920 |
| 2.2 | Axle loading, laden front/ rear | kg | 6580/440 |
| 2.3 | Axle loading, unladen front/ rear | kg | 1700/2220 |
| Wheels, Chassis | |||
| 3.1 | Tyre type | Pneumatic | |
| 3.2 | Tyre size, front | 7.00-12-16PR | |
| 3.3 | Tyre size, rear | 18X7-8-14PR | |
| 3.4 | Wheels, number front/ rear (x=drive wheels) | 2x/ 2 | |
| 3.5 | Tread, front | b10 (mm) | 975 |
| 3.6 | Tread, rear | b11 (mm) | 955 |

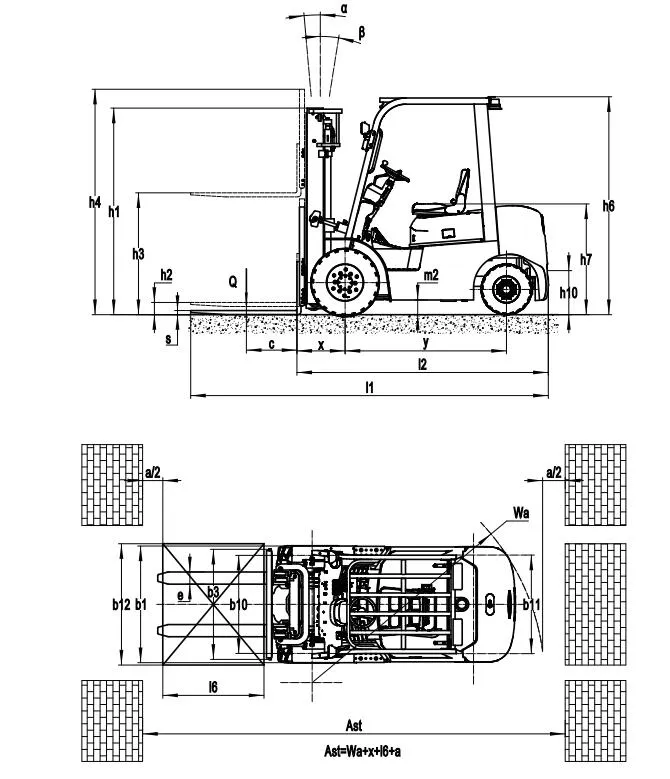

| Dimensions | |||
| 4.1 | Mast/ fork carriage tilt, forward/ backward | α/ β (°) | 6/ 10 |
| 4.2 | Height, mast lowered | h1 (mm) | 2070 |
| 4.3 | Free lift | h2 (mm) | 135 |
| 4.4 | Lift height | h3 (mm) | 3000 |
| 4.5 | Height, mast extended | h4 (mm) | 4095 |
| 4.6 | Height of overhead guard (cabin) | h6 (mm) | 2170 |
| 4.7 | Seat height | h7 (mm) | 1110 |
| 4.8 | Tow coupling height | h10 (mm) | 295 |
| 4.9 | Overall length | l1 (mm) | 3566 |
| 4.10 | Length to face of forks | l2 (mm) | 2496 |
| 4.11 | Overall width | b1/ b2 (mm) | 1154 |
| 4.12 | Fork dimensions | s/ e/ l (mm) | 40×122×1070 |
| 4.13 | Fork carriage width | b3 (mm) | 1100 |
| 4.14 | Ground clearance, laden, below mast | m1 (mm) | 120 |
| 4.15 | Ground clearance, center of wheelbase | m2 (mm) | 150 |
| 4.16 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 3898 |
| 4.17 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 4098 |
| 4.18 | Outer turning radius | Wa (mm) | 2217 |
| 4.19 | Inner turing radius | b13 (mm) | -- |
| Performance | |||
| 5.1 | Travel speed, laden/ unladen | km/ h | 11/12 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.29/ 0.36 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.4/ 0.43 |
| 5.4 | Maximum gradeability, laden/ unladen S2 5 min. | % | 15/15 |
| 5.5 | Service brake | Hydraulic/mechanical | |
| Drive | |||
| 6.1 | Drive motor rating S2 60 min. | kW | 8 |
| 6.2 | Lift motor rating at S3 15% | kW | 16 |
| 6.3 | Battery voltage/ rated capacity (5h) | V/ Ah | 80/100 |
| Others | |||
| 7.1 | Type of drive control | AC | |
| 7.2 | Operating pressure for attachments | bar | 175 |
| 7.3 | Sound level at operator's ear | dB (A) | 74 |
| Option | ||
| Optional items | ||
| 1 | Fork length | customization consultation |
| 2 | Attachments | integrated side shifter, extenal side shifter,customization consultation |
| 3 | Overhead guard | customization consultation |
| 4 | Front wheel configuration | dual |
| 5 | Tyre type | Solid rubber tire, Environmental solid tire |
| 6 | Front light | LED front light |
| 7 | Auxiliary light | Back light |
| 8 | Safety components | Fire extinguisher, blue light |
| 9 | Seat | suspension seat |
| 10 | Cockpit | Cockpit, With fan heater,With front windshield wiper, With rear windshield wiper |
| 11 | Reariew | dual |
| 12 | Air fan | single |
| 13 | Charging | 80V130A |
| 14 | Li-lon battery | 80V205Ah,80V280AH,80V410Ah |
