TDR200
1 Year or 2000 Working Hours
Not Adjustable
Powered Pallet Truck
Diesel Engine
5T - 10T
Diesel
500mm
3000~5000mm
New
360mm
2630mm
20%
6
16 MPa
65 L
Ltmg
432nm
92 Kw
TDER
Nude Packing, Fixed in Container
8000kg
China
84272090

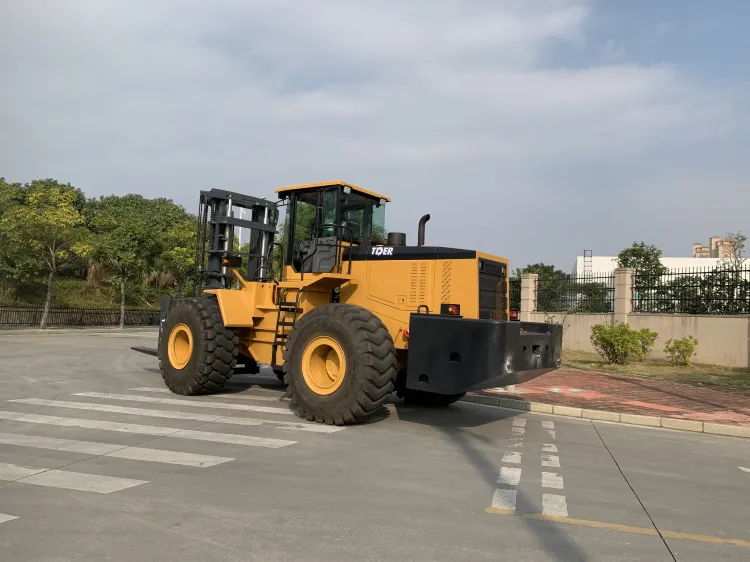

Product Description
| specification | ||||||
| General | Manufacture | TDER | ||||
| Model | TDR150/TDR200 | |||||
| Fuel type | diesel oil | |||||
| Rated capacity | kg | 15000/20000 | ||||
| Load center | mm | 800 | ||||
| Dimensions | Lift height | mm | 3000 | |||
| Free lift height | mm | 100 | ||||
| Fork size | mm | 2400×200×100 | ||||
| Shelf Side Shift Distance | Left / Right | mm | 205/205 | |||
Fork spacing adjustment | Min./Max. | mm | 280/2320 | |||
| Mast tilt angle | Before / After | deg | 8/10 | |||
| Front overhang | mm | 1380 | ||||
| Overall dismensions | Length to face of fork | mm | 9700 | |||
| Overall width | mm | 3040 | ||||
| Mast lowered height | mm | 3350 | ||||
| Mast extended height | mm | 4850 | ||||
| Safety rack height | mm | 3700 | ||||
| Turning radius | mm | 7800 | ||||
| Min.right angle aisle width | mm | 8500 | ||||
| Performance | noload/full load | Travel speed | Km/h | 30/28 | ||
| Lifting speed | mm/sec | 320/270 | ||||
| Max.grade ability | º | ≥21 | ||||
| Max.Pull force(full load) | KN | 180 | ||||
| Self weight | kg | 24200/26000 | ||||
| Chassis | Tyres | Front | 2×23.5-25-32PR | |||
| Rear | 2×23.5-25-24PR | |||||
| Tread | Front | mm | 2380 | |||
| Rear | mm | 2380 | ||||
| Wheelbase | mm | 3710 | ||||
| Min.Ground clearance (no load/full load) | Mast | mm | 450/400 | |||
| Frame | mm | 500/450 | ||||
| Power Unit and Control | Battery | V/AH | 24/100×2 | |||
| Engine | Model | 6CTA8.3-C240 | ||||
| Manufacture | Cummins | |||||
| Rated output | Kw/rpm | 179/2200 | ||||
| Rated torque | N.m/rpm | 1028/1500 | ||||
| Fuel tank capacity | L | 220 | ||||
| Transmissions | Type | Hydraulic | ||||
| Shift | Front/rear | 2/1 | ||||
Product Features
1.Adopt low noise engine with features of low displacement and environmental protection.
2.Full hydraulic mechanic automatic transmission and steering system for flexible and easy handling.
3.Large hauling capacity from its double-axle four wheel drive for improved safety and stability.-Articulated body design reduces turning radius.
4.Fitted with Glamour luxurious seat for extra comfort.
5.Terrain Forklift is adaptable to various surface conditions.
6.It is suitable to operate on soft soils,grass,terrain,mine sites and many other rugged surfaces.
7.Extensive range of attachments is available for this model to extend its working capacity for heavy duty mining projects.
