FG20 FG30 FG40 FG50
24 Hours on Line
1 Year
Adjustable
2 Ton Gasoline and Gas Forklifts
LP Gas Engine
1T - 5T
Diesel
500mm
3000~5000mm
New
500mm
1700mm
Forklift Gasoline
100mm
3000kg
1 Year
850mm
Provided
1500mm
Fg30
LPG Gas Engine
3752/2682mm
1225mm
2090mm
Provided
SECSUN
Nude Package, Fix in Container
2595*1150*2070mm
Fujian, China
Product Description
Functions & Applications
Rolling over 360°.Widely used in the food industry, chemical industry, sanitation industry, recyle industry, smelt casting industry, etc.
Functions & Applications
Rolling over 360°.Widely used in the food industry, chemical industry, sanitation industry, recyle industry, smelt casting industry, etc.
Functions & Applications
Pull and push light goods pack with the help of sliding plate instead of pallet safely efficiently. Only use sliding plate to realize loading, stacking, and reuse cardboard (only for Sliding Plate Reatinable Model). It can greatly improve production efficiency, saving the cost.
Functions & Applications
Block clamp can efficiently handle various types of solid, regular cubic goods under normal temperature. Widely used construction material, metallurgy industries for handling concrete blocks, cement bricks, carbon cubes, etc.
Functions & Applications
Suitable for small tonnage paper roll or circulates goods clamping, structure design for the single reduced cost, weight, improve efficiency.
| Rated Capacity | kg | 2000 | 3000 | 4000 | ||
| Load Centre | mm | 500 | 500 | 500 | ||
| Lift Height | mm | 3000 | 3000 | 3000 | ||
| Fork Size | L×W×T | mm | 1070×120×40 | 1070×125×45 | 1070×125×50 | |
| Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | 6°/12° | |
| Front Overhang (Wheel center to fork face) | mm | 465 | 480 | 495 | ||
| Ground Clearance(Bottom of mast) | mm | 110 | 140 | 140 | ||
| Overall Dimension | Length to face of fork(Without fork) | mm | 2595 | 2730 | 2890 | |
| Overall Width | mm | 1150 | 1225 | 1410 | ||
| Mast Lowered Height | mm | 2070 | 2115 | 2195 | ||
| Mast Extended Height(With backrest) | mm | 4070 | 4150 | 4180 | ||
| Overhead Guard Height | mm | 2070 | 2090 | 2120 | ||
| Turning Radius (outside) | mm | 2310 | 2440 | 2700 | ||
| Speed | Travel (Full load) | km/h | 19 | 20 | 19 | |
| Lifting (Full load) | mm/s | 530 | 510 | 320 | ||
| Max.Gradeability (No load/Full load) | % | 20 | 20 | 20 | ||
| Tire | Front | mm | 7.00-12-12PR | 28×9-15-12PR | 250-15-16PR | |
| Rear | mm | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | ||
| Wheelbase | mm | 1600 | 1700 | 1900 | ||
| Service weight | kg | 3590 | 4300 | 5100 | ||
| Battery | Voltage/Capacity | V/Ah | 12/80 | 12/80 | 12/80 | |
| Engine | Model | K25 | K25 | K25 | ||
| Rated output/r.p.m. | kw | 35.6/2100 | 35.6/2100 | 35.6/2100 | ||
| Rated torque/r.p.m. | N·m | 176.5/1600 | 176.5/1600 | 176.5/1600 | ||
| No.of Cylinder | 4 | 4 | 4 | |||
| Bore×Stroke | mm | 89×100 | 89×100 | 89×100 | ||
| Displacement | cc | 2488 | 2488 | 2488 | ||
| Fuel Tank Capacity | L | 60 | 60 | 60 | ||
| Transmission | Type | Hydraulic | Hydraulic | Hydraulic | ||
| Stage | FWD/RVS | 1/1 | 1/1 | 2/1 | ||

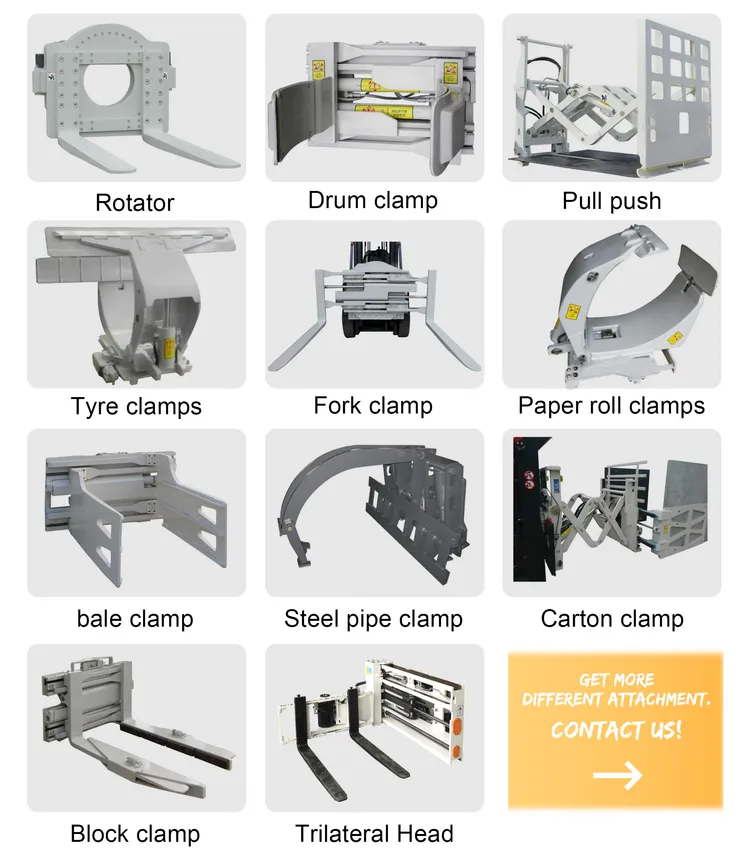

Optional Attachment
Spare parts
