Product Description
- Material: 100% Polyester
- Color: Green
- WLL 4000kg
- Standard: EN1492-1
- Safety Factor 7: 1
- Length: 3m
- Width: 60mm
The Flat eye and eye webbing slings are made from flat polyester webbing sewing with two reinforced eye loops at each end. According it's layer, we have simplex webbing slings, duplex webbing slings, triplex and quadruplex webbing slings. Our lifting belt is made according to international color code for easy load bearing capacity identification. Products are manufactured with BS EN1492-1: 2000, safety factor 7:1, with certificate of conformity, TUV, GS, CE approved.
Polyester lifting webbing slings are light and easy to use, high capacity, be with high abrasion resistance, corrosion resistance, mould resistance. With these advantages, they're widely used in engineering, marine, port, dock, steel, installment and other industrial fields.
We offer the flexibility to customize lifting slings based on its lifting capacities, lengths, and configurations, in accordance with your lifting applications and requirements. Protective sleeves are also available to further provide additional protection to the lifting slings.
Different width for different safety factor for duplex eye to eye flat webbing sling(DEE)
| Artical No. | Color | WLL(kg) | Width(mm) | ||
| 5:1 | 6:1 | 7:1 | |||
| WS-DEE010 | Violet | 1000 | 25 | 25 | 30 or 50 |
| WS-DEE020 | Green | 2000 | 50 | 50 | 60 |
| WS-DEE030 | Yellow | 3000 | 75 | 75 | 90 |
| WS-DEE040 | Grey | 4000 | 100 | 100 | 120 |
| WS-DEE050 | Red | 5000 | 125 | 125 | 150 |
| WS-DEE060 | Brown | 6000 | 150 | 150 | 180 |
| WS-DEE080 | Blue | 8000 | 200 | 200 | 240 |
| WS-DEE100 | Orange | 10000 | 250 | 250 | 300 |

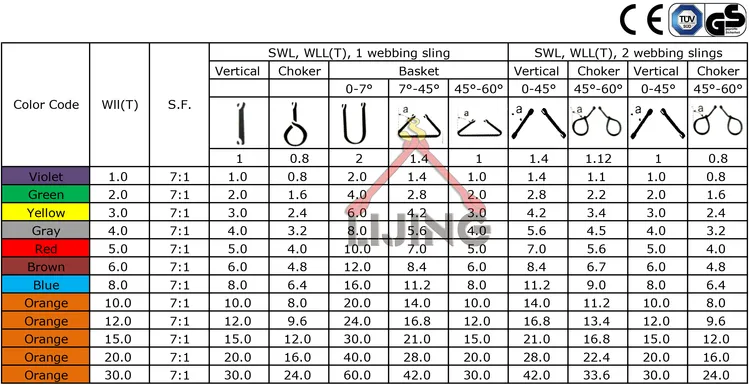

With different application, eye to eye webbing slings carry their loads in three hitches: vertical, choker and basket. Conform to BS EN1492-1:2000 and 'Machinery Directive 2006/42/EC'.
