| Model No. | TH704421 |
| Origin | China |
| Type | Anchor Chain |
| Specification | 30mm-122mm |
| Production Capacity | 1000tons |
| HS Code | 7315810000 |

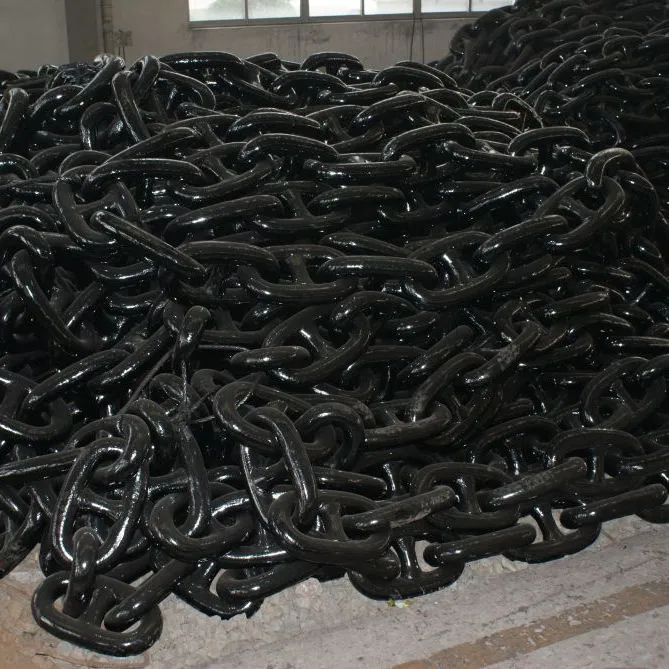

Stud Link Anchor Chain is widely used on Floating Equipment, Ships, Oil Rigs and Mooring Buoys.
We supply wide range of sizes and grades:
Grade U2 / U3 from 12.5mm to 162mm; Grade ORQ / R3 /R3S / R4 from 58mm to 162mm
Our chain can meet requirement of ISO1704, GB/T 549, JIS F3303, Gost 228, IACS, OCIMF, API and other international regulations.
Proof Load and Breaking Load of Stud Link Anchor Chain:
| Nominal Diameter (mm) | Proof Test Load (kN) | Breaking Test Load (kN) | Theoretical Weight (kg/27.5m) | ||
| Grade 2 | Grade 3 | Grade 2 | Grade 3 | ||
| 17.5 | 127 | 179 | 179 | 256 | 194.0 |
| 19 | 150 | 211 | 211 | 301 | 236.0 |
| 20.5 | 175 | 244 | 244 | 349 | 269.0 |
| 22 | 200 | 280 | 280 | 401 | 322.0 |
| 24 | 237 | 332 | 332 | 476 | 370.0 |
| 26 | 278 | 389 | 389 | 556 | 431.0 |
| 28 | 321 | 449 | 449 | 642 | 496.0 |
| 30 | 368 | 514 | 514 | 735 | 564.0 |
| 32 | 417 | 583 | 583 | 833 | 635.0 |
| 34 | 468 | 655 | 655 | 937 | 712.0 |
| 36 | 523 | 732 | 732 | 1050 | 800.0 |
| 38 | 581 | 812 | 812 | 1160 | 887.0 |
| 40 | 640 | 896 | 896 | 1280 | 1032.0 |
| 42 | 703 | 981 | 981 | 1400 | 1084.0 |
| 44 | 769 | 1080 | 1080 | 1540 | 1197.0 |
| 46 | 837 | 1170 | 1170 | 1680 | 1310.0 |
| 48 | 908 | 1270 | 1270 | 1810 | 1438.0 |
| 50 | 981 | 1370 | 1370 | 1960 | 1546.0 |
| 52 | 1060 | 1480 | 1480 | 2110 | 1661.0 |
| 54 | 1140 | 1590 | 1590 | 2270 | 1791.0 |
| 56 | 1220 | 1710 | 1710 | 2430 | 1926.0 |
| 58 | 1290 | 1810 | 1810 | 2600 | 2086.0 |
| 60 | 1380 | 1940 | 1940 | 2770 | 2249.0 |
| 62 | 1470 | 2060 | 2060 | 2940 | 2361.0 |
| 64 | 1560 | 2190 | 2190 | 3130 | 2516.0 |
| 66 | 1660 | 2310 | 2312 | 3300 | 2676.0 |
| 68 | 1750 | 2450 | 2450 | 3500 | 2885.0 |
| 70 | 1840 | 2580 | 2580 | 3690 | 3010.0 |
| 73 | 1990 | 2790 | 2790 | 3990 | 3274.0 |
| 76 | 2150 | 3010 | 3010 | 4300 | 3548.0 |
| 78 | 2260 | 3160 | 3160 | 4500 | 3737.0 |
| 81 | 2410 | 3380 | 3380 | 4820 | 4030.0 |
| 84 | 2580 | 3610 | 3610 | 5160 | 4334.0 |
| 87 | 2750 | 3850 | 3850 | 5500 | 4650.0 |
| 90 | 2920 | 4090 | 4090 | 5840 | 4976.0 |
| 92 | 3040 | 4260 | 4260 | 6080 | 5119.0 |
| 95 | 3230 | 4510 | 4510 | 6440 | 5544.0 |
| 97 | 3340 | 4680 | 4680 | 6690 | 5780.0 |
| 100 | 3530 | 4940 | 4940 | 7060 | 6143.0 |
| 102 | 3660 | 5120 | 5120 | 7320 | 6398.0 |
| 105 | 3850 | 5390 | 5390 | 7700 | 6773.0 |
| 107 | 3980 | 5570 | 5570 | 7960 | 7033.0 |
| 111 | 4250 | 5940 | 5940 | 8480 | 7569.0 |
| 114 | 4440 | 6230 | 6230 | 8890 | 7983.0 |
| 117 | 4650 | 6510 | 6510 | 9300 | 8409.0 |
| 120 | 4850 | 6810 | 6810 | 9720 | 8863.0 |
| 122 | 5000 | 7000 | 7000 | 9990 | 9143.0 |
| 124 | 5140 | 7200 | 7200 | 10280 | 9598.0 |
| 127 | 5350 | 7490 | 7490 | 10710 | 9908.0 |
| Nominal Diameter (mm) | Weight (kg) | No.of Links per 27.5m | ||||||
| KS | JS | ES | SP | C | EL | E | ||
| 20.5 | 1.0 | 2.0 | 3.0 | 8.1 | 0.8 | 1.1 | 1.2 | 331 |
| 22 | 2.0 | 3.0 | 4.0 | 8.6 | 1.0 | 1.4 | 1.5 | 307 |
| 24 | 2.0 | 3.0 | 5.0 | 11.4 | 1.3 | 1.8 | 1.9 | 281 |
| 26 | 3.0 | 4.0 | 6.0 | 16.2 | 1.7 | 2.2 | 2.5 | 261 |
| 28 | 4.0 | 5.0 | 8.0 | 21.4 | 2.0 | 2.8 | 3.0 | 243 |
| 30 | 4.0 | 6.0 | 9.0 | 23.1 | 2.5 | 3.5 | 3.8 | 227 |
| 32 | 5.0 | 7.0 | 11.0 | 29.7 | 3.0 | 4.2 | 4.6 | 213 |
| 34 | 6.0 | 10.0 | 14.0 | 36.8 | 3.6 | 5.0 | 5.5 | 199 |
| 36 | 7.0 | 11.0 | 16.0 | 39.9 | 4.3 | 6.0 | 6.5 | 187 |
| 38 | 8.0 | 12.0 | 18.0 | 47.7 | 5.0 | 7.0 | 7.7 | 179 |
| 40 | 9.0 | 13.0 | 20.0 | 51.7 | 6.1 | 8.2 | 9.0 | 169 |
| 42 | 11.0 | 17.0 | 25.0 | 64.8 | 6.7 | 9.5 | 10.4 | 161 |
| 44 | 13.0 | 19.0 | 27.0 | 77.6 | 7.8 | 10.9 | 12.0 | 153 |
| 46 | 14.0 | 21.0 | 30.0 | 83.5 | 9.0 | 12.4 | 13.6 | 147 |
| 48 | 15.0 | 23.0 | 34.0 | 100.0 | 10.1 | 14.1 | 15.5 | 141 |
| 50 | 18.0 | 29.0 | 41.0 | 115.0 | 11.3 | 16.0 | 17.5 | 137 |
| 52 | 20.0 | 31.0 | 45.0 | 124.0 | 12.7 | 18.0 | 19.7 | 131 |
| 54 | 20.0 | 34.0 | 50.0 | 141.0 | 14.3 | 20.1 | 22.0 | 125 |
| 56 | 24.0 | 38.0 | 54.0 | 148.0 | 15.9 | 22.5 | 24.6 | 121 |
| 58 | 28.0 | 44.0 | 65.0 | 168.0 | 17.8 | 24.9 | 27.3 | 117 |
| 60 | 28.0 | 48.0 | 70.0 | 191.0 | 19.9 | 27.6 | 30.2 | 113 |
| 62 | 33.0 | 52.0 | 76.0 | 202.0 | 21.7 | 30.5 | 33.4 | 109 |
| 64 | 38.0 | 57.0 | 82.0 | 231.0 | 23.5 | 33.5 | 36.7 | 107 |
| 66 | 38.0 | 66.0 | 94.0 | 261.0 | 26.0 | 36.8 | 40.2 | 103 |
| 68 | 44.0 | 70.0 | 101.0 | 273.0 | 29.1 | 40.2 | 44.0 | 99 |
| 70 | 44.0 | 75.0 | 108.0 | 307.0 | 31.0 | 43.9 | 48.0 | 97 |
| 73 | 51.0 | 87.0 | 124.0 | 318.0 | 35.2 | 49.7 | 54.5 | 93 |
| 76 | 58.0 | 93.0 | 141.0 | 393.0 | 39.9 | 56.1 | 61.5 | 89 |
| 78 | 65.0 | 108.0 | 150.0 | 408.0 | 43.0 | 60.7 | 66.5 | 87 |
| 81 | 74.0 | 119.0 | 171.0 | 458.0 | 48.6 | 68.0 | 74.4 | 83 |
| 84 | 84.0 | 134.0 | 193.0 | 508.0 | 53.5 | 75.8 | 83.0 | 81 |
| 87 | 94.0 | 151.0 | 218.0 | 564.0 | 66.3 | 84.2 | 92.2 | 79 |
| 90 | 105.0 | 167.0 | 243.0 | 623.0 | 71.2 | 93.2 | 102.0 | 75 |
| 92 | 105.0 | 175.0 | 256.0 | 669.0 | 78.0 | 99.5 | 109.0 | 73 |
| 95 | 115.0 | 200.0 | 280.0 | 733.0 | 83.8 | 109.6 | 120.0 | 71 |
| 97 | 135.0 | 210.0 | 305.0 | 754.0 | 91.7 | 116.7 | 127.8 | 69 |
| 100 | 150.0 | 230.0 | 335.0 | 827.0 | 95.5 | 127.9 | 140.0 | 67 |
| 102 | 150.0 | 243.0 | 350.0 | 891.0 | 104.2 | 135.7 | 148.6 | 67 |
| 107 | 175.0 | 285.0 | 410.0 | 1042.0 | 111.6 | 148.0 | 162.0 | 63 |
| 111 | 200.0 | 305.0 | 415.0 | 1150.0 | 124.0 | 156.6 | 171.5 | 61 |
| 114 | 225.0 | 325.0 | 475.0 | 1239.0 | 135.3 | 174.9 | 191.5 | 59 |
| 117 | 225.0 | 345.0 | 505.0 | 1332.0 | 147.5 | 189.4 | 207.4 | 57 |
| 120 | 257.0 | 380.0 | 550.0 | 1465.0 | 155.5 | 204.8 | 224.2 | 57 |
| 122 | 315.0 | 420.0 | 600.0 | 1632.0 | 166.2 | 220.9 | 241.9 | 55 |
| 124 | 257.0 | 380.0 | 550.0 | 1465.0 | 174.5 | 249.7 | 273.4 | 55 |
| 127 | 315.0 | 420.0 | 600.0 | 1632.0 | 186.9 | 261.9 | 286.8 | 53 |
1.Our Shipyard:Ningbo Zhenhe shipyard, and now Taihang is the branch representative of our yard.
2.Our founding team has experience of more than 15 years in ship building and ship repair with our own engineer and designer.
3.Equipment quality guarantee: Based on shipyard feedback, we built up manufacturer file to ensure the good quality of the products. Also we can send our engineers to help our clients to install and test these exported equipment.
4.We are a second hand ship broker to help you find the satisfied used different kind vessels.
5.We are able to provide the CKD kits and one-stop service based on our laser-cutting machine and purchase ability
6. We have a very professional design and technical team to work out perfect plan for our clients and help to slove out any matters with pre-sale and after-sale.
7.Customer Distribution: Tananzia, Rwanda, India(Mumbai and Kalkatta), Suva, Portugal, Russia, Nertherland, Iceland, Denmark, Malaysia, Mexico.......
