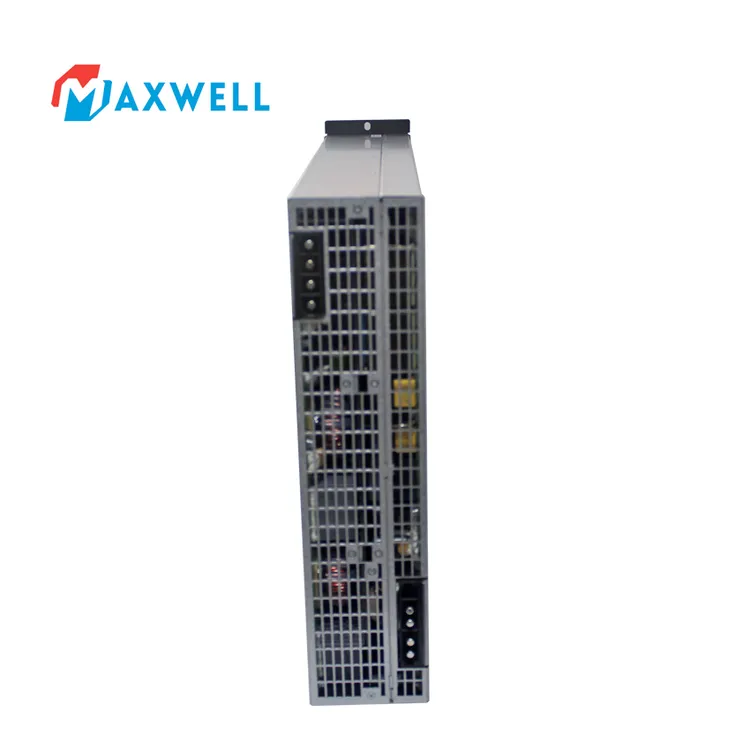

| Model | MXR100200B |
| Efficiency (Full Load) | ≥95% |
| Communication Protocol | CAN bus |
| Dimensions | 84mm(H)*218mm(W)*459mm(D) |
| Input Voltage | 190 Vac~530 Vac, 3 phase+PE |
| Output voltage | 20 Vdc~100 Vdc |
| Output derating | above 50ºC |
1. Function details:
hot swap
The charging module adopts plug-in technology, which is convenient for installation and maintenance.
current sharing
The charging modules can automatically share the current, and the unbalance degree is less than 3%.
Input limited power control
When the input voltage is between 323Vac and 530Vac (hysteresis is less than 15V), the module can output the maximum power.
2. Output constant power control
When the MXR100040 rated input voltage, the allowable output power of the module is 20kW.
| CE/ TUV / EMC | EN IEC 61000-6-1:2019:EN IEC 61000-6-2:2019: EN IEC 61000-6-3:2021:EN IEC 61000-6-4:2019: EN IEC 61851-21-2:2021 |
| cTUVus | UL 2202:2009 R2.18; CSA C22.2 NO.107.1-16 |
Maxwell was established in 2009. At the beginning of the company's establishment, our plan was to develop and produce related products in the field of power electronics. The service industry is mainly the power industry, and the main product is power converters. The reason for choosing this industry is that this industry is relatively stable, and it can bring a stable development to the company in the early stage. After several years of development and exploration, it is found that the market capacity of this industry is limited and there will not be much growth. It can't provide much motivation for the company's long-term development. So we plan to develop other areas.
After 2014, we foresaw more opportunities through the rise of photovoltaic, energy storage, new energy etc, so our company's strategic direction has changed. We have made a lot of adjustments from market exploration to product positioning and product development. In the end, we have focused into directions of energy storage and new energy.
At present, our products for new energy charging are 1000V 20KW , 1000V 30KW, 1000V 40KW, 1000V 50KW
Products for energy storage (V2G) are MXR80025,MXR75027, MXC75050B etc products.
Our plan for the next 3-5 years: Continue to deepen the new energy industry, take the charging module as the core product, update and iterate to keep up with the needs of the market and customers, and develop the sales of supporting products for this industry. If we have the ability to establish a strategic partnership with charging station operators and platform promotion companies in the later stage, we plan to develop the entire charging system.
Warranty Times: 1 year
In the first half of the year for non-human damage, we will replace A new one for you for free. You only need to delivery the damaged module(Both parties bear the freight cost); In the second half, we will repair the non-human damage for you for free. Meanwhile, our engineers are available for providing any technical assistance during your testing processes.
