| Standard | |||
| 1.1 | Brand | VLIFT | |

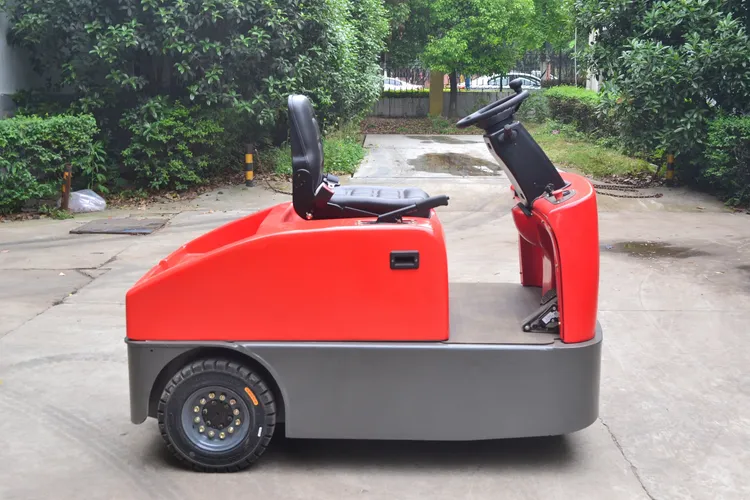

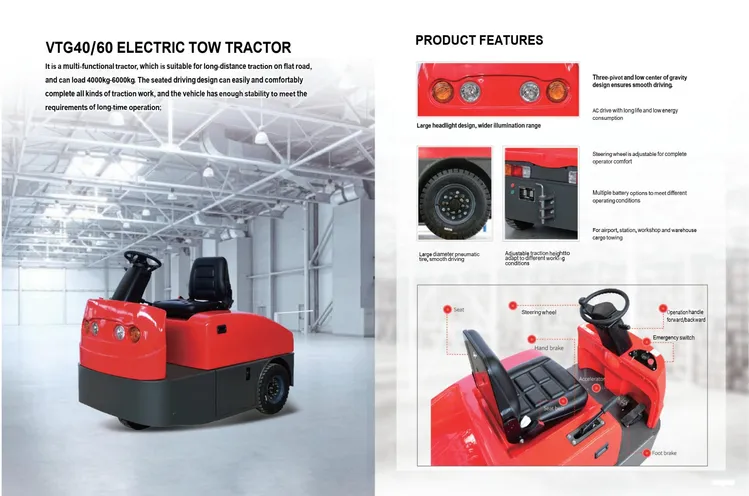

| 1.2 | Model | VTG 40 | |
| 1.3 | Power type | Battery | |
| 1.4 | Operation type | Seat | |
| 1.5 | Rated drawbar pull | F(N) | 800 |
| 1.6 | Wheel base | y(mm) | 1040 |
| Weight | |||
| 2.1 | Service weight(incl. battery) | kg | 920 |
| 2.2 | Axle loading, laden front/back | kg | / |
| 2.3 | Axle loading, unladen front/back | kg | 365/555 |
| Wheel | |||
| 3.1 | Tyre,front/back | Solid /Pneumatic tyre | |
| 3.2 | Tyre size,front | mm | 4.00-8 |
| 3.3 | Tyre size,back | mm | 4.00-8/6PR |
| 3.5 | Wheels number,front/back(x=driven) | 1/2X | |
| 3.6 | Tread, front | b10(mm) | 870 |
| 3.7 | Tread, back | b11(mm) | 0 |
| Size | |||
| 4.1 | Height of overhead guard( include cabin) | h6(mm) | 2045 |
| 4.2 | Seat height | h7(mm) | 895 |
| 4.3 | Coupling height | h10(mm) | 210/275/340/405 |
| 4.4 | Loading height,unladen | h11(mm) | 610 |
| 4.5 | Length of loading platform | l3(mm) | 790 |
| 4.6 | Rear overhang | l5(mm) | 405 |
| 4.7 | Width of loading platform | b9(mm) | 390 |
| 4.8 | Overall length | l1(mm) | 1790 |
| 4.9 | Overall width | b1(mm) | 990 |
| 4.10 | Body ground clearance | m2(mm) | 140 |
| 4.11 | Turning radius | Wa(mm) | 1650 |
| 4.12 | Internal turning radius | b13(mm) | 600 |
| Function | |||
| 5.1 | Travel speed (load/unload) | km/h | 8 / 14 |
| 5.2 | Tractive force(S2-5min) | N | 3800 |
| 5.3 | Max. climbing ability, with/without load(S2-5min). | %(tanθ ) | Reference climbing curve |
| 5.4 | Service brake | Hydraulic brake/Regenerative brake | |
| Drive | |||
| 6.1 | Drive motor rating(S2-60 min) | kw | 3 |
| 6.2 | Battery voltage/rated capacity | V/Ah | 24/490 |
| 6.3 | Battery weight | kg | 390 |
| 6.4 | Steering System | EPS | |
| Others | |||
| 7.1 | Noise level at operator's ear | dB(A) | 66 |
We got CE certificate for material handling equipment of Manual Lift Trucks and Electric Lifting Trucks.
Company introduction:

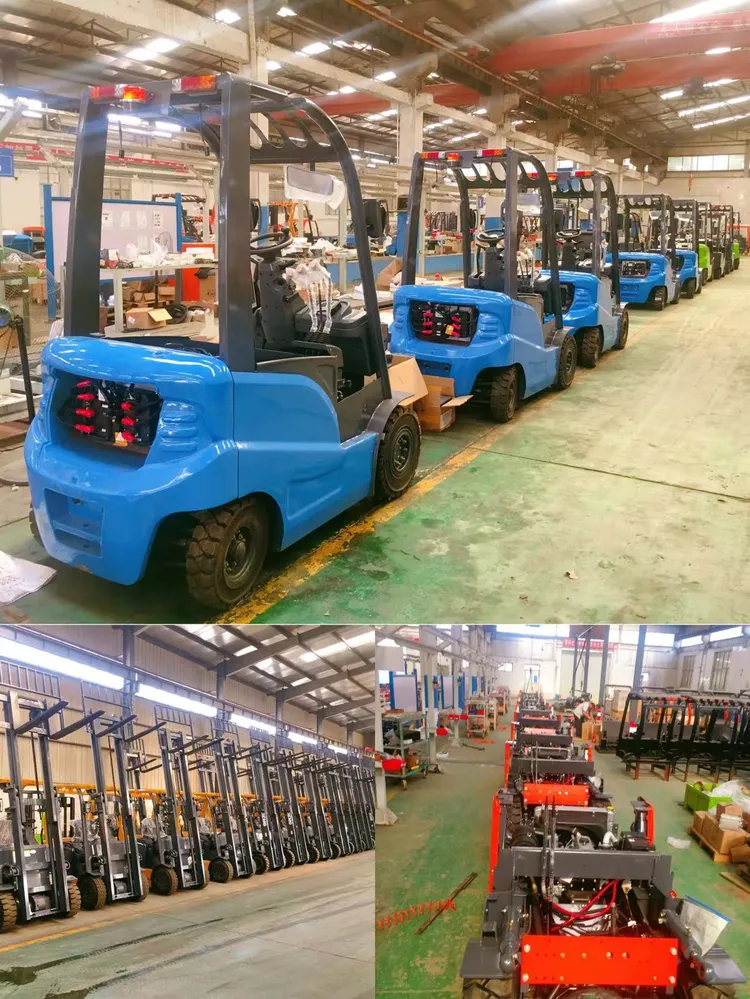

Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables. Vlift aims at provide you high quality, high performance material handling equipment. Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
OEM and ODM
We provide you with the service of making your company logo, nameplate, etc. free of charge and accept all orders OED and ODM based on a certain quantity.
Delivery lead time
our lead times are usually within 3-15 days, except for customised products and products with shortage of parts.
Customs clearance matters
We provide you with complete customs clearance documents, upon your request, can provide you with various commercial certifications based on the products ordered.
About after-sales service
1) Operation Manual and parts manual:
We provide you with detailed and professional English manual and parts manual, including paper and electronic versions, with detailed pictures so that you can understand the various parts of the product at a glance.
2) After-sales support:
We provide after-sales support with a minimum response time of one hour, and our after-sales team provides you with comprehensive guidance in the form of text, telephone and video.
3)Accessory supply:
except for some perishable parts, all other products and parts sold by us are guaranteed for 1 year or 2000 hours; parts out of the warranty period will be provided to you at a 20% discount from the market price.
