1.Ergonomic driving layout design which create a good, comfortable and convenient operating experience for the drivers.
2.Configuration two sets high-capacity battery,standard automatic replenishment system;The battery with side take cut layout design. easy,convenient and sate for battery replacement.The whole cabin can be tilted backwards,very convenient for maintenance.
3.Original imported world famous brand controller. After professional adjustment, walking and upgrade control precision and efficiency, it has excellent performance, regenerative braking,ramp braking, self-diagnosis and other functions.
4.New designed overhead guard protective device prevent the sudden accidents: The lifting system adopts buffering technology to reduce shock and vibration of the mast.
General | Model | FB80 | |
Rated Capacity | kg | 8000 | |
Load Centre | mm | 600 | |
Lift Height | mm | 3000 | |
Fork Size (L×W×T) | mm | 1220×150×70 | |
Mast Tilt Angle F/R (α°/β°) | Deg | 6/10 | |
Characteristic&Dimensions | Length to face of fork (Without fork) | mm | 3780 |
Overall Width | mm | 2200 | |
Mast Lowered Height | mm | 2600 | |
Mast Extended Height (With backrest) | mm | 4400 | |
Overhead Guard Height | mm | 2500 | |
Turning Radius (outside) | mm | 3350 | |
Front Overhang (Wheel center to fork face) | mm | 685 | |
Tread (Front/Rear) | mm | 1650/1718 | |
Ground Clearance (Bottom of mast) | mm | 200 | |
Wheelbase | mm | 2450 | |
Fork Spread (Min./Max) | mm | 300/2000 | |
Performance | Travel Speed | km/h | 14 |
Lifting Speed (Full load) | mm/s | 300 | |
Max. Gradeability | % | 10 | |
Service Weight | kg | 12780 | |
Front Tire | 9.00-16-14PR | ||
Rear Tire | 8.25-15-14PR | ||
Driven | Driven Motor | kw | 14×2 |
Lift Motor | kw | 25×2 | |
Battery Standard | V/Ah | 80/1150 | |
Controller Manufacturer | CURTIS AC | ||
Operating Pressure for Attachment | Mpa | 18 |
1.We are direct manufacture factory, every aspect in a deal that customer concerns is guaranteed, like price, quality, delivery time and after service and devoted to offering one stop shopping and solution to customers' needs.2.We conduct strict and comprehensive tests on all products we produce, from parts to complete vehicles, and from pre-production to post-production.
3.Safety and high quality are our unchanging promises to our customers. We attach importance to the safety and quality management of our products, and strive for their ability to maximize their value in the hands of our customers.
4.If you are not satisfied with any details of our company's sales and service, please feel free to contact us.
1.Our staff will take photos and videos of your machine before delivery.2.Additional safety packaging is made for the bare load.
3.Ropes and triangular blocks are used to secure forklifts.
4.We also offer a wooden packaging system to secure the forklift trucks.
5.Product certificates and identification plates are provided.

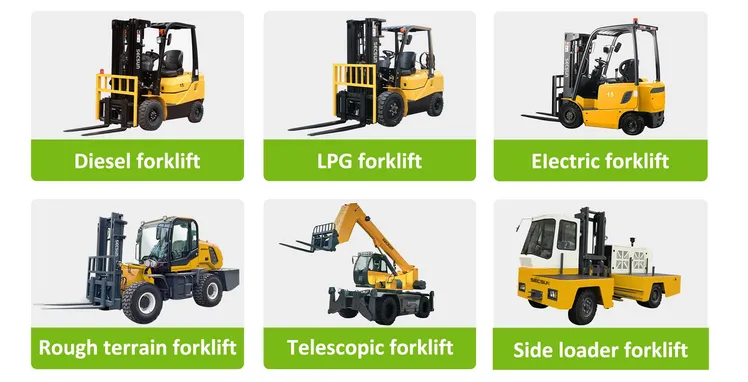

A: We can offer you wide-range products like forklift, loader, excavator, skid steer loader, backhoe loader, road roller, motor
grader, tractor, etc. So we can provide your ONE-STOP SERVICE during purchasing different products with high efficient.
2. What payment terms can we accept?
A: Normally 30% deposit in advance, 70% balance should be paid before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
3. How long is your warranty?
A: One year or 2000 working hours which occurs first.
4. How about our delivery time?
A: Usually it will take 15 - 30 days after receiving your deposit. But for standard products, we always have in stock and can
deliver within 5 days.
5. Can we provide spare parts?
A: Yes, we can provide you the spare parts list if you need, welcome to contact us freely.
