LK-650
Yes
1 Year
Customized
ISO9001
Railway Equipment
Stainless Steel
Gx160 Petrol Engine 3.05 Kw
1800 R/Min
2 PCS
105~110 R/Min
214±0.5 mm
Linkage
900* 500 *1025mm
China
Product Description

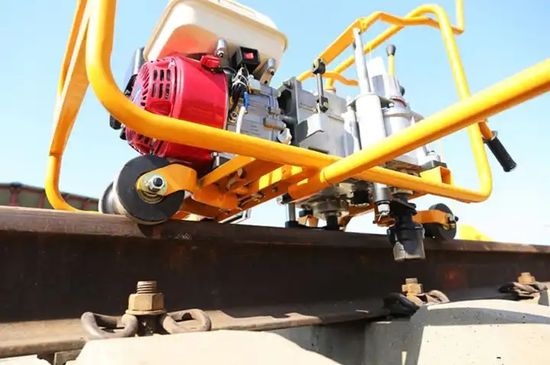

NLB-650 Rail impact wrench coachscrewing machine
LK-650 Rail impact wrench coachscrewing machine is a mechanized road maintenance equipment for railway lines, which is mainly usedfor the maintenance of standard concrete sleeper fastener nuts. It is powered by a gasoline engine, and outputs rated torque through a gear pump, reversing valve, hydraulic motor and reduction mechanism to loosen or tighten rail fastener nuts to meet the construction, repair and maintenance operations of the line.
It has compact design, convenient operation and maintenance, high workingefficiency, adjustable torque (rotating speed), safe and reliable, and it is equipped with walking auxiliary wheels for stable mechanical operation. It is an ideal equipment for railway maintenance and maintenance operations.
Model | LK-650 |
Type | Rail Impact Wrench |
Material | Stainless Steel |
Number of revolutions | 1800 r/min |
No. of sockets | 2 pcs |
Socket maximum rotation speed | 105~110 r/min |
Sockets center distance | 214±0.5 mm |
Engine | GX160 petrol engine 3.05 kW |
Socket lifting stroke | 65~70 mm |
Adjustable troque while screwing | 80~180 N.m |
Dimensions | 980x470x 700 mm |
Weight | 95 kg |
