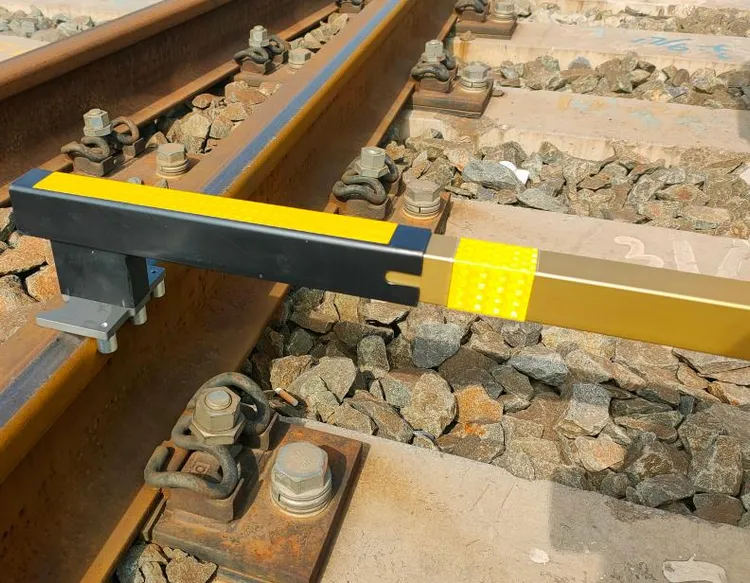

Digital Track Gauge can directly read the measurement values of railway track gauge, superelevation, check rail gauge, and back-to-back distance through microelectronics, embedded and sensor technologies, and OLED display screen.
Model | GJC-JG0 | GJC-TJG1 | GJC-TJG2 |
Track gauge(mm) | 1410~1470 | 1384~1470 | 1410~1470 |
Check rail gauge(mm) | 1381~1401 | 1364~1450 | 1381~1401 |
Back to back distance(mm) | 1338~1358 | 1344~1430 | 1338~1358 |
Super-elevation range(mm) | -185~+185 | -185~+185 | -185~+185 |
Flangeway clearance(mm) | 20-107 | 20-107 | 20-107 |
Super-elevation resolution (mm) | 0.05 | 0.1 | 0.2 |
Track gauge resolution (mm) | 0.01 | 0.1 | 0.01 |
Track gauge uncertainty (mm) | ±0.25 | ±0.25 | ±0.25 |
Super-elevation uncertainty (mm) | ±0.3 | ±0.45 | ±1.2 |
Aluminum package box | Option | ||
Wuhan Linkage Track Equipment Co., Ltd Established in 2022, specializes in designing and manufacturing geometry measurement systems for the railway, including digital track gauges, mechanical gauges, rail wear gauges, turnout measurement gauges, etc. Our products are China Railway Construction Corporation Limited (CRCC) approved. The products are used by CRCC for all their rail operation. Besides, our products are also being used by major rail operators in America, Australia, Europe, and the ASEAN countries. The bitterness of poor quality remains long after the sweetness of low price is forgotten. Our mission is to manufacture high-quality rail measurement instruments at a competitive price with reliable services to our clients in order to help them maintain & operate a safe railway system.
