1m Working Width 80-110HP Agricultural Machinery Farm Implements 4 Disc Plough for Mini Wheeled Tractor

Supplier Shandong Lingke Heavy Industry Group Co., Ltd.
Price $960.00 / Pieces
Availability In Stock
Mini Order:
+-
Subtotal: $9600

Purchase details

Payments:

Tax:

Tax Included

Returns&Refunds:

Eligible for refunds within 30 days of receiving products. returns and refunds


1LY(T)-425
12 Months After Receiving
Disc Plough
Agriculture
Dry Cultivating Machinery
Tractor
Soil Preparation Machinery, Continuous Running Operation
Hanging
Horizontal Axis
ECE, EU, CE, SGS,ISO
Can Be Customized
12 Months After Receiving
1000mm
250-300mm
660*5
4
490kg
80-110HP
Three Point Mounting Category II
Color and Size of Disc
Please Contact Sales Manager for Details
Available
EXW, Fob, CIF, DDP
1 PC/Set
LK
Iron Box
1LY(T)-425
China
Product Description
Product Description

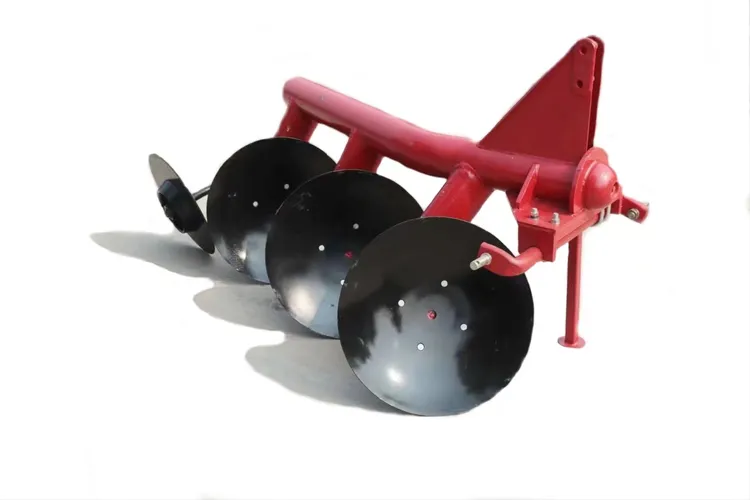

1LY(T)-425 single-way disc plough
The Single-way disc plough is matched with four-wheel tractor, the discs of plough are revolving to furrow the land during operation. The mounted disc plow is especially suitable for land which have weeds, stems and frictional soil with small brick etc.



Product Parameters

Model1LYQ-2201LYQ-3201LYQ-4201LYQ-520
Width of cut (mm)4006008001000
Depth of cut (mm)200
Dia of disc(mm)510*4
Qty of disc(mm)2345
Weight (kg)140147198300
Tractor power (hp)1825-404050-70
Mounting CategoryThree point mounting Categoty 1

Model1LY(T)-2251LY(T)-3251LY(T)-4251LY(T)-5251LY(T)-625
Width of cut (mm)500750100012501500
Depth of cut (mm)250-300
Dia of disc(mm)660*5
Qty of disc(mm)23456
Weight (kg)350420490560640
Tractor power (hp)2550-7580-110120160
Mounting CategoryThree point mounting Categoty 2
Similar products

Tube disc plough



Model1LYX-2251LYX-3251LYX-4251LYX-525
Width of cut (mm)50075010001250
Depth of cut (mm)250-300
Dia of disc(mm)660*5
Qty of disc(mm)2345
Weight (kg)270360470560
Tractor power (hp)4060100130
Mounting CategoryThree point mounting Categoty 2

Fish disc plough
Model1LY-2251LY-3251LY-4251LY-525
Width of cut (mm)60090012001500
Depth of cut (mm)250-300
Dia of disc(mm)660*5
Qty of disc(mm)2345
Weight (kg)350400470
Tractor power (hp)406090-100120
Mounting CategoryThree point mounting Categoty 2

Double-way disc plough
Model1LY(SX)-3251LY(SX)-4251LY(SX)-525
Width of cut (mm)75010001250
Depth of cut (mm)250-300
Dia of disc(mm)660*5
Qty of disc(mm)345
Weight (kg)600720820
Tractor power (hp)5090-120130-150
Mounting CategoryThree point mounting Categoty 2
Company Profile

Shandong Ling Ke Industry Group Co., Ltd. is a manufacturing enterprise engaged in R&D, production and sales of high-end non-road machinery and equipment.

It was established in 1999. The total planned area of the group is more than 650ha. It is a key investment attraction of the municipal government, a major provincial project, and a priority project for new and old kinetic energy.

Ling Ke has always adhered to the two-wheel-driven operation strategy of product management and capital operation, and is committed to creating products with the most three core competitiveness of cost, technology and quality, and has successfully built power machinery, harvesting machinery, construction machinery, financial services, The new pattern of coordinated development of five overseas industrial sectors has formed a complete and competitive industrial chain in the industry.

The annual design and production of 150,000 sets (sets) of mechanical equipment products has exceeded 2 billion yuan in sales revenue in 2020 and is expected to break through 5 billion yuan in 2025.


Certifications
Aiming at being a first-class agricultural euipment manufacturer in China, Ling Ke continuously develops and innovates and creates social value through industrial synergy effect. We have successively passed:

*National High-tech Enterprise Certification
*CE certification
*SGS Certification
*ISO9001 Quality Management System Certification
*ISO14001 Environmental Management System Certification
*ISO45001 Occupational Health and Safety Management System Certification
*AAA Enterprise Credit Rating


We will continue to work hard and strive to create more and greater brilliance.
Our customers

FAQ

Q1:Are you manufacturer or trader?
A1:We are manufacturer since 1999.

Q2:What else products do you have?
A2:We have wheel tractors from 25hp to 300hp. As well as wheel tractors, we also have walking tractor from 8-22hp, mini tractor from 12-20hp, farm implements, rice and corn harvesters and engineering machinery.

Q3:What payment methods do you use?
A3:We support online payment, T/T(30% deposit and 70% balance before shipping) and L/C at sight.

Q4:What shipment term do you accept?
A4:We accept EXW, FOB, CIF, DDP shipment.

Q5:How are your products packaged when shipping?
A5:For small tractors we use iron frame packing and for large tractors we use replacement wheels for FCL shipment.

Q6:What's the MOQ?
A6:Our MOQ is 1 set.

Q7:What's your warranty?
A7:For personal users, the warranty is 1 year after receiving. For distributors, the warranty is 18 months after receiving.

Q8:Can I use my own logo for distribution?
A8:Yes. You can use your own logo.

Q9:Is spare parts available?
A9:Yes. We can send comsumable parts to you if there is damage.

Q10:How to book a factory visit?
A10:You can contact our salesman/saleslady to discuss details.
