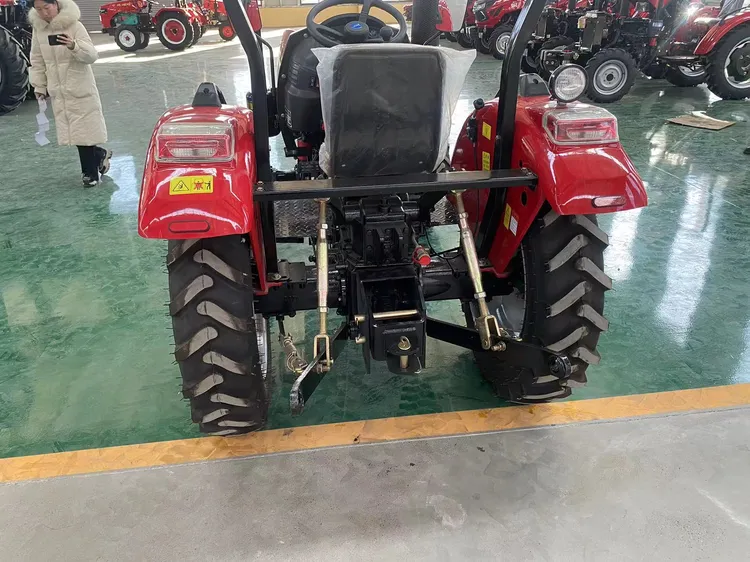

LKG Series 25HP-50HP Tractor :
· China Emission II Standard diesel engine. Engine is water cooled, direct injection with sound fuel efficiency and high torque output.
· Adopting anew type of high pressure lifter makes the work more convenient and flexible.
· 8F+2R gear shift , reasonable speed matching and high working efficiency.
· PTO speed can be 540/1000 rpm or 540/720 rpm, 6 splines or 8 splines. Can be equipped with variety tools.
| Model | UNIT | TT254 | TT304 | TT354 | TT404 | TT454 | TT504 | |||||||
| DIMENSIONS OF TRACTOR | TYPE | / | DRIVE TYPE(4 x 4) | |||||||||||
| KW | kw | 18.4 | 22.1 | 25.8 | 29.4 | 33.1 | 36.8 | |||||||
| DIMENSION(L x W x H) | mm | 3000x1200x2030 | 3100x1200x2030 | |||||||||||
| WHEEL BASE | mm | 1700 | 1820 | |||||||||||
| MIN.GROUND CLEARANCE | MM | 300 | ||||||||||||
| MIN OPERATING TING MASS | kg | 1300 | 1400 | |||||||||||
| TREAD | mm | FRONT TREAD: 1000(1000~1300)ADJUSTABLE REAR TREAD: 1000(1000~1300)ADJUSTABLE | ||||||||||||
| MATCHED POWER | CLUTCH TYPE | / | DRY-TYPE,SINGLE-ACTING | |||||||||||
| ENGINE | / | 3 CYLINDER | 4 CYLINDER | |||||||||||
| RATED SPEED | r/min | 2400 | ||||||||||||
| WORKING PART | GEAR | / | 8F+2R | |||||||||||
| PTO TYPE | / | 6 SPLINE | ||||||||||||
| PTO RATED POWDER | kw | ≥15.7 | ≥18.8 | ≥22.0 | ≥25.0 | ≥28.2 | ≥31.3 | |||||||
| PTO SPEED | r/min | 540/720 | ||||||||||||
| HYDRAULIC SYSTEM | THREE POINT MOUNTING | / | REAR, THREE-POINT SUSPENSION,CAT1 | |||||||||||
| HYDRAULIC OUTPUT | / | 1-WAY VALVE/2-WAY VALVE | ||||||||||||
| HYDRAULIC ADJUSTMENT MODE | / | INNERHYDRAULIC | ||||||||||||
| MAX.LIFTING FORCE AT FRAME CENTER | kn | ≥4.2 | ≥5.0 | ≥5.9 | ≥7.1 | ≥8.0 | ≥8.9 | |||||||
| TIRE | STANDARD TYRE SIZE (FRONT/REAR) | / | 6.5-16/9.5-24 | |||||||||||
| OPTIONAL TYPE | / | 6.5-16/11.2-24 | ||||||||||||
| OPTIONS | AIR BRAKE | / | OPTIONAL | |||||||||||
Iron frame package
8 units in a 40 feet HQ
1.Factory direct sales affordable price
2.Own factory,quality assurance3.Good service
4.Consumable parts are given free of charge
Shandong Ling ke Industry Group Co., Ltd. is a manufacturing enterprise engaged in R&D, production and sales of high-end non-road machinery and equipment.
It was established in 1999. The total planned area of the group is more than 650ha. It is a key investment attraction of the municipal government, a major provincial project, and a priority project for new and old kinetic energy.
Ling ke has always adhered to the two-wheel-driven operation strategy of product management and capital operation, and is committed to creating products with the most three core competitiveness of cost, technology and quality, and has successfully built power machinery, harvesting machinery, construction machinery, financial services, The new pattern of coordinated development of five overseas industrial sectors has formed a complete and competitive industrial chain in the industry.
The annual design and production of 150,000 sets (sets) of mechanical equipment products has exceeded 2 billion yuan in sales revenue in 2020 and is expected to break through 5 billion yuan in 2025.
