LK Series 60-70HP Tractor :
Equipped with Euro V Engine, suitable for the Europe Market
Standard 8+2 synchro shift.more convenient operation.
Side operation more comfortable.
Equiped with built-in Donaldson dry air filter,grammer certified seats.
Passed OECD and EC certification.
| Model | UNIT | TT604 | TT704 | ||||
| DIMENSIONS OF TRACTOR | TYPE | / | DRIVE TYPE(4 x 4) | ||||
| KW | kw | 44.1 | 51.5 | ||||
| DIMENSION(L x W x H) | mm | 3630x 1550x 2370 | |||||
| WHEEL BASE | mm | 1860 | |||||
| MIN.GROUND CLEARANCE | mm | 355 | |||||
| MIN.OPEARTING MASS | Kg | 1780 | 1780 | ||||
| TREAD | mm | FRONT TREAD: 1200(1000~1500)ADJUSTABLE REAR TREAD: 1200(1000~1500)ADJUSTABLE | |||||
| MATCHED POWER | CLUTCH TYPE | / | DRY-TYPE,SINGLE-ACTING | ||||
| ENGINE | / | CHINA EMISSION II 4 CYLIDER | |||||
| RATED SPEED | r/min | 2300 | |||||
| WORKING PART | GEAR | / | 8F+2R | ||||
| PTO TYPE | / | 6 SPLINE | |||||
| PTO RATED POWDER | kw | ≥37.5 | 43.8 | ||||
| PTO SPEED | r/min | 540/720 | |||||
| HYDRAULIC SYSTEM | THREE POINT MOUNTING | / | REAR, THREE-POINT MOUNTING,CAT1 | ||||
| HYDRAULIC OUTPUT | / | SIMPLE VALVE | |||||
| HYDRAULIC ADJUSTMENT MODE | / | FORCED HYDRAULIC SYSTEM, POSITION CONTROL, FLOATING CONTROL | |||||
| MAX.LIFTING FORCE AT FRAME CENTER | kn | ≥10.6 | ≥12.4 | ||||
| TIRE | STANDARD TYRE SIZE (FRONT/REAR) | / | 7.5-16/11.2-28 | ||||
| OPTIONAL TYPE | / | 7.5-20/12.4-28 | |||||
| 7.5-16/11.2-24 | |||||||
| OPTIONS | AIR BRAKE | / | OPTIONAL | ||||
| CABIN | / | OPTIONAL | |||||
Iron frame package
8 units in a 40 feet HQ

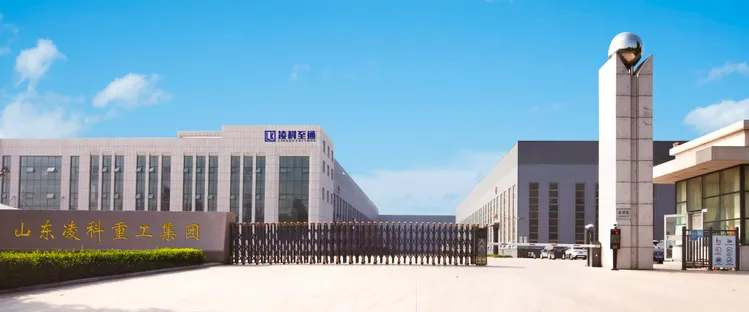

Shandong Ling ke Industry Group Co., Ltd. is a manufacturing enterprise engaged in R&D, production and sales of high-end non-road machinery and equipment.
It was established in 1999. The total planned area of the group is more than 650ha. It is a key investment attraction of the municipal government, a major provincial project, and a priority project for new and old kinetic energy.
Ling ke has always adhered to the two-wheel-driven operation strategy of product management and capital operation, and is committed to creating products with the most three core competitiveness of cost, technology and quality, and has successfully built power machinery, harvesting machinery, construction machinery, financial services, The new pattern of coordinated development of five overseas industrial sectors has formed a complete and competitive industrial chain in the industry.
The annual design and production of 150,000 sets (sets) of mechanical equipment products has exceeded 2 billion yuan in sales revenue in 2020 and is expected to break through 5 billion yuan in 2025.
Question 1: Are you manufacturer? What are your advantages?
Yes. We are manufacturer with more than 10 years' production experience. We provide customer high quality equipment machine products at very reasonable price.
Question 2: Do you accept OEM, ODM order?
Yes. We can customize machines according to customers special requirements.
Question 3: What payment terms do you accept?
TT, LC, etc.,
Question 4: Does your machine have warranty time?
Yes. One Year.
Question 5: What's your Minimum Order Quantity?
Any small order quantity is warmly welcomed.
Question 6: What sea port do you ship at?
Any port of China is OK.
Question 7: Can I get spare parts from your factory?
Yes. We provide spare parts according to your machine needs.
