Jiangsu Huayan has more than 20 years of experience in offering total solutions for special transport. We specialize in designing, manufacturing, and supplying specialized trailers, self-propelled transporters, and other related heavy transport equipment and services all over the world.
With our knowledge, experiences, and high safety and quality standards, we can offer unique products and services with a full range of heavy-haul transportation activities. We can always offer you a safe and cost-effective solution for various unconventional transport jobs. Except for the products themselves, we are also offering all kinds of services related to project logistics.
WE OFFER THE FOLLOWING EQUIPMENT :
- Equipment for Unconventional transport
- Hydraulic Modular trailer
- Gooseneck Flatbed Trailer
- Powder tank trailer
- Wind blade trailer
- Liquid tanker trailer
- Other specialized and customized trailers
WE OFFER THE FOLLOWING SERVICES:
- Services&Solutions for unconventional transport equipment
- One-stop service includes consultation, design, production, training, and operational support for solving your abnormal transport issues.
- Outsourcing of operators is available.
No matter where you are, we ensure access to a diverse selection of specialized transport equipment, delivering cost-effective solutions tailored to your requirements.
Guided by meeting customer needs, the entire vehicle is designed with the concept of lightweight, reduced height, and multi-purpose.
★ Product features
1. The product announcement is complete, with various lengths ranging from 8 meters to 10 meters available;2. Diversified structure, both rectangular and U-shaped compartments can be selected;
3. The vehicle's load-bearing surface is low off the ground and has good operational stability. The rectangular box adopts an embedded longitudinal beam structure to minimize the height of the load-bearing surface from the ground and ensure smooth vehicle operation;
4. The rear end adopts a 4-turn shaft structure, with a copper sleeve embedded inside the shaft sleeve, ensuring smooth and durable lifting.
ALL CAN BE CUSTOMIZED AS REQUESTED, PLEASE CONTACT US
https://jshuayan.en.made-in-china.com/contact-info.html

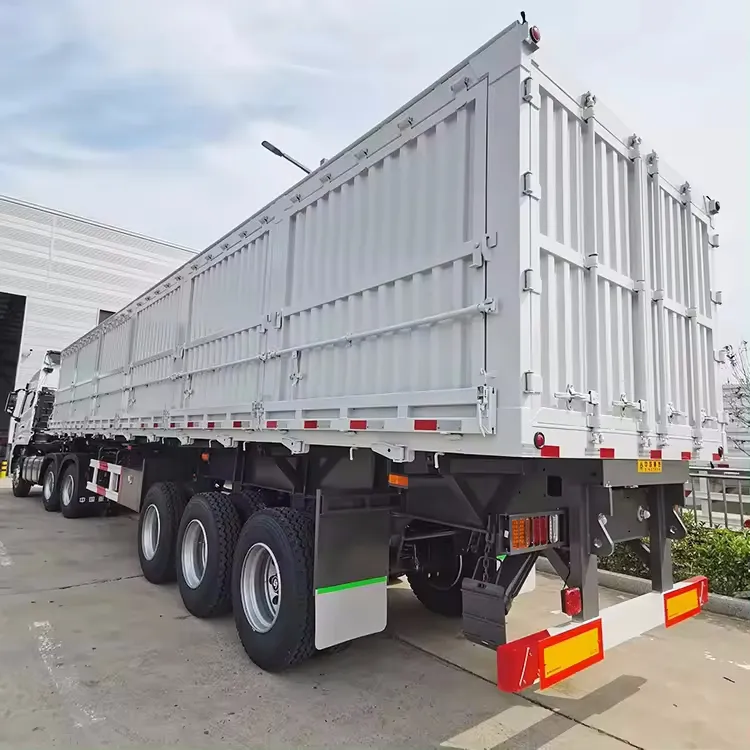

| Rear Tipping Dump Semi Trailer | |||||||
| Transportable goods | gravel, sand | ||||||
| Basic Parameter | load capacity(ton) | 35~40T | 35~40T | 35~40T | 40~45T | 40~45T | 40~45T |
| Announcement type | AKL9405ZZXH | AKL9403 | AKL940 | AKL940 | AKL940 | AKL940 | |
| Length | 7360 | 8500 | 9000 | 9500 | 10000 | 10500 | |
| appearance knot | straight beam | Gooseneck (box straight) | |||||
| traction pin | 50 exchange | ||||||
| Main Structure | Beam | 450*6(12/14) | 500*6(8/10) | 500*6(8/10) | 500*6(10/10 | 500*6(10/10 | 500*6(10/10 |
| Longitudinal beam Height | 240/450 | 260/500 | 260/50 | 260/50 | 260/50 | 260/50 | |
| Retroflexion support | 4 axis flip | ||||||
| Container Structure | Discharge side | Rear unloading | |||||
| Upper side beam | / | 140 rectangular tube | 140 moment | 140 moment | 140 moment | 160 moment | |
| side sill | 160 G-shaped beam | 160 rectangular tube | 160 moment | 160 moment | 160 moment | 160 moment | |
| Side panels | 50*40*1.2 side | 2 Ping Gaoqiang | 2 Pinggao | 3 Pinggao | 3 Pinggao | 3 Pinggao | |
| base plate | 2 Flat high-strength steel | 3 Flat high-strength steel | |||||
| rear door panel | 0.6 corrugated board | 3 Flat high-strength steel | |||||
| Hydraulic System | Oil cylinder spec | Domestic 4TG-E180×5390 | Domestic 5TG-E180 ×6500 | Domestic 5TG-E200 ×6500 | Domestic 5TG-E200 ×6800 | Domestic 5TG-E200 ×7300 | Domestic 5TG-E200 ×7800 |
| Appendix | Spare tire rack | N/A | N/A | 1 pc Bottom-type | |||
| toolbox | N/A | 400*500 | 750*500*500/1 Only | ||||
| rope hook | N/A | round steel, 20 pcs | |||||
| Side protection | carbon steel | ||||||
| rear protection | carbon steel | ||||||
| fender | carbon steel integrated | ||||||
| Outrigger | 24 tons linkage | ||||||
| Electric System | Seven-core plug | Standard seven-hole socket | |||||
| Department of Electrical Engineering | National standard, 24V | ||||||
| lamps | led | ||||||
| Tracheal connection | red and yellow handshake | ||||||
| relay valve | Domestic | ||||||
| ABS | Domestic 4S/2M | ||||||
| sub-pump | Four pairs and two odd | ||||||
| Air tank | Aluminum alloy, 2pcs | ||||||
| Working Mechanism | suspension | Standard steel plate suspension | |||||
| leaf spring | 10 (90*13) | ||||||
| bridge axis | 13T (220 brake pads) Automatic adjustment arm | ||||||
| tire | Factory logo 12R22.5 | ||||||
| steel ring | 9.00×22.5 | ||||||
| Safety Standards | Standard safety configuration and splash-proof standard configuration are simple | ||||||
1. Are you a manufacturer or trading company?
We are a manufacturer and supplier of specialized transport equipment, which offers a one-stop solution for all kinds of difficult transport jobs.
We specialize in special transport vehicles including wind blade trailers, modular trailers, low bed trailers, and flatbed trailers. It can be customized as requested.
3. May I have the best price from you?
Sure. We are always on the way to promoting our product price and service competitive
4. Do you provide a one-stop service so I can save my time and labor?
You will own a professional team in China by cooperating with HUAYAN
5. What's the delivery time?
If the standard models, then we can ship them out within 10 - 15 working days
If special trailers or customized trailers, 25 working days.
6. What's the warranty time?
The ordinary semi-trailer is 10 years old. The heavy-duty trailer and the special trailer warranty time is 8 years.
7. What's your after-sale service?
The after-sale service during the lifetime and the spare parts.
We can provide remote video guidance or door-to-door technical service.
