side curtain trailer
Provided
1 Year
Semi-Trailer
50T
ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
7000-8000mm
1820mm
Heavy Duty
Air Suspension
Van-type
2/3/4
8/12/16
Not Self-dumping
Optional
Steel
New
Side Curtain Semi Trailer
Changda/Fuwa/BPW
Customized
2" / 3.5"
Benchi
Bulk Packaging
13750*2500*4000 Customized
China
8716391000
Product Description

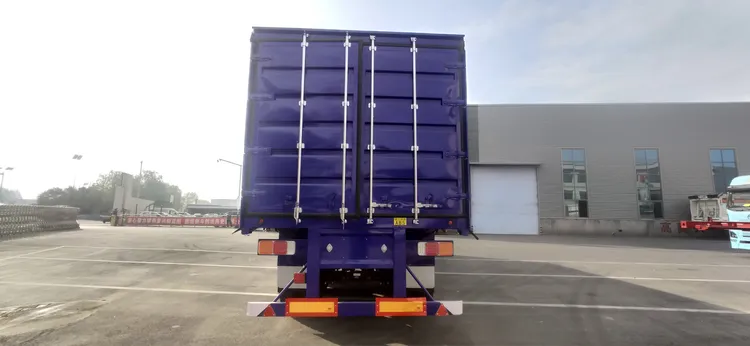

Full new 3 axles 40 tons 50 tons air suspension side curtain truck semi trailer
Curtain-side trailers can load and unload cargo on both sides at the same time, and the loading and unloading efficiency is much higher than that of side-rail or gate-type trailers. The sliding roof can be opened for loading, and heavy goods such as steel coils can be hoisted into the side curtain car by a crane and then fixed.
Curtain-side trucks have almost no choice in the type of goods they transport. LTL, department stores, fruits, vegetables, and trees can basically be transported as long as they can be loaded;
In addition, the curtain fabric around the side curtain trailer is also convenient for printing patterns, which plays an excellent role in promoting the brand image of the transporter.
| Name: | side curtain semi trailer | Tare Weight: | Around 7.5T |
| Spec.: | 13750*2500*4000mm | Axle: | 3 pcs, Changda/FUWA/BPW |
| Main beam: | Height: 500mm, Top flange: 14mm, under flange: 16m, middle flange: 8mm | Leaf spring: | Standard 10pcs |
| Side beam: | Channel steel/ Bending parts | Brake chamber: | standard |
| Cross beam: | Channel steel & Bending parts | Rim: | 9.0*22.5, 12pcs |
| King pin: | 90# & 50# | Tyre: | 12R22.5*12 pcs |
| Suspension: | air suspension | Air tanker: | 3 pcs |
| Floor: | 3mm steel plate/ 28mm wood | Emergency valve: | WABCO |
| Landing gear | 28T | Gas circuit: | &12 red yellow nylon tube |
| Draw plate: | Thickness:10mm | Tool box: | 1pc |
| Tyre carrier: | 1 pcs | Wire tightener: | 24 pcs |
| Leg crank: | 1 pair | Shaft head wrench | 1 pc |
| Electric system: | Voltage: 24V, socket: in line with the Chinese national standard seven-core socket, LED lights, wiring harness: 7-core waterproof wiring harness. | ||
| Payload: | 50T | Paint: | One anti-rust paint, one polyurethane, wax spray |
1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketing for over 40 years.2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries etc.
3. What information should I let you know if I want to get a quotation?
Please let us know your purpose, road condition, cargo type, tons of your cargo, dimensions of the trailer, quantity etc. The more info you provide, the more accurate model and the price you will get.
4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
5. How can I get the price of your vehicle?
You can connect with us through any contact information. Our personalized service person will respond to you within 24 hours.
If you are interested in our this product or other products, welcome to contact us!
