JAC130HP factory direct sales refrigerated transport truck 18m3 food refrigerated box truck
A refrigerated truck, also known as a refrigerated truck, insulated truck, fresh-keeping truck, or refrigeration truck, is a closed box transport vehicle used to transport frozen or fresh-keeping goods. It is a refrigeration device equipped with a refrigeration unit and a polyurethane insulated compartment for refrigerated transportation. It is commonly used for transporting frozen food (refrigerated trucks), dairy products (dairy transport vehicles), vegetables and fruits (fresh goods transport vehicles), drugs (transport vehicles), aquatic products, tobacco, express delivery, postal services, supermarkets, home furnishings, logistics, and so on. The refrigerated truck is composed of the walking part of the special vehicle chassis, the insulated and insulated compartment body (usually composed of polyurethane material, fiberglass, color steel plate, stainless steel, etc.), the refrigeration unit, the temperature recorder inside the compartment, and other components. For vehicles with special requirements, such as meat hook cars, optional parts such as meat hook, waist, aluminum alloy guide rail, ventilation groove, etc. can be added.
JAC130HP factory direct sales refrigerated transport truck 18m3 food refrigerated box truck

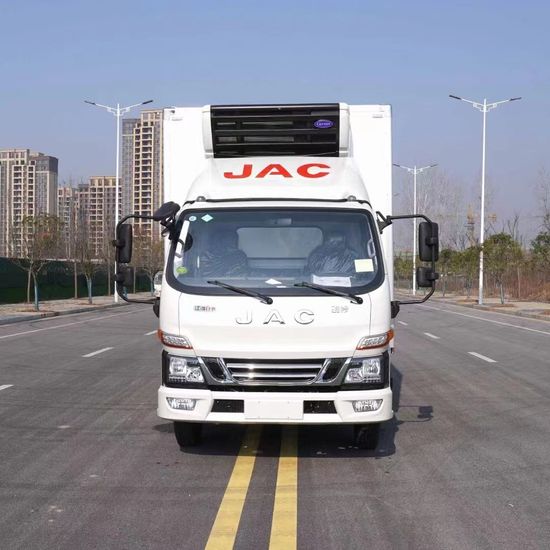

Chinese JAC refrigerated truck, overall size: 5995 x 2310 x 3300 (mm)
Box size: 4015 x 2100 x 210 mm Isuzu 130 horsepower, 2499HP
Star Rui 6-speed transmission, 2.5L engine, 3-seater, 4.5-ton rear axle, 7.00R16 tires, air brake, pneumatic drum type, electric doors and windows, central lock, remote key, multifunctional steering wheel, original air conditioning, electrically heated rearview mirror, 24V dual battery wheelbase: 3365mm It is a food transport vehicle with high cost-effectiveness
Upper configuration
(1) Production process: The box body is manufactured using a vacuum adsorption and hydraulic adsorption integrated production line, with sandwich composite bonding and insulation performance meeting the national A-level standard. All connections are made with bolts.
(2) Box panel material: The inner and outer wall panels are made of high-quality domestic fiberglass (non absorbent, good insulation, strong hardness, and antioxidant); The intermediate insulation layer is XPS extruded polystyrene board, with a thickness of 8cm for the side and top plates of the compartment and a thickness of 9cm for the bottom plate. The high-strength skeleton is reasonably distributed inside the compartment.
(3) Car body accessories: aluminum alloy edges around the car body, stainless steel corners, stainless steel door lock hinges, stainless steel door frames and hinges, energy-saving LED lighting inside the car body.
(4) Upgrade configuration: electrophoretic paint for the auxiliary beam bumper, 30cm high anti-collision plate inside the cabin, five tooth sealing strip with aluminum alloy pressure strips inside and outside.
Refrigerator: Paixin Kelly 580 Refrigerator, Domestic Refrigerator, Imported Refrigerator
Additional configuration: meat hook guide rail, ventilation slot, card slot, backup power.
| Name | JAC4.2m refrigerated truck |
| Dimension(LxWxH) | 5995*2310*3300(mm) |
| Total Mass | 4495kg |
| Rated Payload | 1090kg |
| Curb Weight | 3200KG |
| Passenger | 3 |
| The Parameters of Chassis | |
| Manufacturer/Model | Sinotruk JAC |
| Driving Type | 4*2 |
| Wheel Base | 3280mm |
| Gearbox | 6-speed transmission |
| Tire | 7.00R16 |
| The Number of Tire | 6+1(spare tire) |
| The Parameters of Engine | |
| Manufacturer/Model | JE493ZLQ6M |
| Rated Power | 130hp/95kw |
| Fuel Type | Diesel |
| Displacement/Capacity | 3365ml |
| Emission Standards | Euro 2 |
| The Parameters of Equipment | |
| Color option | Customizable |
| Function | Transporting frozen food, dairy products, vegetables, fruit vaccine medicine etc. |
| Materials | Stainless steel, glass fiber reinforced plastics, aluminum alloy, or color steel plate, etc. with PU, etc. sandwiched. |
| Wagon Thickness | 50-60cmb |
| Lowest Refrigeration Temperature(ºC) | -16 degree |
Welcome to Hubei Jinli Special Vehicle Co., Ltd.
We are located in Suizhou, Hubei, the capital of special vehicles, providing a wide range of professional solutions for various industries. Our services include: (production and manufacturing of garbage trucks, sprinkler trucks, refrigerated trucks, dump trucks, box trucks, on-board cranes, high-altitude work vehicles, etc.)
It will benefit our close ties with the "the Belt and Road" countries and ensure reliable and efficient cooperation. We focus on professional quality and dedicated service, winning the trust and praise of all partners.
Advanced Cooling System Refrigerated Truck

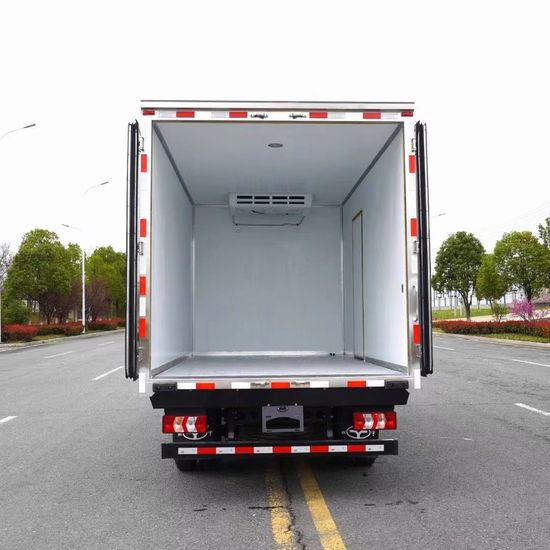

The box body adopts advanced and latest wooden craftsmanship, broken bridge insulation technology, fiberglass inside and outside the box body, deeply embedded bolts, and seamless synthesis using large hot pressing equipment. It is formed in one go, with fast cooling speed, slow temperature dissipation, and good insulation effect. The box board is connected by a galvanized pipe skeleton and environmentally friendly waterproof wooden board with screws. The middle is filled with 8cm insulation board, and the bottom plate is made of 10cm thick durable thickened plate with seismic insulation. The sides of the box body are wrapped with right angle aluminum profiles, and the rear door is equipped with stainless steel locks. A single side door is opened, with a 30cm apron, stainless steel ladder, and toolbox. The rest are standard.
Product Description:
- Quality Assurance: Our factory's trucks are ISO9001:2008 certified and come with relevant certificates such as CCC, B&V. The chassis and accessories are sourced from original factories with anti-counterfeiting labels.
- Years of Experience: With nearly 5 years in the industry, our company excels in after-sales service, ensuring prompt production and delivery within 15 working days. We offer a one-year after-sales service guarantee.
- Price Advantage: Partnered with renowned chassis suppliers like China National Heavy Duty Truck, Dongfeng, Foton, FAW Group, Jianghuai, we offer competitive prices without compromising on quality.
- Price Terms: FOB, CIF
- Payment: 30% deposit upon order confirmation, 70% balance before shipment. Payment methods accepted: T/T, L/C.
- Delivery Time: Products will be delivered within 25 working days upon receiving payment.
Company Name: Hubei Jinli Special Vehicle Co., Ltd
