CLW 5070ZWX6BHQ
Free Guarantee for 1year
Free Technoplogy Service for 10000km
ISO9000, CCC, TS16949, EPA, EEC
Euro 2
4t
Manual
Diesel
4000L
4x2
126HP
New
CLW
Naked or Waxed Before on Board
5600× 2050× 2350
China
8704230090
Product Description

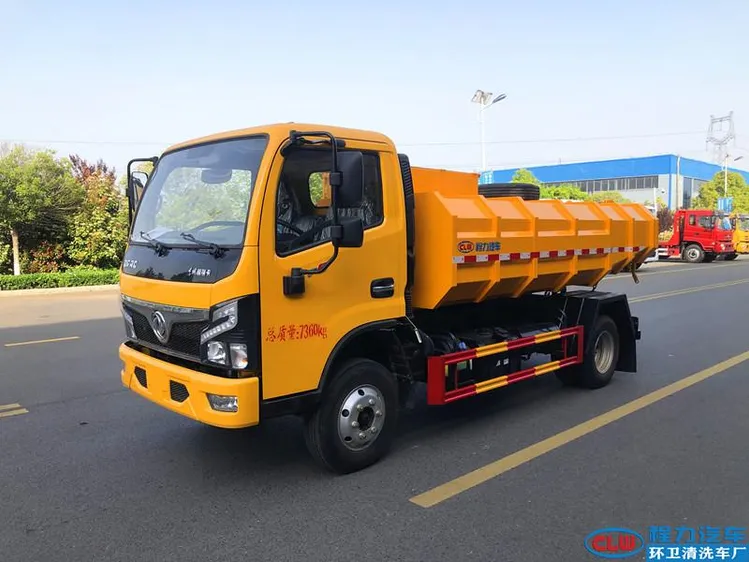

DONGFENG 4x2 4000liters Sludge dump Truck
| DONFENG 4x2 sludge dump Truck | |||
| Condition | 4X2,New Condition, LHD | ||
Chassis | Country of Original | China | |
| Manufacturer | CLW Group, China | ||
| Brand | DONGFENG | ||
| Overall Dimension(mm) | 5600 x 2050 x 2350mm | ||
| Wheelbase(mm) | 3308 | ||
| Curb weight(kg) | 3860kg | ||
| Loading Volume | 4cbm | ||
| Approach/departure angle(°) | 28/18 degree | ||
| Front /rear overhang(mm) | 1055/1040 mm | ||
| Wheel truck(front /rear)(mm) | 1525/1489mm | ||
| Max driving speed(km/h) | 110 km/h | ||
| Steering gear | Power steering | ||
| Tire | Quantity | 5pcs with one spare tire | |
| Specification | 7.00R16 | ||
| Transmission | Manual type;5 Forward Gear, 1 Backward Gear | ||
| Cab | A/C installed ,one row and a half ,two door | ||
| Engine | Brand | YCY30165-60/D30TCIFI | |
| Fuel type | Diesel | ||
| Displacement(ml) | 1257 | ||
| Power(kw) | 103KW | ||
| Horsepower(hp) | 135HP | ||
| Maximum torque | 500N.M | ||
| Intake form | Four cylinder in line, water cooling, four stroke, pressurized medium - cooling, direct injection | ||
| Emission standard | Euro2 | ||
| Tank volume | |||
| Tanker | Capacity | 4cubic meters,4000liters | |
| Material | Q235 high tension steel, 6mm Tank body and End Plate, | ||
| Dumping System | Middle Tipper | Hydraulic Controlled Rear Door and Middle lifting. | |
| Rear Door | Hydraulic controlled with sewage drain pipe | ||
| Pump | |||
| Pump System | |||
| Vacuum Pressure | |||
| Sewage Pipe | |||
| Other Parts | Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device | ||
custom -made model- Special customized service for you
PRODUCT SHIPPING (RORO OR BULK SHIP)
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
FAQ
1.You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile . And you are always welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.
5. How long could we receive our goods?
It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.
6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person
