Stainless steel Brake Lines
24hours Service
1 Year
Brake Hose
Steel
Front
ISO/TS16949, ISO13485, ISO14001, IATF-16949, ISO9001, DOT, FSC, HACCP
Disc
Brake Drum
South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market, All Over The World
Automobile Parts Braided Stainless Steel Truck Ca
PTFE Inner Tube Brake Line
304 Stainless Steel Wire Braided
400mm, 500mm, 650mm, 750mm, 1000, 1650mm....
QDGY
Packed in Plastic Bags Into Carton Into Pallet
3.2X7.5MM 1/8 size brake hose
Qingdao, China
8708309990
Product Description
High Performance dot Federal Motor Vehicle Safety Standards Automobile Parts Braided Stainless Steel Truck Car Motorcycle PTFE Flexible Brake Pipe Hose Line
Hydraulic Brake Line Stainless Steel Braided (Various Lengths) can chose
Braided Brake Lines: Advantages
Lots of drivers of high performance vehicles like steel braided brake lines for a couple of reasons. Off-road drivers appreciate that it's harder for stray objects to puncture the braided brake line designs. Another feature that is prized by all kinds of drivers is that braided brake lines are subject to less of a bulge when pressure is placed on them. In a braking situation, brake lines bulge under pressure. Less bulge is better than more, because it helps to retain the integrity of the line. That's why some racing cars and other vehicles carry steel braided brake lines as opposed to standard lines.Stainless steel hydraulic brake lines provide an advance way to pump fluid from your trailer coupling to the brakes. They great for boat trailers that often travel in water and last much long than traditional plastic and copper lines.
Our stainless steel braided brake lines are compatible with all brake fluids and are D.O.T. approved for street applications. Each brake hose assembly we make is tested to 3,000 PSI to make sure it is safe to install on your vehicle. Plus you get to choose your desired color - black, silver, red or blue.
We not only replace the OEM rubber brake hoses with stainless steel braided lines, we can custom make any brake or clutch hose to your specifications. If your vehicle is modified and the original OEM brake hoses do not fit, QDGY is your place to get your custom brake hoses. How much can you expect to pay? Far less than a dealer's price.
Our offering is not limited to just cars and motorcycles - if it has hydraulic brakes, we can make a brake hose assembly for it. We can fabricate brake lines for your trucks, ATVs, rock crawlers, go-carts or any other vehicle.
| Inner layer | PTFE |
| Enhancement layer | stainless steel wire braid ( AISI Steel 304 316 ) |
| Outer layer | PVC, PU(black, red, blue, yellow, purple, clear, gray, orange, ect.) |
| Temperature range | −65ºC ~ +260ºC |
| Product performance | high temperature resistance,low temperature resistance,long lasting and good durabilityacid and alkali resistance,ozone resistance, low coefficient,anti friction, long using life and non-aging |
| Purpose | widely used in Automotive, Bicycle, Motorcycle, Racing, Brake Lines, Clutch Lines,Fuel Systems, Turbo oil feed Hose, Coolant Systems, Oil Pressure Systems Gauge lines & Power Steering |
| Compatibility | Brake Fluids, Unleaded Petrol, Methanol, Water, & Oil. Ideal for use with Unleaded fuel, ect. |

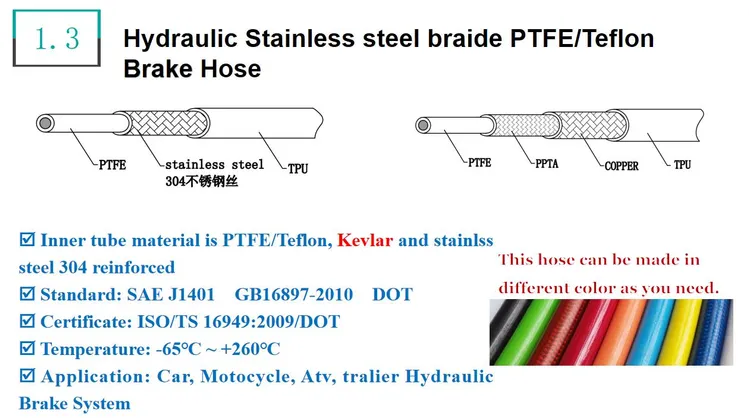

High Pressure DOT approved SAE J1401 Black Cover 1/8 3/16 1/4 Flexible Stainless Steel Braided PTFE Brake Hose Line
High Pressure Heat Resistant Stainless Steel Wire Braided PTFE Hose
Stainless Steel Wire Braided PTFE Hose Features:
• Sizes 1/8,3/16 1/4" I.D. up to 1" I.D.
• Proprietary Core Tube Manufacturing Process - Yields a uniform wall thickness, promoting even distribution of stress during flexing and reduces concentrated residual stress
• Maintains its integrity up to 260ºC
• Zero permeation
• Leak-free fitting weld connection
Wide Temperature Compatibility
Chemical Resistance
Flex & Shock Resistance
Steam Compatibility
Non-Contaminating
High Flow Rate
Lightweight
Resists Deterioration
| QDGY Part NO. | Inner Diameter | Outer Diameter | Outer layer | Stainless steel braid | Inner layer |
| GSG020 | 1/8"(3.2mm) | 0.275"(7.5mm) | PVVC | 304 stainless steel | PTFE |
| GSG026 | 3/16"(4.8mm) | 0.0.374(9.5mm) | |||
| GSG028 | 1/8"(3.2mm) | 0.255"(6.5mm) | no covering | ||
| GSG024 | 3/16"(4.8mm) | 0.3"(7.6mm) |
Stainless stee
l braided PTFE brake hose Features
- 304 stainless steel braid reinforced hose
- Meets FMVSS-106 and SAE J1401 specifications
- Every brake hose pressure tested to 3000 psi( 207 bar or 20.7Mpa )
- Burst pressure:minimum 7250 psi ( 500 bar or 50Mpa )
- Temperature range -73°C to 232°C
- Compatible with DOT3,DOT4 and DOT4+ brake fluides
Stainless Steel Braided PTFE Hose AN3,AN4,AN6,AN8,AN10,AN12,AN16
Hydraulic Stainless steel braided PTFE Brake Hose Size List| Hydraulic Brake Hose Size List | |||||||
| SN. | Inch | Specification MM | I.D MM | O.D MM | Thickness MM | Wall Diff. MM | Burst Pressure Min.PSI. |
| AN3 | 1/8 | 3.2×6.5 | 3.30±0.20 | 6.50±0.30 | 1.60 | 0.25 | 12000 |
| AN3 | 1/8 | 3.2×7.5 | 3.30±0.20 | 7.50±0.30 | 2.00 | 0.25 | 12000 |
| AN3 Kevlar | 1/8 | 3.2×8.0 | 3.30±0.20 | 8.0±0.30 | 2.35 | 0.25 | 12000 |
| AN4 | 3/16 | 4.8×8.0 | 4.80±0.20 | 8.0±0.30 | 1.6 | 0.25 | 12000 |
| AN4 | 3/16 | 4.8×9 | 4.80±0.20 | 9±0.50 | 2.1 | 0.3 | 12000 |
| 1/4 | 6.3x15.0 | 6.3±0.20 | 15.0±0.30 | 7.35 | 0.3 | 12000 | |
| AN6 | 21/64 | 8.13x11.0 | 8.13±0.2 | 11.0±0.3 | 1.5 | 0.2 | 10000 |
all we have .
QDGY founded at 1998, the Co. has been expanded to the leading brake hose manufacturer in China now. It has more than 300 staff, buildings occupying area about 6,000 square meters . The sections include Marketing Department, Hose Factory and Fitting Factory.
Our QDGY brake hose, hose assembly and fittings are manufactured with variety of superior materials to meet varied requirements of Automobile and Motorcycle Industry especially in aftermarket even OEM market. Now our products 90% are being regularly exported to Europe, U.S.A., South East Asia, altogether over 56 countries and win a high reputation and honor for us.
Q1: Waht kinds of main hose can product?
A: Rubber brake hose,EPDM brake hose,Hydraulic brake hose,Hydraulic hose,water hose,fuel& oil hose,Brake hose,Stem hose,SAE J1401 brake hose,DOT 1/8" brake hose,OE No. brake hose,Flexible brake hose,Performance competition brake hose...
Q2: What size of brake hose can you supply?
A: common size: 3.2x10.5mm(1/8");4.8x12.5mm(3/16")
Special size: 3.2x11mm...or your request size
Q3: Can you print the words(line) as our requirement?
A: Yes,we do provide embossed and printing marking with different color ,as your requirement.
Q4: What kinds of fitting can product?
A: All kinds.Female fitting,male fitting,banjo fitting,adepter brake hose fitting,bolts and nuts,steel with zinc ,chrome,nickle...stainless steel,brass...
Q5: How many types of brake hose do you product?
A: Brake hose,stainless braided brake hose,PTFE stainless steel braided brake line,Steel tube,Bundy tube,Steel tube assembly,Brake hose assembly...
Q6: What is my order's delivery date?
A: It usually takes 5-40 days,which generally depends on your order quantity and our storage.Details information ,kindly please feel free to contact with us,or visit our website contact with us,we will reply you within 24 hours.
Q1.Are you a manufacturer or trading company?
We are a professional manufacturer specialized in pipe line industry .
Q2: Waht kinds of main hose can product?
A: Rubber brake hose,EPDM brake hose,Hydraulic brake hose,Hydraulic hose,water hose,fuel& oil hose,Brake hose,Stem hose,SAE J1401 brake hose,DOT 1/8" brake hose,stainless steel braided brake hose,PTFE brake hose,PTFE s.s braided brake hose,OE No. brake hose,Flexible brake hose,Performance competition brake hose...
Q3: Can you print the words(line) as our requirement?
A: Yes,we do provide embossed and printing marking with different color ,as your requirement.
Q4: What kinds of fitting can product?
A: All kinds.Female fitting,male fitting,banjo fitting,adepter brake hose fitting,bolts and nuts,steel with zinc ,chrome,nickle...stainless steel,brass...
Q5: How many types of brake hose do you product?
A: Brake hose,Teflon braided brake hose,PTFE stainless steel braided brake line,Steel tube,Bundy tube,Steel tube assembly,Brake hose assembly...
Q6. How to order?
1.If you are interested in our products ,pls tell us which type and quantity you need .
2.We will quote for you according to the requirement .
3.When you confirm ,perform invoice will be send you.
4.We will produce ASAP when received your deposit .
5.Deliver the products when finish producing .
Q7: What is my order's delivery date?
A: It usually takes 5-40 days,which generally depends on your order quantity and our storage.Details information ,kindly please feel free to contact with us,or visit our website contact with us,we will reply you within 24 hours.
Q8. After sale service.
Follow status up time by time until the products arrival ,and try our best to solve any problems you mentioned.
